Phoenix Contact 1709283 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1709283 is a 4-position terminal block plug with male pins, 0.300" (7.62mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 8-24 AWG (0.2-10mm²). The part is currently classified as obsolete, making identification of compatible substitutes essential for ongoing system maintenance and component procurement.

Key Parameters

Parameter	Value
Manufacturer Part Number	1709283
Manufacturer	Phoenix Contact
Category	Terminal Blocks
Series	COMBICON IPC
Type	Plug, Male Pins
Number of Positions	4
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)
Current Rating (IEC)	41A
Voltage Rating (IEC)	1 kV
Current Rating (UL)	41A
Voltage Rating (UL)	600V
Wire Gauge Range	8-24 AWG (0.2-10mm²)
Color	Green
Contact Mating Finish	Tin
Housing Material	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0
Screw Size	M3
Torque Specification	0.7-0.8 Nm (6.2-7.1 Lb-In)
Wire Strip Length	10mm
Insulation Height	0.902" (22.90mm)
RoHS Status	RoHS Compliant
MSL Rating	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1709283 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility: Current rating (41A IEC/UL), voltage rating (1 kV IEC / 600V UL)
Physical Compatibility: 4-position configuration, 0.300" (7.62mm) pitch, 180° wire entry orientation
Mechanical Compatibility: Screw-type rising cage clamp termination, free-hanging in-line mounting, M3 screw size with 0.7-0.8 Nm torque specification
Material & Safety Compliance: Polyamide housing, UL94 V-0 flammability rating, tin contact finish
Wire Compatibility: Support for 8-24 AWG (0.2-10mm²) wire gauge range

The substitute part must maintain all these parameters without deviation to ensure direct functional and mechanical interchangeability.

Parameter Comparison

Parameter	1709283 (Main Part)	1718287 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Series	COMBICON IPC	COMBICON IPC
Type	Plug, Male Pins	Plug, Male Pins
Number of Positions	4	4
Pitch	0.300" (7.62mm)	0.300" (7.62mm)
Plug Wire Entry	180°	180°
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Current Rating (IEC)	41A	41A
Voltage Rating (IEC)	1 kV	1 kV
Current Rating (UL)	41A	41A
Voltage Rating (UL)	600V	600V
Wire Gauge Range	8-24 AWG (0.2-10mm²)	8-24 AWG (0.2-10mm²)
Color	Green	Green
Contact Mating Finish	Tin	Tin
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Flammability Rating	UL94 V-0	UL94 V-0
Screw Size	M3	M3
Torque Specification	0.7-0.8 Nm (6.2-7.1 Lb-In)	0.7-0.8 Nm (6.2-7.1 Lb-In)
Wire Strip Length	10mm	10mm
Insulation Height	0.902" (22.90mm)	0.902" (22.90mm)
RoHS Status	RoHS Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active
Features	Mating Flange	Latch Lock

Engineering Selection Recommendations

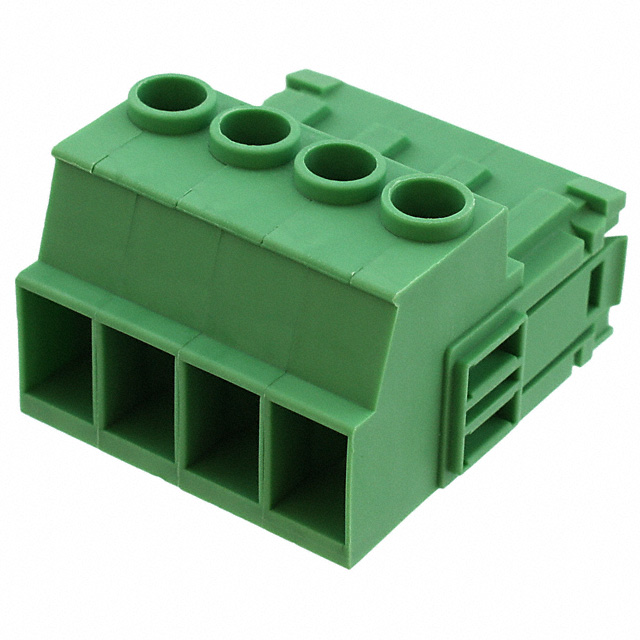

The Phoenix Contact 1718287 is a direct functional equivalent to the obsolete 1709283 model. Both components share identical electrical ratings, mechanical dimensions, pitch specifications, and termination methods. The 1718287 maintains full compatibility across all critical parameters required for interchangeability.

The primary distinction between these parts is product status: the 1709283 is obsolete, while the 1718287 is active and currently in production. The 1718287 also carries ROHS3 compliance certification, providing enhanced regulatory alignment for new designs and ongoing procurement. Both parts maintain equivalent RoHS compliance and MSL ratings.

Minor feature differences exist: the 1709283 includes a mating flange, while the 1718287 features a latch lock mechanism. These design variations do not affect electrical or mechanical compatibility and represent design evolution within the COMBICON IPC series.

For applications currently using the 1709283, direct substitution with the 1718287 is supported without modification to connector interfaces, wire termination procedures, or electrical specifications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1718287 directly replace the 1709283 in existing installations?

A: Yes. Both components maintain identical pitch (0.300" / 7.62mm), position count (4), wire entry angle (180°), electrical ratings (41A / 1 kV IEC, 41A / 600V UL), and termination method (screw-type rising cage clamp). Physical and electrical interchangeability is complete.

Q: What is the significance of the feature difference between mating flange and latch lock?

A: The mating flange on the 1709283 and latch lock on the 1718287 represent design variations within the COMBICON IPC series. These features do not affect core electrical performance or mechanical compatibility. Selection between these features depends on specific application requirements for connector retention and mating interface design.

Q: Does the ROHS3 compliance of the 1718287 affect compatibility with systems designed for the RoHS-compliant 1709283?

A: No. ROHS3 compliance is a superset of RoHS compliance, indicating enhanced regulatory adherence. The 1718287 is fully compatible with all applications previously using the 1709283.

Q: Are there any wire gauge or termination differences between these parts?

A: No. Both components support identical wire gauge ranges (8-24 AWG / 0.2-10mm²), screw size (M3), torque specification (0.7-0.8 Nm), and wire strip length (10mm).

Q: What packaging options are available for the 1718287?

A: The 1718287 is supplied in bulk packaging, compared to the original packaging specification for the 1709283.
