Phoenix Contact 1709267 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

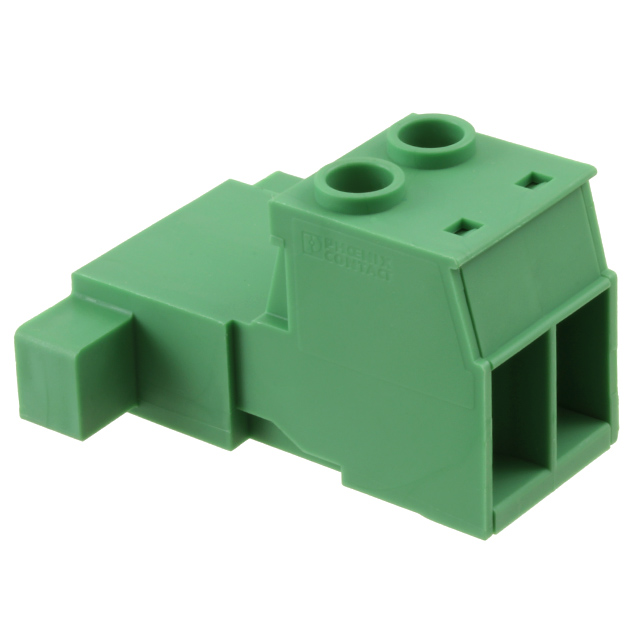

The Phoenix Contact 1709267 is a 2-position terminal block plug with male pins, 0.300" (7.62mm) pitch, designed for 180° free-hanging in-line applications. This component features screw-type rising cage clamp termination and supports wire gauges from 8-24 AWG (0.2-10mm²). The part is currently classified as obsolete, making identification of compatible substitutes essential for ongoing system maintenance and component sourcing.

Substiute Parts

1709267

Phoenix ContactIn Stock: 7771709267 Datasheet

Current PartRFQ

1718261

Phoenix ContactIn Stock: 12361718261 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1709267 is determined by strict equivalence across the following critical parameters:

• Electrical Compatibility: Current rating (41A IEC), voltage rating (1 kV IEC), and wire gauge capacity (8-24 AWG / 0.2-10mm²) must match exactly
• Mechanical Compatibility: Pitch (0.300" / 7.62mm), number of positions (2), plug wire entry angle (180°), and mounting type (free hanging in-line) must be identical
• Termination Method: Screw-type rising cage clamp termination is required
• Material & Safety: Polyamide housing with UL94 V-0 flammability rating and M3 screw specification must be maintained
• Compliance: RoHS compliance status must be equivalent or superior

Only components meeting all these criteria are considered direct substitutes.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1718261 is a direct functional equivalent to the 1709267. Both components are manufactured by Phoenix Contact within the COMBICON IPC series and share identical electrical ratings, mechanical dimensions, and termination specifications.

The primary distinction is product status: the 1709267 is obsolete, while the 1718261 is active. This status difference, combined with the 1718261's superior availability (1143 pcs in stock versus 717 pcs for the obsolete part), establishes the 1718261 as the recommended substitute for new designs and ongoing system maintenance.

Both parts maintain RoHS compliance and UL94 V-0 flammability certification, ensuring regulatory equivalence. The identical screw torque specification (0.7-0.8 Nm) and M3 fastener sizing confirm mechanical interchangeability without modification to existing mounting infrastructure.

Frequently Asked Questions (FAQ)

Q: Can the 1718261 be used as a direct replacement for the 1709267 in existing installations?

A: Yes. The 1718261 is electrically and mechanically equivalent across all specified parameters. No circuit modifications or mechanical adaptations are required.

Q: What is the difference between these two parts?

A: The primary difference is product status. The 1709267 is obsolete, while the 1718261 is active. Both share identical electrical ratings (41A at 1 kV), mechanical pitch (7.62mm), wire gauge capacity (8-24 AWG), and termination method (screw-type rising cage clamp).

Q: Are there packaging differences between these parts?

A: Yes. The 1709267 is supplied without specified packaging, while the 1718261 is supplied in bulk packaging. This does not affect electrical or mechanical performance.

Q: Do both parts support the same wire gauge range?

A: Yes. Both the 1709267 and 1718261 accept wire gauges from 8-24 AWG (0.2-10mm²) with identical screw torque specifications of 0.7-0.8 Nm.

Q: Are both parts RoHS compliant?

A: Yes. Both components are RoHS compliant and carry UL94 V-0 flammability certification.

Q: What is the significance of the "Latch Lock" feature listed for the 1718261?

A: The 1718261 includes a latch lock feature, while the 1709267 includes a mating flange. Both are mechanical retention features that do not affect electrical compatibility or wire termination capacity.
