Phoenix Contact 1707502 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1707502 is a 10-position vertical terminal block header with 0.150" (3.81mm) pitch, designed for through-hole solder mounting. This component belongs to the COMBICON MCV series and is classified as active product status. The part features male pins with 4-side shrouding, rated for 8A at 250V (IEC) and 8A at 300V (UL), with UL94 V-0 flammability rating and RoHS compliance. Equivalent substitute parts are necessary for supply chain continuity, design flexibility, or when the primary part becomes unavailable.

Key Parameters

Parameter	Value
Number of Positions	10
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Type	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole
Termination Style	Solder
Current Rating (UL)	8A
Voltage Rating (UL)	300V
Material Flammability	UL94 V-0
RoHS Status	RoHS Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1707502 is determined by strict alignment of the following parameters:

Position Count & Pitch: All substitutes must have exactly 10 positions at 0.150" (3.81mm) pitch
Connector Type & Orientation: Header configuration with male pins, 4-side shrouding, vertical orientation
Mounting & Termination: Through-hole solder mounting required
Electrical Ratings: Minimum UL ratings of 8A at 300V
Flammability & Compliance: UL94 V-0 material rating and RoHS compliance required
Moisture Sensitivity: MSL 1 (Unlimited) classification

The four substitute parts listed below meet these core substitution criteria while maintaining functional and electrical equivalence.

Parameter Comparison

Parameter	Phoenix Contact 1707502	Molex 0395116010	TE Connectivity 1-284517-0	Amphenol Anytek OQ1032500000G	On Shore OSTOQ103250
Manufacturer	Phoenix Contact	Molex	TE Connectivity	Amphenol Anytek	On Shore Technology
Number of Positions	10	10	10	10	10
Pitch	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.150" (3.81mm)
Header Orientation	Vertical	Vertical	Vertical	Vertical	Vertical
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Solder
Termination Style	Solder	Solder	Solder	Solder	Not Specified
Current Rating (UL)	8A	8A	11A	10A	Not Specified
Voltage Rating (UL)	300V	300V	300V	300V	300V
Contact Mating Finish	Tin	Tin	Tin	Tin	Tin
Material Flammability	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	Not Specified
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Operating Temperature	Not Specified	-40°C ~ 105°C	-40°C ~ 110°C	-40°C ~ 115°C	-30°C ~ 105°C
Insulation Height	0.362" (9.20mm)	0.360" (9.14mm)	0.362" (9.20mm)	0.362" (9.20mm)	0.138" (4.60mm)

Engineering Selection Recommendations

All four substitute parts maintain active product status and meet the core electrical and mechanical requirements of the Phoenix Contact 1707502. Selection among substitutes should be based on the following factors:

Molex 0395116010: Maintains identical electrical ratings (8A at 300V) and insulation height (0.360" vs. 0.362"). ROHS3 compliant with operating temperature range of -40°C to 105°C. Suitable for direct replacement in standard applications.

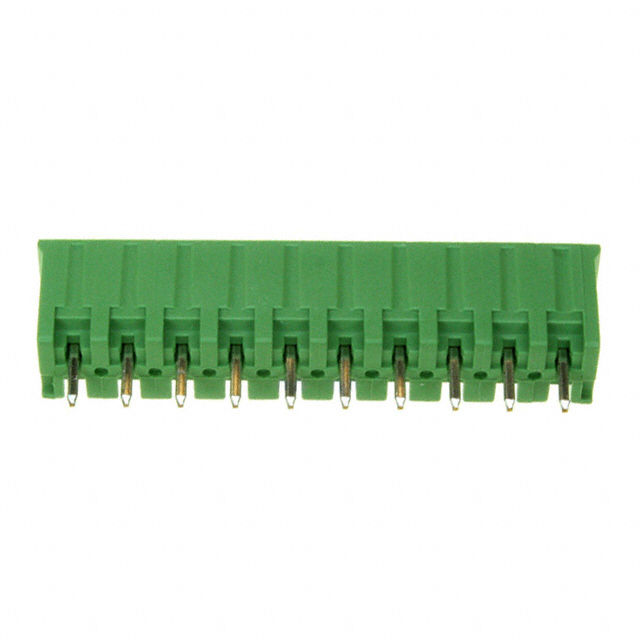

TE Connectivity 1-284517-0: Offers higher current capacity (11A at 300V) and extended operating temperature range (-40°C to 110°C). Insulation height matches the primary part (0.362"). ROHS3 compliant. Appropriate for applications requiring enhanced thermal performance.

Amphenol Anytek OQ1032500000G: Provides 10A current rating at 300V with the widest operating temperature range (-40°C to 115°C). Insulation height matches primary part (0.362"). ROHS3 compliant with highest inventory availability. Suitable for demanding thermal environments.

On Shore Technology OSTOQ103250: Meets 300V voltage requirement with -30°C to 105°C operating range. Insulation height specification (0.138") differs significantly from primary part. Flammability rating and current specification not provided. Use only when other substitutes are unavailable.

Frequently Asked Questions (FAQ)

Q: Can these substitute parts be used interchangeably with the Phoenix Contact 1707502?

A: Yes, all four substitute parts share the same 10-position, 0.150" (3.81mm) pitch vertical header configuration with male pins and 4-side shrouding. They are electrically and mechanically compatible for through-hole solder mounting applications. However, verify insulation height and operating temperature requirements for your specific application.

Q: What is the primary difference between the substitute parts?

A: The main differences are current ratings (8A to 11A), operating temperature ranges (-30°C to 115°C), and insulation height specifications. The TE Connectivity and Amphenol Anytek parts offer higher current capacity and wider temperature ranges. The On Shore part has a significantly lower insulation height (0.138" vs. 0.362") and incomplete specification data.

Q: Are all substitutes RoHS compliant?

A: Yes, all substitute parts carry ROHS3 compliance status, meeting current environmental regulations. The primary Phoenix Contact part is RoHS Compliant.

Q: Which substitute offers the best thermal performance?

A: The Amphenol Anytek OQ1032500000G provides the widest operating temperature range (-40°C to 115°C) and highest current rating (10A), making it suitable for thermally demanding applications.

Q: What is the MSL rating for these parts?

A: All parts, including the primary Phoenix Contact 1707502 and all substitutes, carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity limitations for storage and handling.

Q: Can I use the On Shore OSTOQ103250 as a direct replacement?

A: The On Shore part meets the 300V voltage requirement and 10-position configuration. However, its insulation height (0.138") is significantly lower than the primary part (0.362"), and critical specifications including flammability rating and current capacity are not provided. Use only when other substitutes are unavailable and mechanical fit is confirmed.
