Phoenix Contact 1705692 Terminal Block - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1705692 is a 6-position wire-to-board terminal block with horizontal mating orientation and 3.81mm pitch, designed for through-hole PCB mounting. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications. The part operates at 10A current capacity and 300V voltage rating with screw-based rising cage clamp termination suitable for 14-30 AWG wire gauges.

Substiute Parts

1705692

Phoenix ContactIn Stock: 7221705692 Datasheet

Current PartRFQ

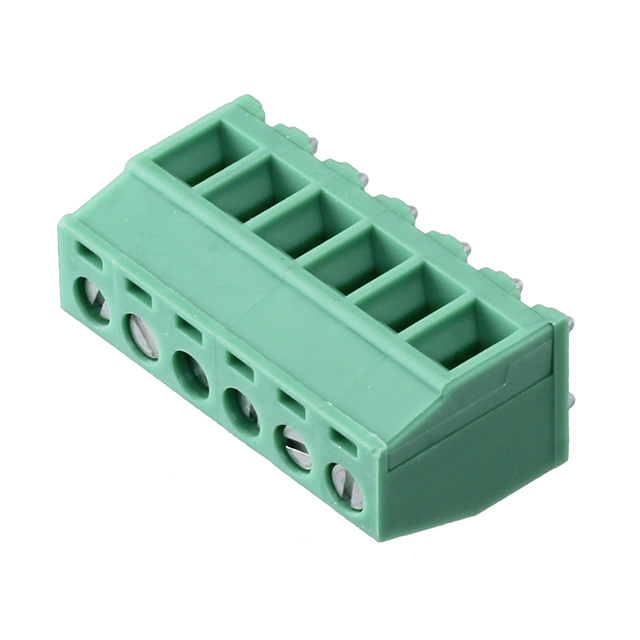

1705582

Phoenix ContactIn Stock: 10281705582 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1705582 qualifies as a direct substitute for the 1705692 based on the following critical parameters that determine functional interchangeability:

Matching Electrical Parameters:

• Current rating: 10 A
• Voltage rating: 300 V
• Wire gauge acceptance: 14-30 AWG

Matching Mechanical Parameters:

• Position count: 6 positions per level
• Pitch: 0.150" (3.81mm)
• Mating orientation: Horizontal with Board
• Mounting type: Through Hole
• Wire termination method: Screw - Rising Cage Clamp
• Screw specification: M2 thread with 0.22-0.25 Nm torque range
• Housing material: Polyamide (PA), Nylon

Key Difference: The 1705582 belongs to the COMBICON MKDSD series and maintains active product status, whereas the 1705692 (COMBICON EMKDS series) is obsolete. Both parts share identical electrical and mechanical specifications, making the 1705582 a direct functional replacement.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1705582 is the appropriate selection for applications currently using or requiring the 1705692. The substitute part maintains identical electrical and mechanical specifications while offering the advantage of active product status and ROHS3 compliance certification. The transition from COMBICON EMKDS to COMBICON MKDSD series does not introduce functional differences in terminal block performance. Both parts satisfy the same PCB layout requirements, wire termination procedures, and electrical operating conditions. Selection of the 1705582 ensures long-term component availability and compliance with current regulatory standards.

Frequently Asked Questions (FAQ)

Q: Can the 1705582 be used as a direct replacement for the 1705692 on existing PCBs?

A: Yes. Both parts share identical pitch (3.81mm), position count (6), mounting type (through hole), and footprint geometry. No PCB redesign is required.

Q: Are there differences in wire termination between these parts?

A: No. Both parts use identical screw-based rising cage clamp termination with M2 thread specification and matching torque requirements (0.22-0.25 Nm).

Q: What is the significance of the series change from EMKDS to MKDSD?

A: The series designation reflects product line evolution within Phoenix Contact's COMBICON terminal block family. The functional specifications remain unchanged; the MKDSD series represents the current active equivalent.

Q: Does the ROHS3 compliance of the 1705582 affect compatibility?

A: No. ROHS3 compliance is a regulatory certification indicating the substitute part meets current environmental standards. This does not alter electrical or mechanical performance.

Q: Are the packaging differences between these parts significant?

A: The 1705692 is listed with unspecified packaging, while the 1705582 is supplied in bulk packaging. This affects procurement and storage but does not impact component functionality or performance.

Q: What wire gauges are compatible with both parts?

A: Both the 1705692 and 1705582 accept wire gauges from 14 AWG to 30 AWG, providing flexibility for various circuit applications within the specified current and voltage ratings.
