Weidmüller 1702820000 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Weidmüller 1702820000 is a 6-position terminal block plug with female sockets, designed for 7.62mm (0.300") pitch applications. This component features 90° free-hanging (in-line) wire entry and screw-clamping termination. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new designs requiring compatible connectivity solutions.

Key Parameters

Parameter	Value
Manufacturer Part Number	1702820000
Manufacturer	Weidmüller
Category	Terminal Blocks
Type	Plug, Female Sockets
Number of Positions	6
Pitch	0.300" (7.62mm)
Plug Wire Entry	90°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Current - IEC	13A
Voltage - IEC	500 V
Wire Gauge Range	12-26 AWG (0.08-2.5mm²)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 1702820000 is determined by the following critical parameters:

Connector Type & Configuration: 6-position plug with female sockets
Wire Entry Orientation: 90° free-hanging (in-line) mounting
Termination Method: Screw-based clamping mechanism
Electrical Ratings: Minimum IEC 500V voltage rating; current capacity ≥13A IEC
Wire Compatibility: Support for 12-26 AWG (0.08-2.5mm²) wire gauges
Pitch Tolerance: 7.62mm (0.300") pitch or mechanically compatible alternatives

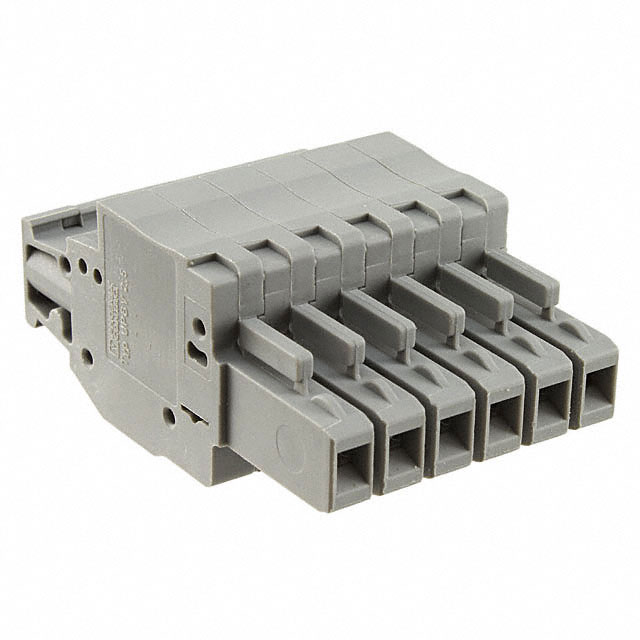

The Phoenix Contact 3045444 qualifies as a substitute based on matching configuration (6-position female socket plug), identical wire entry orientation (90°), screw termination method, and superior electrical ratings (24A IEC, 500V IEC). Wire gauge compatibility (12-26 AWG) and free-hanging mounting type are preserved.

Parameter Comparison

Parameter	Weidmüller 1702820000	Phoenix Contact 3045444
Type	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	6	6
Positions Per Level	6	6
Number of Levels	1	1
Plug Wire Entry	90°	90°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)	Screw
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Current - IEC	13A	24A
Voltage - IEC	500 V	500 V
Current - UL	15 A	20 A
Voltage - UL	300 V	600 V
Wire Gauge - AWG	12-26 AWG	12-26 AWG
Wire Gauge - mm²	0.08-2.5mm²	0.14-4mm²
Material Flammability Rating	UL94 V-0	UL94 V-0
Screw Size	M2.5	M3
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
HTSUS	8536.90.4000	8536.90.4000

Engineering Selection Recommendations

The Phoenix Contact 3045444 is a direct functional substitute for the obsolete Weidmüller 1702820000. Both components share identical connector architecture (6-position female socket plug), wire entry orientation (90°), and screw termination methodology. The Phoenix Contact part offers enhanced electrical performance with 24A IEC current rating versus 13A, and 600V UL voltage rating versus 300V UL, providing superior margin for existing applications.

Both parts maintain UL94 V-0 flammability compliance and REACH Unaffected status. The Phoenix Contact 3045444 carries active product status with RoHS3 compliance, ensuring long-term availability and regulatory alignment. Mechanical compatibility is confirmed through matching wire gauge support (12-26 AWG) and free-hanging mounting configuration.

The screw size difference (M2.5 versus M3) and torque specification variance (0.4-0.5 Nm versus 0.5-0.6 Nm) reflect design optimization in the substitute part and do not impair functional substitution in standard applications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 3045444 directly replace the Weidmüller 1702820000 in existing installations?

A: Yes. Both parts are 6-position female socket plugs with 90° wire entry and screw termination. Wire gauge compatibility (12-26 AWG) and mounting type (free-hanging in-line) are identical. The Phoenix Contact part provides equal or superior electrical performance.

Q: What are the key differences between these two parts?

A: The primary differences are: (1) Current rating: Phoenix Contact 3045444 is rated 24A IEC versus 13A IEC for the Weidmüller part; (2) UL voltage: Phoenix Contact provides 600V versus 300V; (3) Screw size: M3 versus M2.5; (4) Wire strip length: 9mm versus 7mm; (5) Insulation height: 47mm versus 14mm; (6) Product status: Phoenix Contact is active, Weidmüller is obsolete.

Q: Are there any compatibility concerns with the different screw sizes?

A: No. The screw size difference (M2.5 to M3) is an internal design variation. Both parts use screw-clamping termination and accept the same wire gauge range (12-26 AWG). Installation procedures follow standard terminal block practices for each manufacturer.

Q: Do both parts meet the same regulatory standards?

A: Both parts are UL94 V-0 rated, REACH Unaffected, and classified as EAR99 for export control. The Phoenix Contact 3045444 additionally carries RoHS3 compliance, reflecting its active product status.

Q: What is the pitch specification for these parts?

A: The Weidmüller 1702820000 specifies 0.300" (7.62mm) pitch. The Phoenix Contact 3045444 does not list pitch in the provided data; however, as a 6-position female socket plug with identical connector form factor and free-hanging mounting, it is mechanically compatible with 7.62mm pitch applications.
