Phoenix Contact 1702015 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1702015 is a 2-position terminal block header with male pins in green, part of the COMBICON DFK-PC series. This component features PCB pins with right-angle configuration and is designed for panel mounting applications with snap lock front flange attachment. The part is currently classified as obsolete, making identification of suitable substitutes necessary for ongoing design support and component procurement.

Substiute Parts

1702015

Phoenix ContactIn Stock: 8551702015 Datasheet

Current PartRFQ

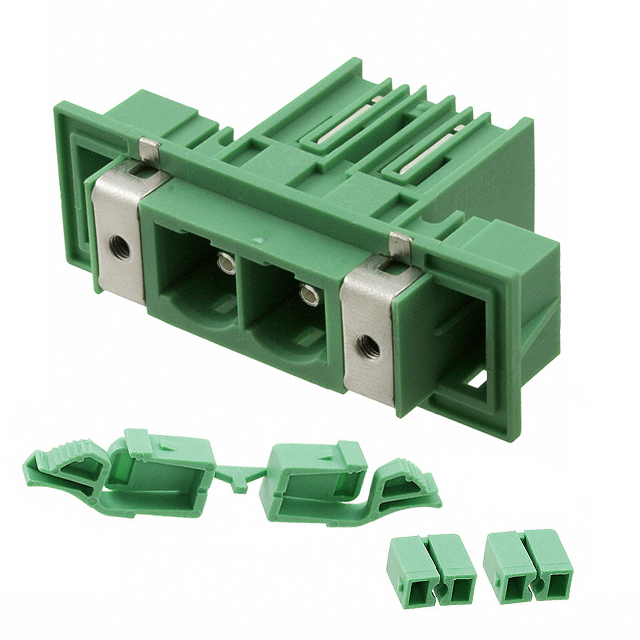

1701537

Phoenix ContactIn Stock: 9041701537 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1702015 is determined by strict alignment of the following critical parameters:

• Electrical Specifications: Voltage rating (600 V UL) and current capacity must meet or exceed the original specification
• Mechanical Configuration: Position count (2), pitch (0.400"/10.16mm), width (2.192"/55.68mm), and panel thickness tolerance (0.039 ~ 0.118") must be identical
• Connection Type: Front panel connection (Header, Male Pins) and rear panel connection (PCB Pins - Right Angle) must match
• Physical Mounting: Panel mount type (2 Piece, Snap Lock - Front Flange) must be identical
• Color and Series: Green color and COMBICON DFK-PC series designation must be maintained
• Compliance: RoHS compliance status must be verified

The Phoenix Contact 1702015 has one identified substitute within the COMBICON DFK-PC series that maintains these critical parameters while offering active product status.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1701537 is a direct substitute for the obsolete 1702015 model. Both components share identical mechanical and electrical specifications across all critical parameters: 2-position configuration, 0.400" pitch, 600 V voltage rating, and identical panel mounting geometry.

The 1701537 offers the following advantages for component selection:

• Active Product Status: The 1701537 is currently in active production, ensuring long-term availability and supply chain continuity
• Enhanced Current Rating: The 1701537 provides a 66 A current capacity compared to the 5 A rating of the 1702015, offering greater electrical headroom for applications within the same voltage and mechanical envelope
• Improved Compliance: The 1701537 carries ROHS3 compliance certification, representing the latest regulatory standard
• Identical Mechanical Interface: Pin pitch, width, panel thickness tolerance, and mounting configuration are identical, ensuring direct mechanical compatibility in existing designs

The 1701537 maintains the same series designation (COMBICON DFK-PC), color (green), and connection configuration (Header male pins with right-angle PCB pins), confirming full interchangeability for the 1702015 in new designs and redesigns.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1701537 be used as a direct replacement for the 1702015?

A: Yes. The 1701537 maintains identical mechanical dimensions, pitch, panel thickness tolerance, voltage rating, and mounting configuration. Both components are part of the COMBICON DFK-PC series with identical front and rear panel connection types.

Q: What is the difference in current rating between these parts?

A: The 1702015 is rated for 5 A, while the 1701537 is rated for 66 A. Both operate at 600 V. The higher current capacity of the 1701537 does not affect mechanical or electrical compatibility in applications designed for the original 5 A specification.

Q: Are there packaging differences between the 1702015 and 1701537?

A: The 1702015 was supplied with standard packaging, while the 1701537 is supplied in bulk packaging. This difference does not affect component functionality or mechanical compatibility.

Q: What compliance certifications apply to each part?

A: The 1702015 carries RoHS Compliant certification. The 1701537 carries ROHS3 Compliant certification and is REACH Unaffected. Both meet current regulatory requirements for electronic component manufacturing.

Q: Are the shield connection features identical?

A: Both parts include threaded mating lock and shield connection features. The 1702015 specifies shield connection feedthrough, while the 1701537 specifies shield connection front side. Both configurations support shielded applications within the COMBICON DFK-PC series design.

Q: What is the panel thickness tolerance for these terminal blocks?

A: Both the 1702015 and 1701537 support panel thickness ranges of 0.039 to 0.118 inches (1.0 to 3.0 millimeters), accommodating standard panel mounting applications.
