Phoenix Contact 1690231 Hood Connector Side Entry M32 B16 - Equivalent & Substitute Parts

Part Overview

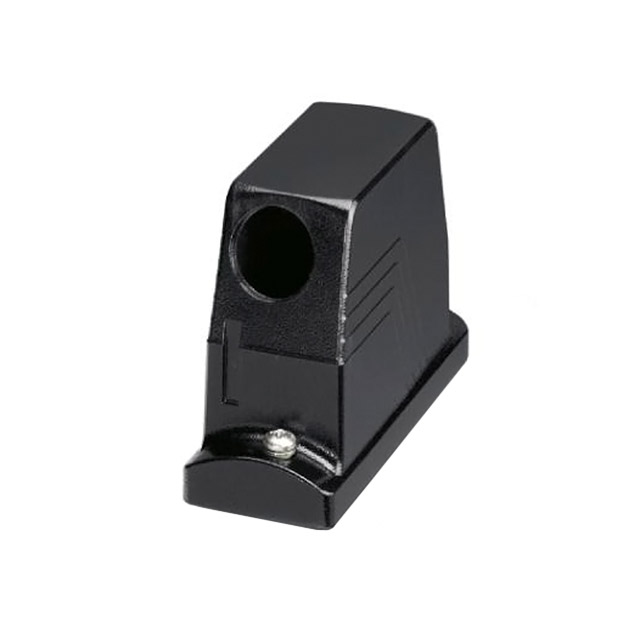

The Phoenix Contact 1690231 is a heavy-duty hood connector with side entry configuration, M32 thread size, and B16 contact arrangement. This connector is designed for applications requiring IP65/IP68/IP69K ingress protection with salt water resistance in harsh industrial environments. The part is currently listed as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

1690231

Phoenix ContactIn Stock: 12251690231 Datasheet

Current PartRFQ

1420915

Phoenix ContactIn Stock: 8501420915 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1690231 is determined by the following critical parameters:

• Connector Type & Style: Must be hood connector with side entry configuration
• Contact Arrangement: B16 size specification
• Thread Interface: M32 thread size for mechanical compatibility
• Ingress Protection: Minimum IP65/IP68/IP69K rating for environmental sealing
• Housing Material & Finish: Aluminum die cast with powder coating for corrosion resistance
• Operating Temperature: -40°C to 125°C range
• Series Compatibility: HEAVYCON-ADVANCE® series
• Electrical & Mechanical Specifications: Salt water resistance and RoHS compliance

The substitute part 1420915 meets all these criteria while offering an active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1420915 is the direct substitute for the obsolete 1690231. Both connectors share identical mechanical and electrical specifications within the HEAVYCON-ADVANCE® series, including connector type, contact arrangement, thread interface, and environmental protection ratings. The 1420915 offers the advantage of active product status with confirmed current availability (783 pcs in stock versus 1136 pcs for the obsolete part).

The ingress protection rating difference (IP65 versus IP66 minimum) represents an enhancement in dust protection performance, making the 1420915 suitable for all applications previously served by the 1690231. Both parts maintain full RoHS compliance and identical operating temperature specifications.

For new designs or system replacements, the 1420915 is the recommended selection due to its active status and long-term supply assurance.

Frequently Asked Questions (FAQ)

Q: Can the 1420915 directly replace the 1690231 in existing installations?

A: Yes. Both connectors share identical mechanical interfaces (M32 thread, B16 contact arrangement, side entry configuration) and equivalent environmental protection ratings. The 1420915 meets or exceeds all performance specifications of the 1690231.

Q: What is the difference between IP65 and IP66 ratings?

A: IP66 provides enhanced dust protection compared to IP65. Both ratings maintain equivalent water resistance (IP68/IP69K). The 1420915's IP66 rating represents improved performance for dust-laden environments.

Q: Are there packaging differences between these parts?

A: The 1690231 packaging is not specified in available documentation. The 1420915 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both connectors support the same operating temperature range?

A: Yes. Both the 1690231 and 1420915 operate across -40°C to 125°C, ensuring thermal compatibility in equivalent applications.

Q: Is the 1420915 RoHS compliant?

A: Yes. The 1420915 maintains full RoHS compliance, matching the environmental standards of the 1690231.

Q: What is the MSL rating difference?

A: The 1690231 lists MSL as not applicable. The 1420915 specifies MSL 1 (unlimited), indicating no moisture sensitivity restrictions for storage and handling.
