Phoenix Contact 1690121 Heavy Duty Connector Hood - Equivalent & Substitute Parts

Part Overview

The Phoenix Contact 1690121 is a heavy duty connector hood designed for top entry applications with M32 thread size in the B10 configuration. This component provides IP65/IP68/IP69K ingress protection for dust-tight and waterproof sealing in industrial environments. The part is classified as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

1690121

Phoenix ContactIn Stock: 10161690121 Datasheet

Current PartRFQ

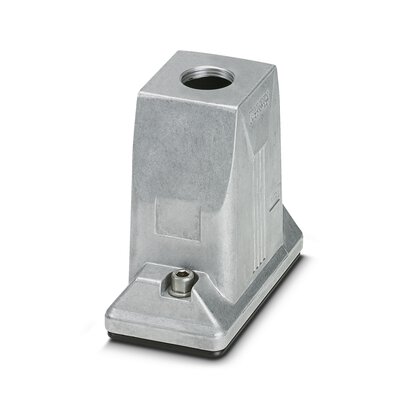

1413402

Phoenix ContactIn Stock: 8301413402 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1690121 has one direct substitute within the HEAVYCON-ADVANCE® series: part number 1413402. Substitution is valid based on the following criteria:

Matching Parameters:

• Identical connector type (Hood) and style (Top Entry)
• Identical size designation (B10) and thread size (M32)
• Identical lock mechanism (Screw Locks on Hood)
• Identical housing material (Aluminum, Die Cast)
• Identical operating temperature range (-40°C to 125°C)
• Same series classification (HEAVYCON-ADVANCE®)
• Equivalent ECCN and HTSUS classifications

Allowable Variations:

• Ingress protection upgrade from IP65/IP68/IP69K to IP66/IP68/IP69K
• Product status transition from Obsolete to Active
• Minor dimensional variation in height (100.00mm to 93.70mm)
• Enhanced feature addition (Salt Water Resistant)
• RoHS compliance level upgrade (RoHS to ROHS3)

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1413402 is the direct active equivalent for the obsolete 1690121. Selection of the substitute is supported by:

• Active product status ensuring ongoing availability and manufacturer support
• Enhanced ingress protection rating (IP66 addition) providing superior dust exclusion
• ROHS3 compliance exceeding the original RoHS requirement
• Identical mechanical and electrical interface specifications
• Maintained operating temperature performance across the full industrial range
• Equivalent regulatory classification (EAR99, HTSUS 8538.90.8180)

The minor height reduction (6.3mm) and addition of salt water resistance represent functional improvements without compromising mechanical fit or electrical performance in standard M32 top entry applications.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1413402 directly replace 1690121 in existing installations?

A: Yes. Both parts share identical connector type, size (B10), thread size (M32), lock mechanism, housing material, and operating temperature range. The substitute provides equivalent or enhanced performance.

Q: What is the significance of the IP66 rating upgrade in 1413402?

A: The upgrade from IP65 to IP66 indicates enhanced dust protection. Both parts maintain IP68/IP69K water resistance ratings. The addition of IP66 provides stricter dust exclusion criteria without affecting water sealing performance.

Q: Are there packaging differences between these parts?

A: The main part 1690121 is listed with unspecified packaging, while 1413402 is supplied in bulk packaging. Verify packaging requirements for your procurement process.

Q: Does the height reduction from 100.00mm to 93.70mm affect mechanical compatibility?

A: The dimensional change is within the B10 size class specification. Verify clearance in your specific installation geometry, particularly for top entry mounting configurations.

Q: What compliance advantages does 1413402 provide?

A: Part 1413402 carries ROHS3 compliance and REACH Unaffected status, exceeding the original RoHS requirement and providing enhanced regulatory alignment for current industrial applications.

Q: Is the salt water resistance feature of 1413402 relevant for standard applications?

A: Salt water resistance is an additional feature that does not affect standard industrial use. It provides enhanced capability for marine or corrosive environment applications without compromising performance in conventional settings.
