Weidmüller 1689170000 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The Weidmüller 1689170000 is a 3-position terminal block plug with female sockets, 0.200" (5.08mm) pitch, designed for 180° free-hanging in-line applications. This component features screwless spring cage termination and is rated for 12A at 125V (IEC) and 10A at 300V (UL). The product is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new designs requiring compatible connectivity solutions.

Substiute Parts

1689170000

WeidmüllerIn Stock: 8571689170000 Datasheet

Current PartRFQ

1873061

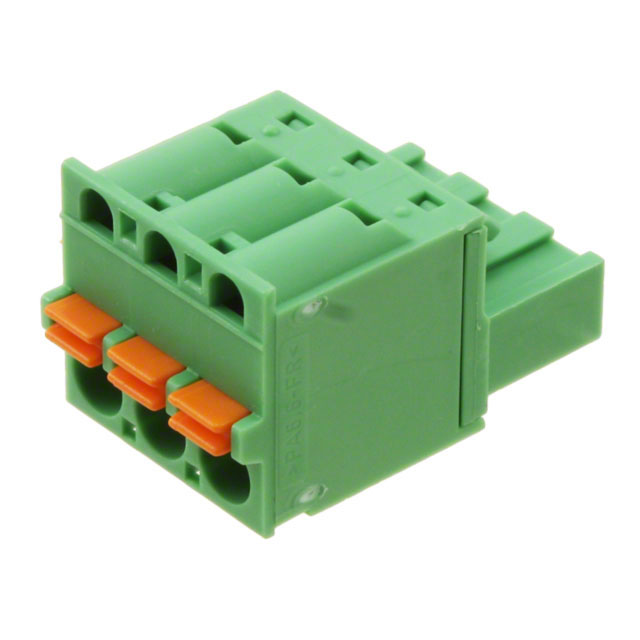

Phoenix ContactIn Stock: 10121873061 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 1689170000 is determined by the following critical parameters:

• Connector Type & Configuration: 3-position plug with female sockets
• Pitch Specification: 0.200" (5.08mm) center-to-center spacing
• Wire Entry Orientation: 180° free-hanging in-line configuration
• Electrical Ratings: Minimum 10A at 300V (UL) or 12A at 125V (IEC)
• Wire Gauge Compatibility: Support for 12-22 AWG wire range
• Termination Method: Screwless spring-based connection systems
• Material Compliance: UL94 V-0 flammability rating
• Mounting Style: Free-hanging in-line without fixed mounting

The Phoenix Contact 1873061 qualifies as a direct substitute based on matching pitch, connector type, wire entry orientation, electrical ratings, and termination methodology. Both components support the same wire gauge range and maintain equivalent mechanical and electrical performance within specified operating parameters.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1873061 is a qualified substitute for the obsolete Weidmüller 1689170000 based on the following engineering criteria:

Electrical Compatibility: Both components meet or exceed the required electrical ratings. The Phoenix Contact part provides higher IEC voltage rating (630V vs. 125V), which represents an improvement over the original specification while maintaining identical UL ratings (10A at 300V).

Mechanical Compatibility: Pitch, connector type, wire entry orientation, and mounting configuration are identical between both parts. Physical interchangeability is confirmed for mating with corresponding receptacle connectors designed for 5.08mm pitch.

Wire Gauge Support: The Phoenix Contact 1873061 accepts a broader wire gauge range (12-26 AWG vs. 12-22 AWG), providing greater application flexibility without compromising the original design intent.

Compliance & Certification: Both components carry UL94 V-0 flammability certification and REACH compliance status. The Phoenix Contact part maintains active product status, ensuring long-term availability and supply chain continuity.

Termination Methodology: Both employ screwless spring-based termination systems. While the specific spring mechanism differs (tension clamp vs. push-in spring), both deliver equivalent functional performance for wire retention and electrical contact.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1873061 directly replace the Weidmüller 1689170000 in existing assemblies?

A: Yes. Both components share identical pitch (5.08mm), connector type (3-position plug with female sockets), wire entry orientation (180°), and mounting configuration (free-hanging in-line). Physical and electrical interchangeability is confirmed for mating with standard 5.08mm pitch receptacles.

Q: What are the key differences between these two parts?

A: The primary differences are manufacturer series (Omnimate BL vs. COMBICON FKC), housing material (PBT vs. Polyamide/Nylon), color (Black vs. Green), IEC voltage rating (125V vs. 630V), wire gauge range (12-22 AWG vs. 12-26 AWG), and product status (Obsolete vs. Active). Electrical performance under UL ratings remains identical.

Q: Does the higher voltage rating of the Phoenix Contact part affect compatibility?

A: No. Higher voltage ratings represent a design margin improvement and do not affect compatibility. The Phoenix Contact 1873061 operates safely within all electrical parameters of the original Weidmüller design.

Q: Are there packaging differences between these parts?

A: Yes. The Weidmüller 1689170000 is supplied with standard packaging, while the Phoenix Contact 1873061 is supplied in bulk packaging. This affects procurement and inventory management but does not impact component functionality.

Q: Which part should be selected for new designs?

A: The Phoenix Contact 1873061 is the appropriate choice for new designs. It maintains full compatibility with the original specification while offering active product status, ensuring long-term availability and supply chain support.

Q: Can both parts be used interchangeably in the same system?

A: Yes. Both components meet identical mechanical and electrical requirements for 5.08mm pitch terminal block applications. Mixed usage within a single system does not create compatibility issues.
