Phoenix Contact 1687480 Equivalent & Substitute Parts

Part Overview

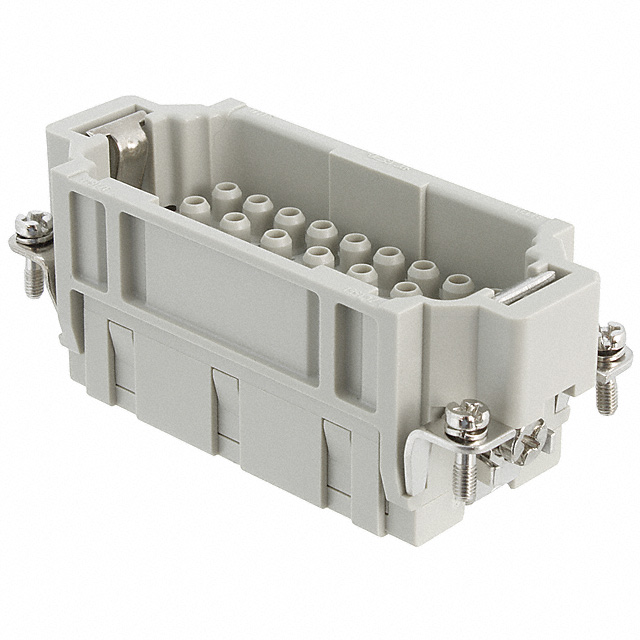

The Phoenix Contact 1687480 is a male insert connector without contacts, designed for the HEAVYCON® BB 32 heavy duty connector series. This 32-position crimp termination component operates at 500V with a 16A current rating and supports operating temperatures from -40°C to 125°C. The part is classified as obsolete, making identification of suitable alternatives essential for ongoing system maintenance and new design implementations. The substitute part maintains functional compatibility while offering active product status and updated compliance certifications.

Substiute Parts

1687480

Phoenix ContactIn Stock: 12151687480 Datasheet

Current PartRFQ

1584732

Phoenix ContactIn Stock: 10711584732 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1584732 qualifies as a direct substitute based on the following critical parameters that determine functional compatibility:

Matching Parameters:

• Manufacturer: Phoenix Contact
• Series: HEAVYCON® BB 32
• Connector Type: Insert without Contacts
• Gender: Male
• Size: B16
• Termination Style: Crimp
• Voltage Rating: 500V
• Current Rating: 16A
• Contact Type: CK 2.5-ED
• Operating Temperature Range: -40°C to 125°C
• Housing Material: Polycarbonate (PC)
• Material Flammability Rating: UL94 V-0
• Moisture Sensitivity Level: 1 (Unlimited)

Distinguishing Feature: The 1584732 incorporates a 32+Ground position configuration compared to the standard 32 positions of the 1687480. This enhancement provides an additional dedicated ground position while maintaining all other electrical and mechanical specifications. The substitute part carries active product status with ROHS3 compliance and REACH unaffected designation, providing improved long-term availability and regulatory alignment.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1584732 is the designated substitute for the obsolete 1687480 based on maintained electrical and mechanical specifications across all critical parameters. Both parts operate identically within the HEAVYCON® BB 32 series framework with matching voltage, current, temperature, and contact specifications.

The 1584732 provides enhanced regulatory positioning through ROHS3 compliance and REACH unaffected status, ensuring alignment with current environmental and safety standards. The addition of a dedicated ground position in the 1584732 represents a functional enhancement that does not compromise backward compatibility in applications where the standard 32-position configuration is utilized.

Selection of the 1584732 is supported by its active product status, which guarantees continued manufacturing support and supply chain availability compared to the obsolete 1687480.

Frequently Asked Questions (FAQ)

Q: Can the 1584732 directly replace the 1687480 in existing applications?

A: The 1584732 maintains all critical electrical and mechanical parameters of the 1687480, including voltage rating, current rating, operating temperature range, contact type, and housing material. The 32+Ground position configuration of the 1584732 provides an additional ground position while preserving the standard 32-position functionality. Direct substitution is supported for applications utilizing the standard 32-position configuration.

Q: What is the significance of the 32+Ground position in the 1584732?

A: The 32+Ground designation indicates the presence of a dedicated ground position in addition to the 32 standard signal positions. This configuration maintains all other specifications identical to the 1687480 while providing enhanced grounding capability for applications requiring dedicated ground connections.

Q: How do the RoHS compliance levels differ between these parts?

A: The 1687480 carries RoHS Compliant status, while the 1584732 carries ROHS3 Compliant status. ROHS3 represents the current regulatory standard with updated substance restrictions. Both parts meet their respective compliance requirements for their product status periods.

Q: What does the active product status of the 1584732 mean for procurement?

A: Active product status indicates that the 1584732 is currently in production and supported by Phoenix Contact. This ensures ongoing availability, supply chain reliability, and manufacturer support. The obsolete status of the 1687480 indicates it is no longer manufactured, making the 1584732 the appropriate choice for new designs and ongoing maintenance requirements.

Q: Are the packaging specifications compatible between these parts?

A: The 1687480 is packaged as indicated in the original specification, while the 1584732 is supplied in bulk packaging. Both parts maintain identical connector specifications and are suitable for integration into standard assembly processes.
