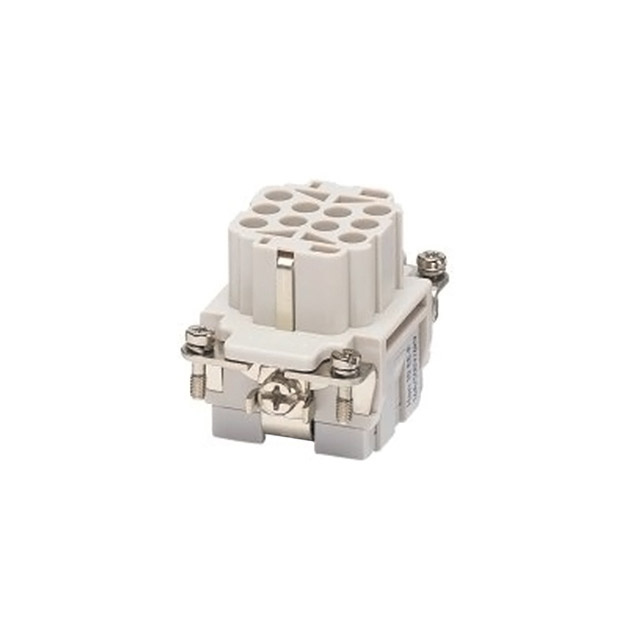

Phoenix Contact 1687435 Female Insert 10 Position Crimp Connector

Part Overview

The Phoenix Contact 1687435 is a female insert without contacts for heavy duty connector applications, designed for 10-position crimp termination in the HEAVYCON® BB10 series. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure long-term component availability for new designs and field replacements.

Substiute Parts

1687435

Phoenix ContactIn Stock: 10431687435 Datasheet

Current PartRFQ

1584703

Phoenix ContactIn Stock: 11221584703 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1687435 has one identified equivalent substitute: part number 1584703. Substitution eligibility is determined by the following critical parameters that must remain constant:

• Manufacturer: Phoenix Contact
• Series: HEAVYCON® BB10
• Connector Type: Insert without Contacts
• Gender: Female
• Size: B6
• Termination Style: Crimp
• Voltage Rating: 500V
• Current Rating: 16A
• Contact Type: CK 2.5-ED
• Operating Temperature Range: -40°C to 125°C
• Housing Material: Polycarbonate (PC)
• Material Flammability Rating: UL94 V-0
• RoHS Status: RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 1584703 maintains all critical electrical and mechanical parameters while offering the advantage of active product status and increased inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1584703 is the direct equivalent substitute for the obsolete 1687435. Both components maintain identical electrical ratings, mechanical dimensions, and material specifications. The primary distinction is the position configuration: the substitute provides 10+Ground positions compared to the original 10 positions, with all other parameters held constant.

Selection of the 1584703 is supported by its active product status, ensuring continued availability and manufacturer support. Both components carry RoHS compliance and UL94 V-0 flammability certification, meeting regulatory requirements for heavy duty connector applications.

Frequently Asked Questions (FAQ)

Q: Can the 1584703 directly replace the 1687435 in existing designs?

A: The 1584703 maintains all critical electrical and mechanical parameters of the 1687435. The difference in position configuration (10+Ground versus 10) must be evaluated against specific application requirements. Both components are mechanically compatible within the HEAVYCON® BB10 series and share identical voltage, current, and temperature ratings.

Q: What is the significance of the 10+Ground position configuration in the substitute?

A: The 1584703 includes a dedicated ground position in addition to the 10 standard positions. This configuration does not alter the electrical performance or mechanical compatibility of the insert. Application-specific requirements determine whether this additional ground position is beneficial or requires design consideration.

Q: Are there packaging differences between these parts?

A: The original 1687435 is listed with unspecified packaging, while the 1584703 is supplied in bulk packaging. Both components are new original stock with full inventory availability.

Q: Do both parts meet the same compliance standards?

A: Both the 1687435 and 1584703 are RoHS compliant and carry UL94 V-0 material flammability certification. Both maintain identical moisture sensitivity levels and are suitable for the same operating temperature range of -40°C to 125°C.

Q: Why is the original part obsolete?

A: The 1687435 is classified as obsolete by Phoenix Contact. The 1584703 represents the active equivalent in the HEAVYCON® BB10 series, ensuring continued component availability and manufacturer support for new applications and field service requirements.
