Phoenix Contact 1680982 Sensor Actuator Box - Equivalent & Substitute Parts

Part Overview

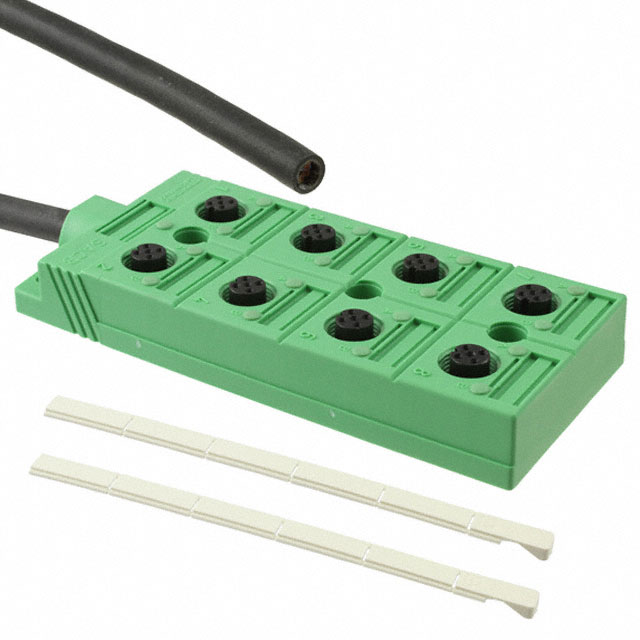

The Phoenix Contact 1680982 is a sensor actuator box designed for M12 circular connector applications with 8 connector openings and 4-position configuration. This component belongs to the PLUSCON series and provides dust-tight, waterproof enclosure functionality for sensor and transducer installations. The part is currently listed as obsolete, making identification of functionally equivalent alternatives essential for system maintenance and component procurement.

Substiute Parts

1680982

Phoenix ContactIn Stock: 9641680982 Datasheet

Current PartRFQ

1452518

Phoenix ContactIn Stock: 8261452518 Datasheet

DirectRFQ

1517042

Phoenix ContactIn Stock: 10221517042 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1680982 is determined by the following critical parameters:

• Connector Configuration: 8 connector openings with M12 shell size compatibility
• Environmental Protection: Dust-tight and waterproof rating
• Functional Classification: Actuator box for sensor/transducer applications
• Regulatory Compliance: RoHS and REACH compliance status
• Moisture Sensitivity: MSL rating of 1 (Unlimited)

Two substitute parts meet these core substitution criteria while maintaining functional equivalence:

1452518: Maintains 8 connector openings, M12 shell size, dust-tight/waterproof features, and MSL 1 rating. Material composition differs (PBT vs. Polyamide), and product status is active with ROHS3 compliance.

1517042: Maintains identical connector configuration (8 openings, 4-position), M12 shell size, PLUSCON series designation, dust-tight/waterproof features, and MSL 1 rating. Material composition differs (PBT vs. Polyamide), and product status is active with ROHS3 compliance.

Parameter Comparison

Engineering Selection Recommendations

For direct replacement with maximum compatibility: Phoenix Contact 1517042 is the primary substitute. It maintains identical connector configuration (8 openings, 4-position), PLUSCON series designation, matching green color, and equivalent environmental protection ratings. Both parts carry active product status with current ROHS3 compliance, ensuring long-term availability and regulatory alignment.

For alternative with different material composition: Phoenix Contact 1452518 provides functional equivalence with identical connector opening count, M12 shell size, and environmental protection features. The material change from Polyamide to PBT and color variation (black) may require mechanical fit verification in existing installations. This part maintains active status and current compliance certifications.

Both substitute parts eliminate obsolescence risk while preserving the core functional requirements of 8-position M12 actuator box applications with dust-tight and waterproof protection.

Frequently Asked Questions (FAQ)

Q: Can 1452518 and 1517042 be used interchangeably with 1680982?

A: Both parts maintain the critical functional parameters: 8 connector openings, M12 shell size, dust-tight/waterproof protection, and MSL 1 rating. The primary difference is material composition (PBT vs. Polyamide) and color variation in 1452518. Mechanical fit and color requirements in your specific application determine interchangeability.

Q: What is the significance of the material change from Polyamide to PBT?

A: Polybutylene Terephthalate (PBT) offers different mechanical and thermal properties compared to Polyamide. Both materials support the specified environmental protection ratings and compliance requirements. Material selection should be verified against your application's mechanical stress, temperature range, and chemical exposure conditions.

Q: Why is 1680982 listed as obsolete?

A: Obsolete status indicates the part is no longer in active production. Phoenix Contact 1517042 serves as the direct successor within the PLUSCON series, maintaining identical specifications and active manufacturing status.

Q: Are there packaging differences between these parts?

A: The main part 1680982 uses standard packaging, while both substitutes are supplied in bulk packaging. Verify bulk packaging compatibility with your procurement and handling procedures.

Q: Do all three parts meet current regulatory requirements?

A: The main part carries RoHS Compliant status. Both substitutes carry ROHS3 Compliant status, representing the current regulatory standard. All three parts maintain REACH Unaffected status. For new designs, ROHS3-compliant substitutes are recommended.
