TE Connectivity AMP Connectors 1674232-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1674232-1 is a 10-position blade type power connector with male solder terminals, designed for through-hole, right-angle mounting applications. This connector features a 2.50mm pitch, keyed design, and push-pull fastening mechanism suitable for battery connector applications.

The 1674232-1 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production and maintenance requirements for systems utilizing this connector.

Substiute Parts

1674232-1

TE Connectivity AMP ConnectorsIn Stock: 10071674232-1 Datasheet

Current PartRFQ

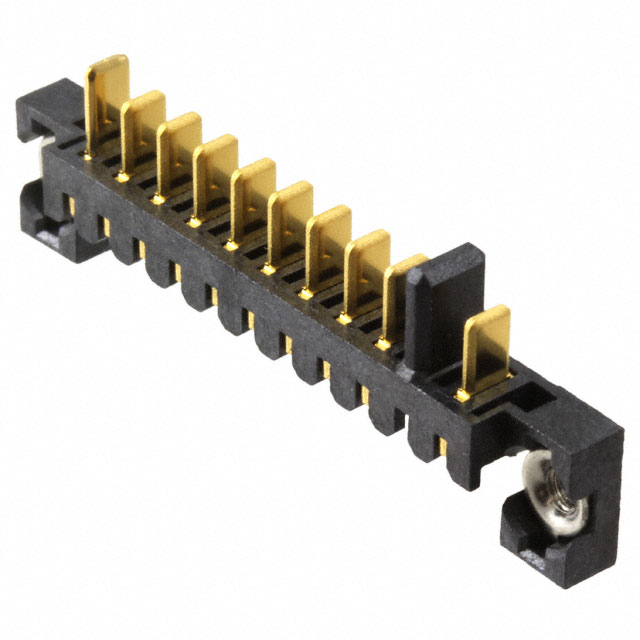

1746092-1

TE Connectivity AMP ConnectorsIn Stock: 37171746092-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1674232-1 is determined by strict equivalence across the following critical parameters:

Electrical Compatibility:

• Voltage rating of 30 V or greater
• Current rating of 6 A or greater
• Contact material and finish (Copper Alloy with Gold plating)

Mechanical Compatibility:

• 10-position configuration
• 2.50mm (0.098") pitch spacing
• Male blade connector type
• Through-hole, right-angle mounting orientation
• Solder termination method
• Keyed design
• Push-pull fastening mechanism
• Thermoplastic insulation

Environmental Compatibility:

• Operating temperature range of -20°C to 80°C or broader
• Moisture sensitivity level 1 (Unlimited)

The substitute part 1746092-1 meets all these criteria and is therefore classified as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

The 1746092-1 is the direct equivalent substitute for the obsolete 1674232-1. Selection of the 1746092-1 is supported by the following factors:

Functional Equivalence: All electrical and mechanical parameters are identical. The connector maintains the same 10-position, 2.50mm pitch configuration with identical voltage and current ratings, contact materials, and termination method.

Product Status: The 1746092-1 is classified as Active, ensuring ongoing availability and supply chain support. The 1674232-1 is Obsolete and no longer in active production.

Regulatory Compliance: The 1746092-1 carries ROHS3 compliance certification and REACH Unaffected status, exceeding the regulatory posture of the obsolete part. Both parts share identical moisture sensitivity levels and environmental operating ranges.

Packaging Consideration: The 1746092-1 is supplied in Tray packaging, which is standard for production environments. The main part packaging specification was not provided.

The 1746092-1 is suitable for direct substitution in all applications where the 1674232-1 was previously specified.

Frequently Asked Questions (FAQ)

Q: Can the 1746092-1 be used as a direct replacement for the 1674232-1 in existing designs?

A: Yes. The 1746092-1 is electrically and mechanically equivalent to the 1674232-1. All critical parameters including connector type, position count, pitch, voltage rating, current rating, termination method, and operating temperature range are identical. No design modifications are required.

Q: What is the primary difference between these two parts?

A: The primary difference is product status. The 1674232-1 is obsolete, while the 1746092-1 is active and in current production. The 1746092-1 also carries ROHS3 compliance certification. All functional and electrical characteristics are identical.

Q: Are there any compatibility concerns with the packaging difference?

A: The 1746092-1 is supplied in Tray packaging, which is standard for production and assembly environments. This packaging format does not affect electrical or mechanical compatibility with the connector interface or circuit board mounting.

Q: Do both parts have the same contact finish specifications?

A: Both parts feature gold-plated copper alloy contacts. The 1746092-1 specifies a contact finish thickness of 11.8µin (0.30µm). The contact finish thickness for the 1674232-1 was not provided in the available documentation.

Q: What is the moisture sensitivity level for these connectors?

A: Both the 1674232-1 and 1746092-1 have a Moisture Sensitivity Level (MSL) of 1, which indicates Unlimited moisture sensitivity. These connectors do not require special moisture control during storage or handling.

Q: Are there any regulatory or compliance differences between these parts?

A: The 1746092-1 carries ROHS3 compliance certification and REACH Unaffected status. The 1674232-1 RoHS status is listed as Not applicable. For applications requiring regulatory compliance documentation, the 1746092-1 provides certified compliance records.

Q: Can these connectors be used in the same circuit board layout?

A: Yes. Both connectors have identical mechanical specifications: 10 positions, 2.50mm pitch, through-hole right-angle mounting, and keyed design. They are footprint-compatible and require no layout modifications.
