Phoenix Contact 1663475 MODULE PNEUMATIC 3POS Equivalent & Substitute Parts

Part Overview

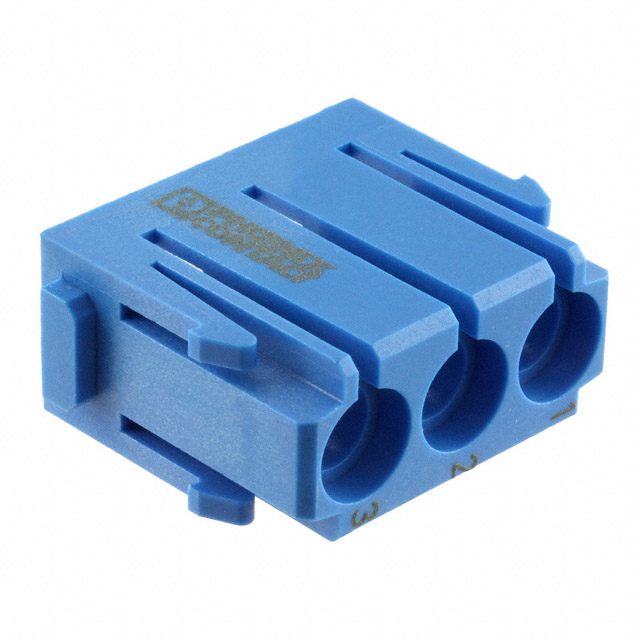

The Phoenix Contact 1663475 is a non-gendered pneumatic module with 3 positions, part of the HEAVYCON® M series. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The module features a polycarbonate housing with UL94 V-0 flammability rating and operates across a temperature range of -40°C to 80°C. Due to its obsolete status, equivalent alternatives must be evaluated based on matching electrical, mechanical, and environmental specifications.

Substiute Parts

1663475

Phoenix ContactIn Stock: 8231663475 Datasheet

Current PartRFQ

1417433

Phoenix ContactIn Stock: 7421417433 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 1663475 is based on the following critical parameters that must align between the main part and substitute candidates:

• Series Compatibility: Both parts must belong to the HEAVYCON® M series to ensure mechanical and electrical interface compatibility
• Number of Positions: Substitute must maintain 3-position configuration
• Operating Temperature Range: Substitute must support the full -40°C to 80°C operating window
• Housing Material: Polycarbonate (PC) construction ensures consistent mechanical properties and environmental resistance
• Material Flammability Rating: UL94 V-0 rating must be maintained for safety compliance
• Connector Category: Both parts must function within the Heavy Duty Connectors classification

The substitute part 1417433 satisfies these core substitution criteria while offering an active product status, ensuring long-term availability and supply chain continuity.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1417433 serves as the direct substitute for the obsolete 1663475 based on alignment of core mechanical and environmental specifications. Both components maintain identical operating temperature ranges, housing materials, and flammability certifications within the HEAVYCON® M series.

The 1417433 offers the advantage of active product status, ensuring continued manufacturer support and supply availability. The component carries ROHS3 compliance, representing an enhanced regulatory position compared to the RoHS Compliant designation of the main part. Both components maintain MSL 1 (Unlimited) moisture sensitivity ratings, indicating equivalent environmental robustness.

The transition from non-gendered to Female/Male gender configuration and the introduction of crimp termination in the substitute part reflects design evolution within the HEAVYCON® M platform while preserving the 3-position pneumatic module functionality.

Frequently Asked Questions (FAQ)

Q: Can the 1417433 directly replace the 1663475 in existing installations?

A: The 1417433 maintains compatibility across all critical parameters: 3-position configuration, HEAVYCON® M series platform, identical operating temperature range (-40°C to 80°C), matching housing material (PC), and equivalent flammability rating (UL94 V-0). The primary difference is the gender configuration change from non-gendered to Female/Male and the specified crimp termination style. System integration feasibility depends on connector interface requirements in your specific application.

Q: What is the significance of the product status change from Obsolete to Active?

A: The active status of 1417433 ensures ongoing manufacturer production, technical support availability, and supply chain continuity. This eliminates the risk of future unavailability associated with obsolete components and provides access to current manufacturing quality standards and certifications.

Q: Are the RoHS compliance levels equivalent between the two parts?

A: Both components meet RoHS requirements. The 1417433 carries ROHS3 compliance, representing the current regulatory standard, while the 1663475 carries RoHS Compliant designation. ROHS3 compliance encompasses and exceeds RoHS requirements, indicating enhanced regulatory alignment in the substitute part.

Q: What does the "Module without Contacts" designation mean for the 1417433?

A: The 1417433 is supplied as a housing module without pre-installed contacts, requiring crimp termination of individual contacts during assembly. This differs from the 1663475 configuration but maintains the same 3-position pneumatic module functionality within the HEAVYCON® M series.

Q: Are both components suitable for the full -40°C to 80°C operating range?

A: Yes. Both the 1663475 and 1417433 are rated for identical operating temperature ranges of -40°C to 80°C, ensuring equivalent thermal performance across all environmental conditions.
