Phoenix Contact 1663310 Equivalent & Substitute Parts

Part Overview

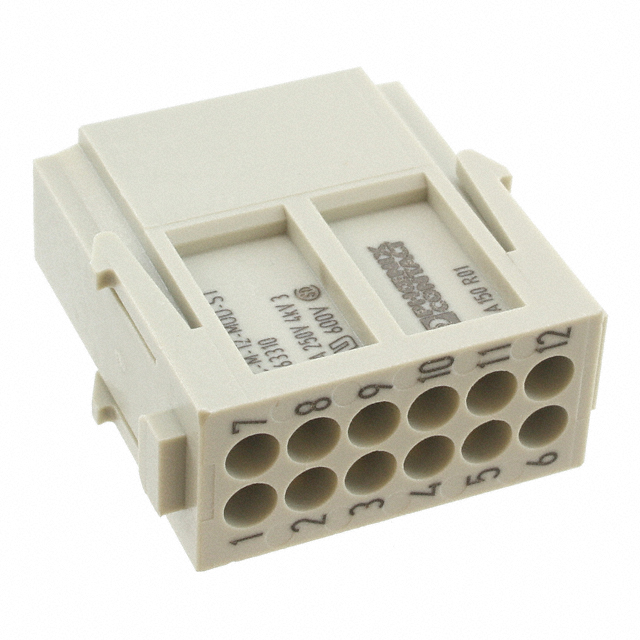

The Phoenix Contact 1663310 is a male module without contacts designed for the HEAVYCON® M heavy duty connector series. This 12-position crimp termination component features polycarbonate housing and operates across a temperature range of -40°C to 80°C. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and ensure ongoing component availability for system integration and maintenance applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	1663310
Manufacturer	Phoenix Contact
Category	Heavy Duty Connectors
Series	HEAVYCON® M
Connector Type	Module without Contacts
Gender	Male
Number of Positions	12
Termination Style	Crimp
Voltage Rating	600V
Contact Type	CK 1.6-ED
Operating Temperature	-40°C ~ 80°C
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1663310 is determined by the following critical parameters:

Connector Type & Series: Must be a module without contacts from the HEAVYCON® M series to ensure mechanical and electrical compatibility within the connector ecosystem.
Gender & Position Count: Must maintain male gender configuration with 12 positions to preserve pin alignment and mating interface integrity.
Termination Style: Crimp termination is required for consistent contact engagement and electrical performance.
Contact Type: CK 1.6-ED contact specification ensures proper contact geometry and current-carrying capacity.
Operating Temperature Range: Must support -40°C to 80°C minimum to maintain functionality across specified environmental conditions.
Housing Material & Flammability: Polycarbonate (PC) housing with UL94 V-0 rating ensures mechanical durability and fire safety compliance.
Compliance Standards: RoHS compliance is mandatory for regulatory adherence in restricted substance applications.

The Phoenix Contact 1414354 satisfies all substitution criteria as an active product within the same series and specification framework.

Parameter Comparison

Parameter	1663310 (Main Part)	1414354 (Substitute)
Manufacturer	Phoenix Contact	Phoenix Contact
Category	Heavy Duty Connectors	Heavy Duty Connectors
Series	HEAVYCON® M	HEAVYCON® M
Connector Type	Module without Contacts	Module without Contacts
Gender	Male	Male
Number of Positions	12	12
Termination Style	Crimp	Crimp
Voltage Rating	600V	250V
Current Rating	Not specified	16A
Contact Type	CK 1.6-ED	CK 1.6-ED
Operating Temperature	-40°C ~ 80°C	-40°C ~ 80°C
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active

Engineering Selection Recommendations

The Phoenix Contact 1414354 is the direct substitute for the obsolete 1663310. Both components share identical mechanical and electrical specifications across all critical parameters: HEAVYCON® M series designation, 12-position male module configuration, crimp termination with CK 1.6-ED contacts, polycarbonate housing with UL94 V-0 flammability rating, and -40°C to 80°C operating temperature range.

The 1414354 maintains active product status with current manufacturing support and inventory availability (899 pcs in stock). The substitute provides enhanced compliance through ROHS3 certification and includes specified current rating of 16A. The voltage rating differential (250V vs. 600V on the original) must be evaluated against application requirements; applications requiring 600V operation should confirm compatibility with the 250V rating of the substitute.

Both components carry identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications, ensuring consistent regulatory treatment in procurement and logistics workflows.

Frequently Asked Questions (FAQ)

Q: Can the 1414354 directly replace the 1663310 in existing assemblies?

A: The 1414354 is mechanically and electrically compatible as a direct substitute. Both components share identical connector type, gender, position count, termination style, contact type, operating temperature range, housing material, and flammability rating. Voltage rating compatibility must be confirmed for the specific application.

Q: What is the significance of the voltage rating difference between the two parts?

A: The 1663310 is rated for 600V operation, while the 1414354 is rated for 250V. Applications operating at voltages exceeding 250V require verification that the substitute meets system voltage requirements before implementation.

Q: Why is the 1663310 classified as obsolete?

A: Obsolete status indicates the part is no longer in active production. The 1414354 serves as the current production equivalent within the HEAVYCON® M series, ensuring continued availability and manufacturing support.

Q: Are there packaging differences between these components?

A: The 1663310 packaging specification is not provided. The 1414354 is supplied in bulk packaging. Packaging requirements should be confirmed with procurement specifications.

Q: Do both parts meet current compliance standards?

A: Both components are RoHS compliant. The 1414354 carries ROHS3 certification, representing the current compliance standard. Both maintain UL94 V-0 flammability rating and MSL 1 (Unlimited) moisture sensitivity classification.

Q: Is the 1414354 available in inventory?

A: Yes, 899 pieces of the 1414354 are available as new original stock, providing immediate supply availability for component procurement.
