Phoenix Contact 1663226 Equivalent & Substitute Parts

Part Overview

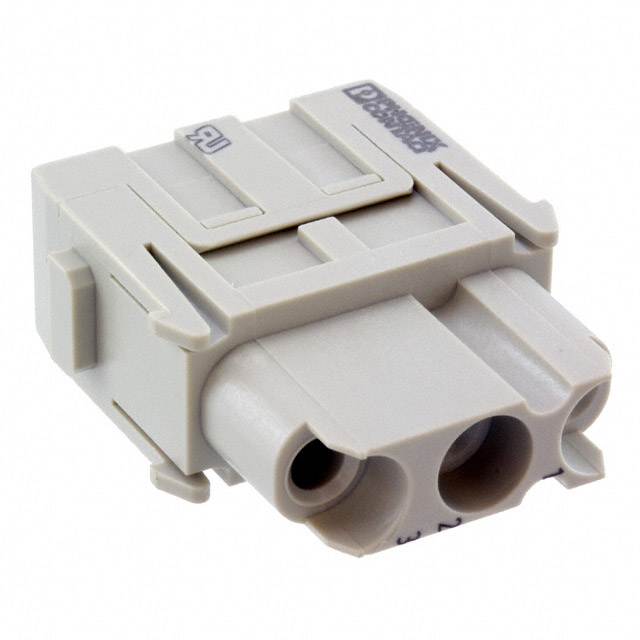

The Phoenix Contact 1663226 is a female module without contacts for heavy duty connectors, designed for 3-position crimp termination applications. This component is part of the HEAVYCON® M series and operates within a voltage rating of 600V across a temperature range of -40°C to 125°C.

The 1663226 has reached obsolete product status. Identifying equivalent and substitute parts is essential for maintaining system compatibility, ensuring continued availability for repair and replacement applications, and supporting long-term supply chain management for legacy installations.

Substiute Parts

1663226

Phoenix ContactIn Stock: 7761663226 Datasheet

Current PartRFQ

1414359

Phoenix ContactIn Stock: 10561414359 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1663226 is determined by the following critical parameters:

Core Functional Parameters:

• Connector Type: Module without Contacts
• Gender: Female
• Number of Positions: 3
• Termination Style: Crimp
• Contact Type: CK 4.0-ED
• Series: HEAVYCON® M

Electrical & Environmental Parameters:

• Voltage Rating: 600V
• Operating Temperature Range: -40°C to 125°C
• Material Flammability Rating: UL94 V-0

Compliance Parameters:

• RoHS Status: RoHS Compliant or equivalent
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 1414359 maintains identical specifications across all core functional, electrical, environmental, and compliance parameters, making it a direct functional equivalent. The primary distinction is product status: 1414359 is active and available, whereas 1663226 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414359 is the direct substitute for the obsolete 1663226. Both components are manufactured by Phoenix Contact within the HEAVYCON® M series and share identical electrical ratings, environmental specifications, and compliance certifications.

Selection of 1414359 is supported by:

• Active product status ensuring ongoing availability and supply chain continuity
• ROHS3 compliance, which supersedes the RoHS compliance of the obsolete part
• Identical voltage rating (600V), temperature range (-40°C to 125°C), and flammability rating (UL94 V-0)
• Matching connector architecture: female module without contacts, 3-position, crimp termination with CK 4.0-ED contact type
• Unlimited moisture sensitivity level (MSL 1) suitable for standard storage and handling conditions

The 1414359 provides functional and electrical equivalence with enhanced compliance status and guaranteed availability for new installations and replacement applications.

Frequently Asked Questions (FAQ)

Q: Can the 1414359 be used as a direct replacement for the 1663226?

A: Yes. Both parts are female modules without contacts in the HEAVYCON® M series with identical electrical ratings (600V), temperature range (-40°C to 125°C), contact type (CK 4.0-ED), and flammability rating (UL94 V-0). The 1414359 is the active equivalent of the obsolete 1663226.

Q: What is the difference between RoHS and ROHS3 compliance?

A: ROHS3 represents the current iteration of RoHS compliance standards. The 1414359 meets ROHS3 requirements, which supersede earlier RoHS compliance levels. Both statuses indicate compliance with hazardous substance restrictions.

Q: Are there any mechanical differences between these parts?

A: The 1414359 specifies Polycarbonate (PC) housing material and Gray color, whereas the 1663226 does not provide these specifications. Both parts maintain identical mechanical compatibility as 3-position female modules within the HEAVYCON® M series.

Q: What is the current rating for these modules?

A: The 1414359 is rated for 42A. The 1663226 does not specify a current rating in available documentation.

Q: Are these parts suitable for high-temperature applications?

A: Yes. Both parts operate across the temperature range of -40°C to 125°C, supporting applications requiring extended thermal performance within this specification.

Q: What packaging options are available?

A: The 1414359 is supplied in Bulk packaging. The 1663226 packaging specification is not provided.
