Phoenix Contact 1663213 Equivalent & Substitute Parts

Part Overview

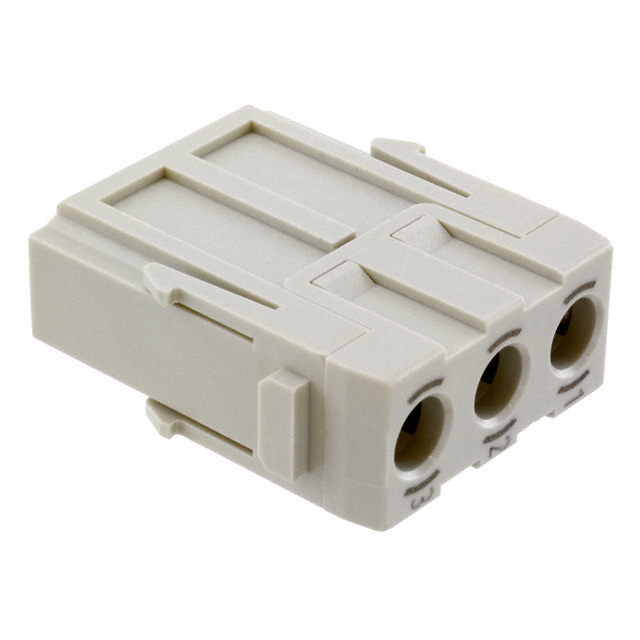

The Phoenix Contact 1663213 is a male module without contacts designed for heavy-duty connector applications. This component is part of the HEAVYCON® M series and features a 3-position crimp termination configuration rated for 600V operation across an extended temperature range of -40°C to 125°C. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations.

Substiute Parts

1663213

Phoenix ContactIn Stock: 11991663213 Datasheet

Current PartRFQ

1414358

Phoenix ContactIn Stock: 11251414358 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1663213 is determined by strict alignment with the following critical parameters:

• Connector Type: Module without Contacts (required match)
• Gender: Male (required match)
• Number of Positions: 3 (required match)
• Series: HEAVYCON® M (required match)
• Termination Style: Crimp (required match)
• Contact Type: CK 4.0-ED (required match)
• Voltage Rating: 600V (required match)
• Operating Temperature Range: -40°C to 125°C (required match)
• Material Flammability Rating: UL94 V-0 (required match)

The substitute part Phoenix Contact 1414358 satisfies all critical electrical and mechanical parameters, with the addition of specified current rating (42A), housing material (Polycarbonate), and color designation (Gray) that enhance functional definition without altering core compatibility.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414358 is the direct equivalent for applications currently utilizing the obsolete 1663213. Both components maintain identical electrical specifications (600V rating, CK 4.0-ED contact type) and mechanical configuration (3-position male crimp module). The 1414358 carries active product status with current manufacturing support and enhanced compliance documentation (ROHS3 Compliant, REACH Unaffected), providing supply chain continuity and regulatory alignment for new deployments and legacy system replacements.

Frequently Asked Questions (FAQ)

Q: Can the 1414358 directly replace the 1663213 in existing assemblies?

A: Yes. Both components share identical connector type, gender, position count, termination method, contact type, voltage rating, and operating temperature specifications. The 1414358 is the active production equivalent.

Q: What is the significance of the current rating (42A) specified for the 1414358?

A: The 1414358 includes a defined current rating of 42A, providing explicit electrical capacity documentation. This parameter was not specified in the original 1663213 documentation but does not alter the substitution relationship.

Q: Are there packaging differences between these parts?

A: The 1663213 packaging is unspecified in available documentation. The 1414358 is supplied in Bulk packaging. Verify packaging requirements for your procurement process.

Q: Does the Gray color designation of the 1414358 affect compatibility?

A: No. Color is a visual identifier and does not impact electrical or mechanical function. The color specification enhances product definition without affecting interchangeability.

Q: What compliance advantages does the 1414358 offer?

A: The 1414358 carries ROHS3 Compliant status and REACH Unaffected designation, providing enhanced regulatory documentation compared to the obsolete 1663213. Both maintain UL94 V-0 flammability rating and MSL 1 moisture sensitivity classification.
