TE Connectivity AMP Connectors 1658390-1 Equivalent & Substitute Parts

Part Overview

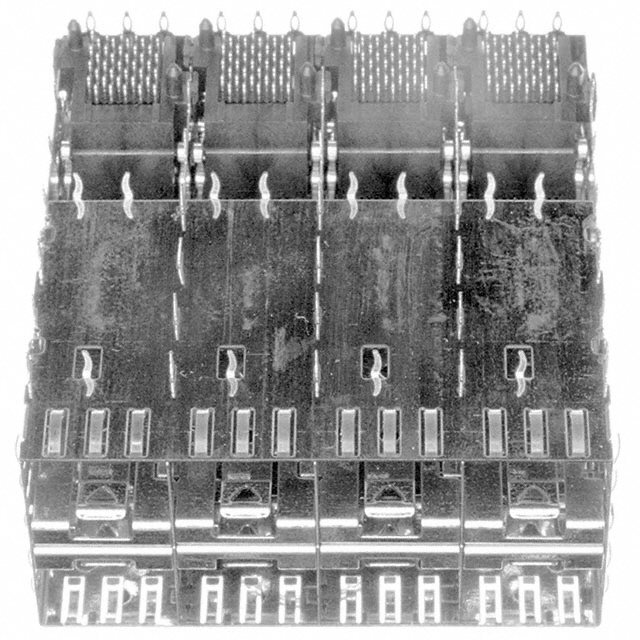

The TE Connectivity AMP Connectors 1658390-1 is a 160-position SFP receptacle with cage, ganged (2x4) configuration, designed for through-hole right-angle solder termination. This connector features board guide and EMI shielding for reliable signal integrity in high-density applications.

The 1658390-1 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for systems utilizing this connector footprint.

Substiute Parts

1658390-1

TE Connectivity AMP ConnectorsIn Stock: 14781658390-1 Datasheet

Current PartRFQ

0760465001

MolexIn Stock: 13450760465001 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1658390-1 is based on the following critical parameters that must align between the main part and substitute candidates:

Mandatory Matching Parameters:

• Number of Positions: 160 (20 x 8)
• Connector Style: Receptacle with Cage, Ganged (2x4)
• Mounting Type: Through Hole, Right Angle
• Features: Board Guide, EMI Shielded
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Allowable Variations:

• Connector Type: SFP to SFP+ (backward compatible protocol evolution)
• Termination Type: Solder to Press-Fit (both through-hole termination methods)
• Contact Finish and Finish Thickness: Variations permitted based on application requirements
• Packaging: Different packaging formats acceptable for equivalent functionality

The Molex 0760465001 meets all mandatory matching parameters while introducing SFP+ protocol capability and press-fit termination, making it a functional substitute for the obsolete 1658390-1.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement of Obsolete 1658390-1:

The Molex 0760465001 serves as the primary substitute for the obsolete TE Connectivity 1658390-1. Both connectors maintain identical physical form factors, position counts, and mounting configurations. The 0760465001 is currently in active production status, ensuring long-term supply chain availability.

Compliance Considerations:

Both the main part and substitute are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component procurement. Moisture sensitivity levels are identical at MSL 1 (Unlimited), indicating no special storage or handling requirements.

Termination Method Transition:

The primary difference between these connectors is the termination method: the 1658390-1 uses solder termination while the 0760465001 uses press-fit termination. Press-fit termination offers advantages in manufacturing efficiency and eliminates thermal stress associated with solder reflow processes. PCB design modifications are required to accommodate press-fit contact holes, which differ from solder through-hole specifications.

Protocol Enhancement:

The 0760465001 supports SFP+ protocol, which is backward compatible with SFP applications. This upgrade path provides enhanced signal integrity and future-proofing for systems requiring higher data rates.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0760465001 directly replace the TE Connectivity 1658390-1 without PCB modifications?

A: The connectors share identical external dimensions, mounting footprints, and position configurations. However, the termination method differs: the 1658390-1 requires solder through-holes while the 0760465001 requires press-fit contact holes. PCB redesign is necessary to accommodate the different termination specifications.

Q: What is the difference between SFP and SFP+ connector types?

A: SFP+ is an enhanced version of the SFP standard supporting higher data rates. The 0760465001 SFP+ receptacle is backward compatible with SFP modules, making it suitable for both legacy and next-generation applications.

Q: Are there any compliance or certification differences between these parts?

A: Both connectors are ROHS3 compliant and REACH unaffected. Moisture sensitivity levels are identical at MSL 1 (Unlimited). No special handling or storage requirements differentiate these parts from a compliance perspective.

Q: What advantages does press-fit termination offer over solder termination?

A: Press-fit termination eliminates thermal stress from solder reflow, reduces manufacturing process complexity, and improves contact reliability. The termination method selection depends on manufacturing capabilities and PCB design specifications.

Q: Does the Molex 0760465001 include additional features compared to the 1658390-1?

A: The 0760465001 includes a light pipe feature in addition to the board guide and EMI shielding present in the 1658390-1. The light pipe provides visual indication of connector status or signal presence.

Q: What is the contact finish specification for the 1658390-1?

A: Contact finish specifications are not provided for the 1658390-1. The Molex 0760465001 specifies gold plating at 30.0µin (0.76µm) thickness, which is standard for high-reliability SFP+ applications.

Q: Are both connectors available in the same packaging format?

A: The 1658390-1 packaging is not specified. The 0760465001 is supplied in tray packaging. Packaging format selection depends on production volume and handling requirements.
