Phoenix Contact 1645969 Equivalent & Substitute Parts

Part Overview

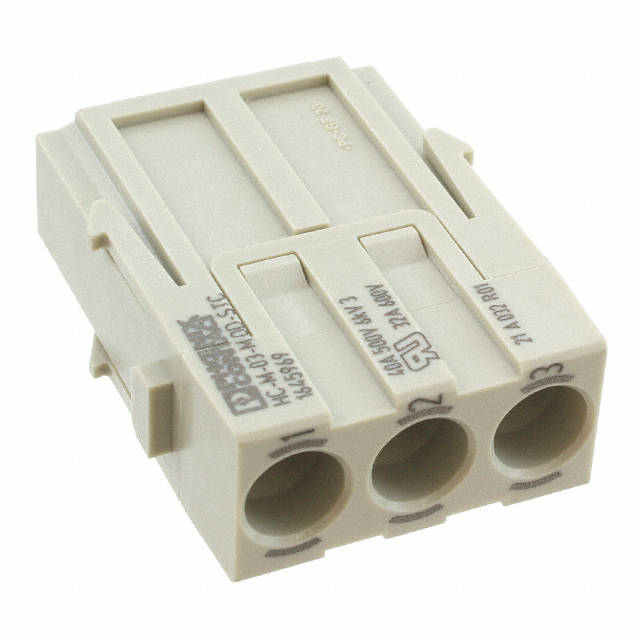

The Phoenix Contact 1645969 is a male module without contacts designed for heavy-duty connector applications. This component features a 3-position crimp termination configuration and operates within the HEAVYCON® M series. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. Substitute parts must maintain electrical performance, mechanical compatibility, and environmental operating specifications to ensure reliable system operation.

Substiute Parts

1645969

Phoenix ContactIn Stock: 10221645969 Datasheet

Current PartRFQ

1414358

Phoenix ContactIn Stock: 11251414358 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1645969 is determined by strict alignment with the following critical parameters:

• Connector Type & Series: Module without contacts within the HEAVYCON® M series
• Gender & Position Count: Male configuration with 3-position capacity
• Termination Method: Crimp termination compatible with CK 4.0-ED contact type
• Electrical Ratings: Minimum 600V voltage rating
• Environmental Specifications: Operating temperature range of -40°C to 125°C
• Material & Compliance: Polycarbonate housing with UL94 V-0 flammability rating and RoHS compliance

The substitute part Phoenix Contact 1414358 satisfies all substitution criteria. This part maintains identical connector architecture, electrical specifications, and environmental performance while offering active product status and enhanced inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414358 is the qualified substitute for the obsolete 1645969. Both components maintain identical electrical and mechanical specifications across all critical parameters. The 1414358 offers the additional advantage of active product status, ensuring long-term availability and supply chain continuity. The upgrade from RoHS Compliant to ROHS3 Compliant status on the substitute part reflects current regulatory alignment without affecting functional compatibility. Selection of the 1414358 is appropriate for replacement applications, new designs, and system upgrades requiring 3-position male crimp modules within the HEAVYCON® M series.

Frequently Asked Questions (FAQ)

Q: Can the 1414358 directly replace the 1645969 in existing assemblies?

A: Yes. Both parts share identical connector type, gender, position count, termination method, voltage rating, contact type, operating temperature range, housing material, and flammability rating. Direct mechanical and electrical compatibility is confirmed.

Q: What is the significance of the product status change from Obsolete to Active?

A: The 1414358 maintains active manufacturing status, ensuring continued availability and supply chain support. The 1645969, classified as obsolete, may face procurement challenges and limited inventory. Transition to the 1414358 is recommended for long-term system reliability.

Q: Are there differences in RoHS compliance between these parts?

A: The 1645969 carries RoHS Compliant status, while the 1414358 carries ROHS3 Compliant status. Both meet regulatory requirements. ROHS3 represents the current regulatory standard and indicates the substitute part aligns with contemporary compliance frameworks.

Q: Does the packaging difference affect compatibility?

A: Packaging format (bulk for 1414358 versus unspecified for 1645969) does not affect component functionality or mechanical compatibility. Packaging is a logistics consideration only.

Q: What contact type compatibility should be verified?

A: Both parts utilize the CK 4.0-ED contact type. Existing contact inventories and crimping tools compatible with CK 4.0-ED contacts are directly applicable to the substitute part.
