TE Connectivity 1-644020-0 Equivalent & Substitute Parts

Part Overview

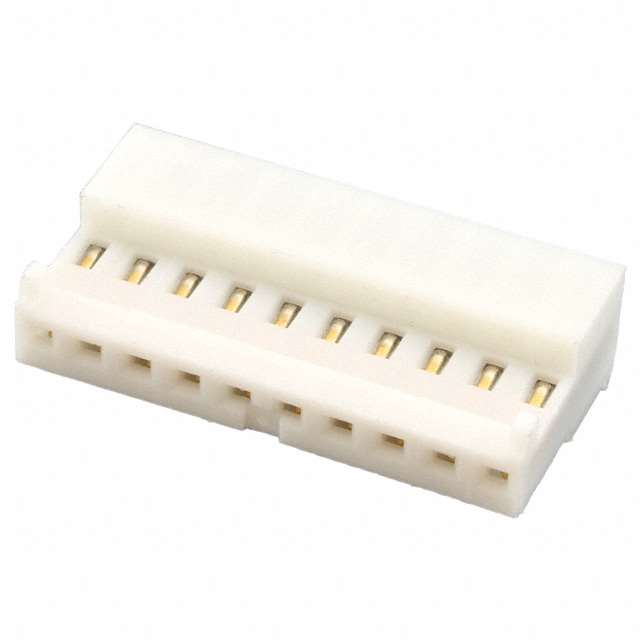

The TE Connectivity 1-644020-0 is a 10 Position Rectangular Receptacle Connector with IDC termination, gold-plated contacts, and 24 AWG wire gauge rating. This connector is part of the MTA-100 series and features a closed-end design with locking ramp fastening for free-hanging or right-angle mounting configurations.

The 1-644020-0 carries an obsolete product status, making it necessary to identify functionally equivalent alternatives for new designs and ongoing production requirements. Substitute parts maintain identical electrical and mechanical specifications while offering active product status and improved compliance certifications.

Substiute Parts

1-644020-0

TE Connectivity AMP ConnectorsIn Stock: 6871-644020-0 Datasheet

Current PartRFQ

4-644020-0

TE Connectivity AMP ConnectorsIn Stock: 11254-644020-0 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-644020-0 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain identical specifications in the following critical areas:

Electrical Parameters:

• 10-position configuration
• 0.100" (2.54mm) pitch spacing
• 24 AWG wire gauge capacity
• IDC cable termination method
• Gold contact finish with 30.0µin thickness

Mechanical Parameters:

• Female socket contact type
• Receptacle connector classification
• Free-hanging and right-angle mounting capability
• Locking ramp fastening mechanism
• Closed-end design
• White color
• MTA-100 series designation

Environmental & Compliance Parameters:

• Moisture Sensitivity Level 1 rating
• ECCN and HTSUS classifications

The substitute part 4-644020-0 satisfies all equivalence criteria and is classified as a direct manufacturer substitute within the MTA-100 rectangular connector family.

Parameter Comparison

Engineering Selection Recommendations

The 4-644020-0 is the direct equivalent substitute for the obsolete 1-644020-0. Both parts share identical electrical and mechanical specifications within the MTA-100 rectangular connector series.

Primary Selection Basis:

The 4-644020-0 is recommended for component selection due to its active product status. The 1-644020-0 is classified as obsolete and subject to discontinuation, making it unsuitable for new designs or long-term production planning.

Compliance Advantage:

The 4-644020-0 carries RoHS Compliant certification, whereas the 1-644020-0 is RoHS non-compliant. This distinction is significant for applications subject to RoHS regulatory requirements in the European Union and equivalent jurisdictions.

Inventory & Availability:

The 4-644020-0 is available in bulk packaging with 1017 pieces in stock, compared to 621 pieces of the obsolete variant. The active status ensures continued availability for production and replacement requirements.

Functional Interchangeability:

All electrical and mechanical parameters are identical between the two parts. The 4-644020-0 operates identically to the 1-644020-0 in IDC termination, contact resistance, mating cycles, and environmental performance. No circuit redesign or connector interface modification is required for substitution.

Frequently Asked Questions (FAQ)

Q: Are the 1-644020-0 and 4-644020-0 electrically interchangeable?

A: Yes. Both parts are 10-position receptacle connectors with identical pitch (0.100"), contact type (female socket), wire gauge (24 AWG), and IDC termination specifications. They operate identically in electrical performance and signal integrity.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and RoHS compliance. The 1-644020-0 is obsolete and RoHS non-compliant. The 4-644020-0 is active and RoHS Compliant. All functional specifications are identical.

Q: Can I use the 4-644020-0 as a direct replacement in existing designs?

A: Yes. The 4-644020-0 is a direct substitute with no design modifications required. It maintains identical mechanical dimensions, mounting configurations, and electrical characteristics.

Q: Does packaging differ between these parts?

A: The 1-644020-0 is supplied in standard packaging, while the 4-644020-0 is supplied in bulk packaging. Both contain the same connector component with identical specifications.

Q: Why should I transition from the 1-644020-0 to the 4-644020-0?

A: The 1-644020-0 is obsolete and subject to discontinuation. The 4-644020-0 ensures long-term availability, active manufacturer support, and RoHS compliance for regulatory adherence.

Q: Are the contact finish specifications identical?

A: Yes. Both parts feature gold-plated contacts with 30.0µin (0.76µm) thickness, ensuring equivalent corrosion resistance and electrical performance.

Q: What is the moisture sensitivity rating for both parts?

A: Both parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity constraints during storage or handling.

Q: Can these connectors accommodate both discrete and ribbon cable?

A: Yes. Both the 1-644020-0 and 4-644020-0 support discrete or ribbon cable termination via IDC method at 24 AWG wire gauge.
