Phoenix Contact 1642522 CONN BASE BOTTOM ENTRY SZB10 Equivalent & Substitute Parts

Part Overview

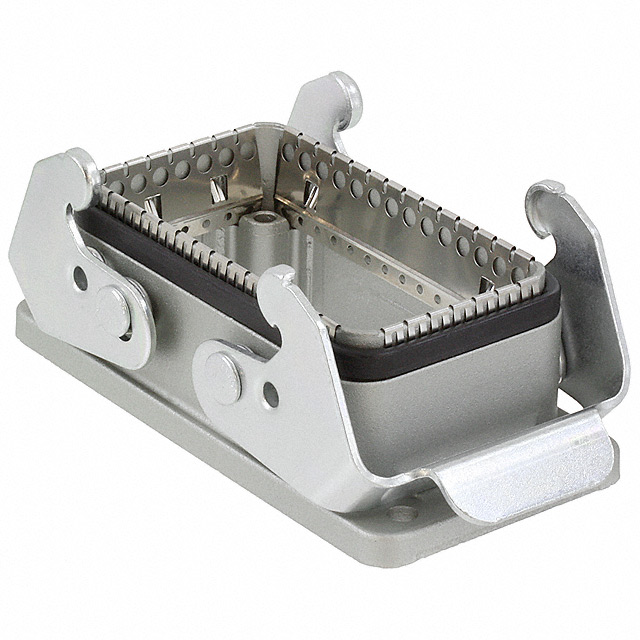

The Phoenix Contact 1642522 is a heavy duty connector base designed for panel mount applications with bottom entry configuration in the B10 size. This component operates within the HEAVYCON® B series and provides IP65 ingress protection suitable for dust-tight and water-resistant environments. The part is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and new design implementations. Substitute parts must maintain compatibility with the B10 connector interface while meeting or exceeding the original environmental and operational specifications.

Substiute Parts

1642522

Phoenix ContactIn Stock: 9231642522 Datasheet

Current PartRFQ

1411322

Phoenix ContactIn Stock: 12051411322 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1642522 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Connector type must be base panel mount configuration
• Style must be bottom entry
• Size must be B10 to ensure mechanical and electrical interface compatibility
• Housing material must be aluminum die cast to maintain structural and thermal properties
• Lock location must be locking clip (2) on base bottom for mechanical retention

Environmental & Operational Criteria:

• Ingress protection rating must be equal to or greater than IP65
• Operating temperature range must encompass or exceed -40°C ~ 100°C
• RoHS compliance status must be maintained or upgraded

The substitute part 1411322 meets all primary compatibility criteria and exceeds environmental specifications, qualifying it as a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1411322 is the qualified substitute for the obsolete 1642522. Selection is based on the following engineering factors:

Compliance & Availability: The 1411322 maintains active product status with confirmed inventory availability (1177 pcs), whereas the 1642522 is obsolete. Both parts carry RoHS compliance certifications appropriate to their respective product generations.

Environmental Performance: The substitute part provides enhanced ingress protection (IP66/IP67/IP69K versus IP65), extending operational capability to waterproof environments. The extended operating temperature range (-40°C ~ 125°C versus -40°C ~ 100°C) provides additional thermal margin for demanding applications.

Mechanical & Electrical Compatibility: Both parts maintain identical B10 connector interface specifications, bottom entry configuration, and locking clip retention mechanisms. Dimensional variations are minimal (93.00mm vs 94.60mm length; 48.00mm vs 53.00mm width; 30.30mm vs 30.50mm height), with the substitute accommodating salt water resistance features without compromising form factor compatibility.

Series Evolution: The transition from HEAVYCON® B to HEAVYCON® EVO represents a product line advancement incorporating improved environmental sealing and material durability while preserving core connector interface standards.

Frequently Asked Questions (FAQ)

Q: Can the 1411322 directly replace the 1642522 in existing installations?

A: Yes. Both parts share identical B10 connector interface specifications, bottom entry configuration, and panel mount base design. The mechanical and electrical compatibility is maintained across the substitution.

Q: What are the key differences between these parts?

A: The primary differences are ingress protection rating (IP65 versus IP66/IP67/IP69K), operating temperature range (-40°C ~ 100°C versus -40°C ~ 125°C), and product series (HEAVYCON® B versus HEAVYCON® EVO). The substitute provides enhanced environmental protection and thermal capability.

Q: Why is the 1642522 obsolete?

A: The 1642522 belongs to the HEAVYCON® B series, which has been superseded by the HEAVYCON® EVO series. The 1411322 represents the current generation equivalent with improved specifications.

Q: Are there dimensional compatibility concerns?

A: Dimensional differences are minor (width increases from 48.00mm to 53.00mm; length and height increase by approximately 0.5mm). These variations accommodate enhanced sealing features and do not affect panel mount interface compatibility.

Q: What certifications apply to the substitute part?

A: The 1411322 carries ROHS3 compliance and REACH unaffected status, representing current regulatory compliance standards. Both parts maintain EAR99 ECCN classification and identical HTSUS commodity codes.

Q: Is salt water resistance a critical feature for my application?

A: Salt water resistance is an additional feature of the 1411322 not present in the original 1642522. This feature provides enhanced corrosion protection in marine or coastal environments but does not affect compatibility in standard industrial applications.
