TE Connectivity 1-641191-0 Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-641191-0 is a 10 Position Rectangular Receptacle Connector with IDC termination, gold-plated contacts, and 24 AWG wire gauge capacity. This connector is part of the MTA-100 series and features a closed-end design with locking ramp fastening. The part is classified as obsolete, making identification of equivalent and substitute components necessary for ongoing system support and procurement planning.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Number of Positions	10
Pitch	0.100" (2.54mm)
Number of Rows	1
Contact Type	Female Socket
Wire Gauge	24 AWG
Cable Termination	IDC
Contact Finish	Gold
Mounting Type	Free Hanging (In-Line), Right Angle
Fastening Type	Locking Ramp
Features	Closed End
Color	White
Series	MTA-100

Substitute Part Grouping Explanation

Substitution of the 1-641191-0 is determined by strict equivalence across the following critical parameters:

Connector Type & Contact Configuration: Receptacle with female socket contacts
Position Count & Pitch: 10 positions at 0.100" (2.54mm) spacing
Termination Method: IDC (Insulation Displacement Connector) for discrete or ribbon cable
Wire Gauge Compatibility: 24 AWG
Contact Material & Finish: Gold plating at 15.0µin (0.38µm) thickness
Mechanical Interface: Free hanging (in-line) and right angle mounting with locking ramp fastening
Electrical & Environmental Ratings: Moisture Sensitivity Level 1 (unlimited), closed-end design

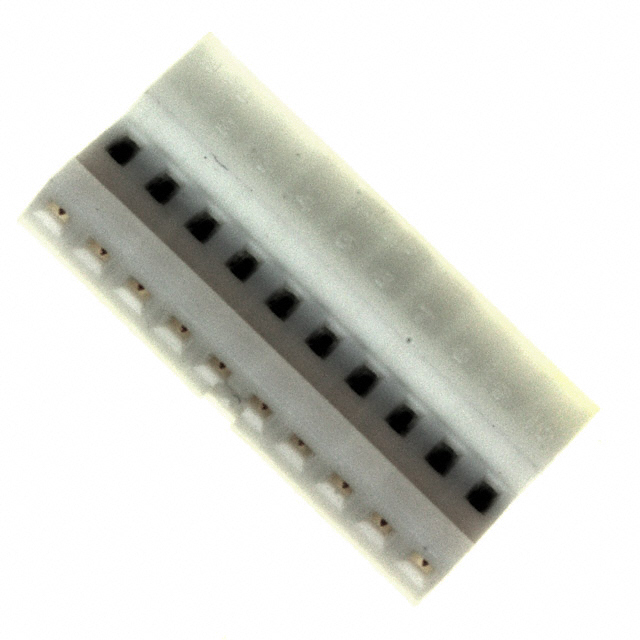

The substitute part 4-641191-0 maintains identical electrical and mechanical specifications while differing in product status and packaging configuration.

Parameter Comparison

Parameter	1-641191-0 (Main Part)	4-641191-0 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	MTA-100	MTA-100
Connector Type	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket
Number of Positions	10	10
Pitch	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	1	1
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Fastening Type	Locking Ramp	Locking Ramp
Cable Termination	IDC	IDC
Wire Type	Discrete or Ribbon Cable	Discrete or Ribbon Cable
Wire Gauge	24 AWG	24 AWG
Features	Closed End	Closed End
Contact Finish	Gold	Gold
Contact Finish Thickness	15.0µin (0.38µm)	15.0µin (0.38µm)
Color	White	White
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active
RoHS Status	Not applicable	RoHS Compliant
Packaging	Not specified	Bulk

Engineering Selection Recommendations

The TE Connectivity 4-641191-0 serves as the direct substitute for the obsolete 1-641191-0. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications across all critical parameters including connector type, position count, pitch, termination method, wire gauge, contact finish, and mounting configuration.

The primary distinction between these parts is product status: the 1-641191-0 is obsolete while the 4-641191-0 is active. The substitute part additionally carries RoHS Compliant certification, whereas the main part status is not applicable. Both parts satisfy Moisture Sensitivity Level 1 requirements and are classified under ECCN EAR99.

For new designs or ongoing procurement, the 4-641191-0 is the appropriate selection due to its active product status and RoHS compliance. For legacy system maintenance requiring the exact original part number, the 1-641191-0 remains available in inventory.

Frequently Asked Questions (FAQ)

Q: Can the 4-641191-0 be used as a direct replacement for the 1-641191-0?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical specifications for connector type, position count, pitch, contact configuration, termination method, wire gauge, contact finish, and mounting interface. The 4-641191-0 is the active production equivalent.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and compliance certification. The 1-641191-0 is obsolete and marked as not applicable for RoHS status. The 4-641191-0 is an active product with RoHS Compliant certification. Packaging differs as well, with the substitute supplied in bulk configuration.

Q: Are there any compatibility concerns when substituting the 4-641191-0 for the 1-641191-0?

A: No compatibility concerns exist. Both parts maintain identical electrical and mechanical interfaces. They are designed for the same IDC termination process, accept 24 AWG wire, and feature identical contact geometry, pitch, and fastening mechanisms.

Q: Does the RoHS Compliant status of the 4-641191-0 affect its performance?

A: No. RoHS compliance indicates adherence to material composition restrictions and does not alter electrical or mechanical performance. The 4-641191-0 maintains all functional specifications of the original part.

Q: What packaging is supplied with each part?

A: The 1-641191-0 packaging is not specified in available documentation. The 4-641191-0 is supplied in bulk packaging configuration.

Q: Are both parts suitable for IDC termination with discrete or ribbon cable?

A: Yes. Both the 1-641191-0 and 4-641191-0 support IDC termination with discrete or ribbon cable at 24 AWG wire gauge.
