TE Connectivity AMP Connectors 1-641126-4 Equivalent & Substitute Parts

Part Overview

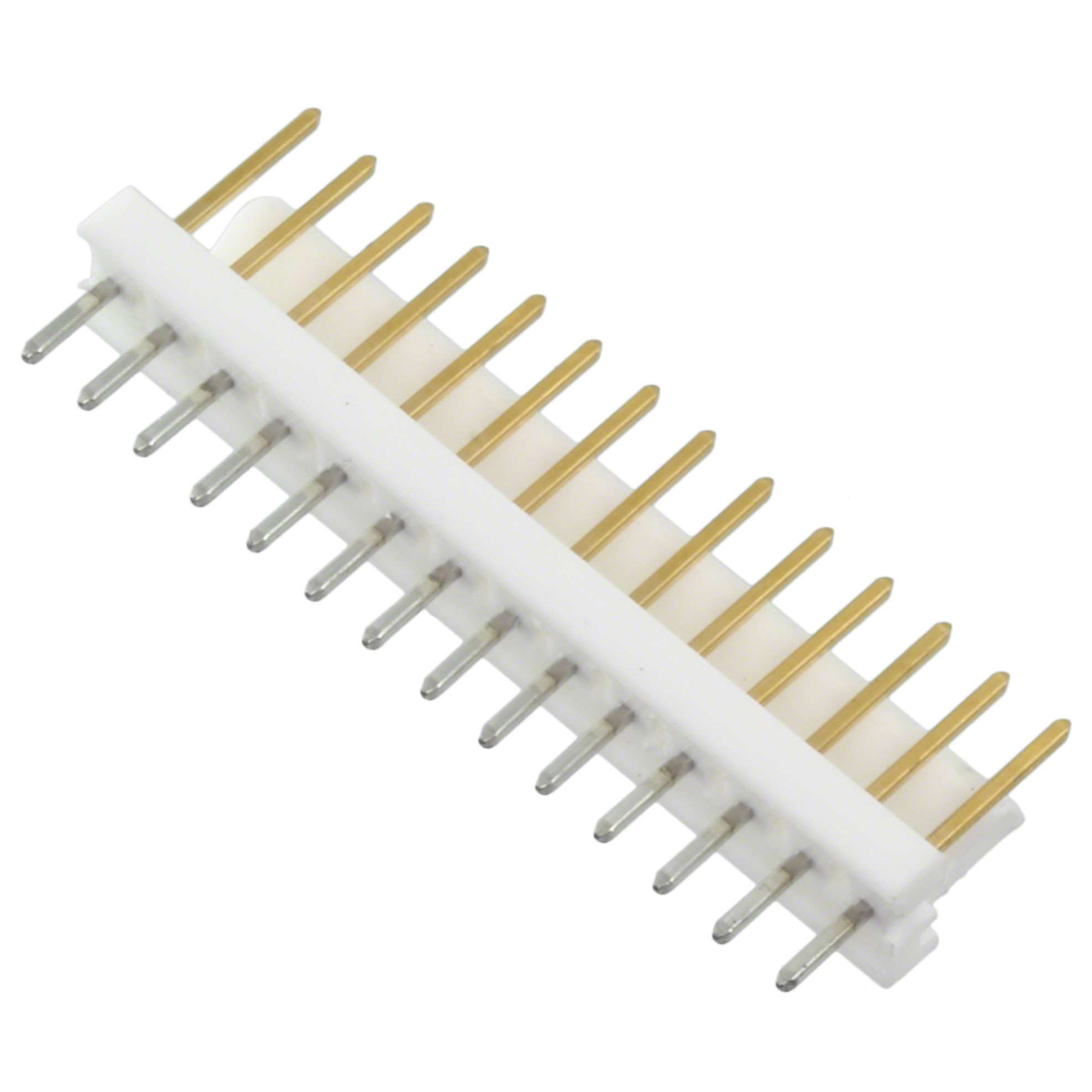

The TE Connectivity AMP Connectors 1-641126-4 is a rectangular connector header designed for through-hole mounting applications. This connector features a 14-position, single-row configuration with 0.100" (2.54mm) pitch spacing, suitable for board-to-cable/wire interconnections in general-purpose applications. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure ongoing component availability for production and field service requirements.

Substiute Parts

1-641126-4

TE Connectivity AMP ConnectorsIn Stock: 7571-641126-4 Datasheet

Current PartRFQ

4-641126-4

TE Connectivity AMP ConnectorsIn Stock: 8164-641126-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-641126-4 is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Pitch spacing: 0.100" (2.54mm)
• Number of positions: 14
• Voltage rating: 250VAC
• Contact type: Male Pin
• Contact finish: Gold (mating), Tin (post)

Mechanical Parameters:

• Connector type: Header
• Mounting type: Through Hole
• Shrouding configuration: Shrouded - 1 Wall
• Termination method: Solder
• Fastening type: Friction Lock

Environmental & Compliance Parameters:

• Operating temperature range: -55°C ~ 105°C
• Material flammability rating: UL94 V-0
• RoHS compliance status
• Moisture sensitivity level: 1 (Unlimited)

The substitute part 4-641126-4 maintains identical electrical and mechanical specifications while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The 4-641126-4 is a direct functional equivalent to the 1-641126-4 across all critical electrical, mechanical, and environmental parameters. The primary distinction is product status: the 1-641126-4 is classified as obsolete, while the 4-641126-4 maintains active status with TE Connectivity AMP Connectors.

Both parts comply with RoHS requirements, with the main part designated ROHS3 Compliant and the substitute designated RoHS Compliant. Both achieve UL94 V-0 material flammability rating and operate across the identical temperature range of -55°C to 105°C.

The 4-641126-4 is supplied in bulk packaging and demonstrates higher current inventory levels (748 pieces) compared to the main part (647 pieces), indicating superior long-term availability for production planning and field service applications.

For new designs, production transitions, and component replenishment, the 4-641126-4 is the appropriate selection due to its active product status and sustained manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can the 4-641126-4 be used as a direct replacement for the 1-641126-4 in existing designs?

A: Yes. The 4-641126-4 maintains identical electrical specifications (14 positions, 0.100" pitch, 250VAC rating), mechanical configuration (through-hole mounting, shrouded header, solder termination), and environmental performance (-55°C to 105°C operating range). All contact dimensions, materials, and finishes are equivalent.

Q: What is the significance of the different part number prefix (1- versus 4-)?

A: The prefix variation indicates different manufacturing or packaging designations within the TE Connectivity AMP Connectors product line. Both parts belong to the MTA-100 series and share identical functional specifications. The 4-641126-4 is supplied in bulk packaging.

Q: Are there compliance differences between the two parts?

A: Both parts comply with RoHS requirements and achieve UL94 V-0 material flammability rating. The main part is designated ROHS3 Compliant, while the substitute is designated RoHS Compliant. Both maintain Moisture Sensitivity Level 1 (Unlimited) classification.

Q: Why should the 4-641126-4 be selected over the 1-641126-4?

A: The 1-641126-4 is classified as obsolete, indicating discontinued production and limited long-term availability. The 4-641126-4 maintains active product status with TE Connectivity, ensuring sustained supply chain support, technical documentation access, and manufacturing consistency for current and future applications.

Q: Are the contact finishes identical between the two parts?

A: Yes. Both parts feature gold-plated mating contacts (15.0µin/0.38µm thickness) and tin-plated posts (150.0µin/3.81µm thickness) on copper alloy contact material.

Q: What is the packaging difference between these parts?

A: The 1-641126-4 packaging is not specified in available documentation. The 4-641126-4 is supplied in bulk packaging, which is standard for high-volume production and field service inventory applications.

Q: Can these connectors be used interchangeably in mating applications?

A: Yes. Both parts are shrouded single-wall headers with friction lock fastening, designed for board-to-cable/wire interconnection. They accept identical mating connectors and maintain equivalent electrical and mechanical performance in all general-purpose applications.
