TE Connectivity 1-640426-3 Rectangular Connector Equivalent & Substitute Parts

Part Overview

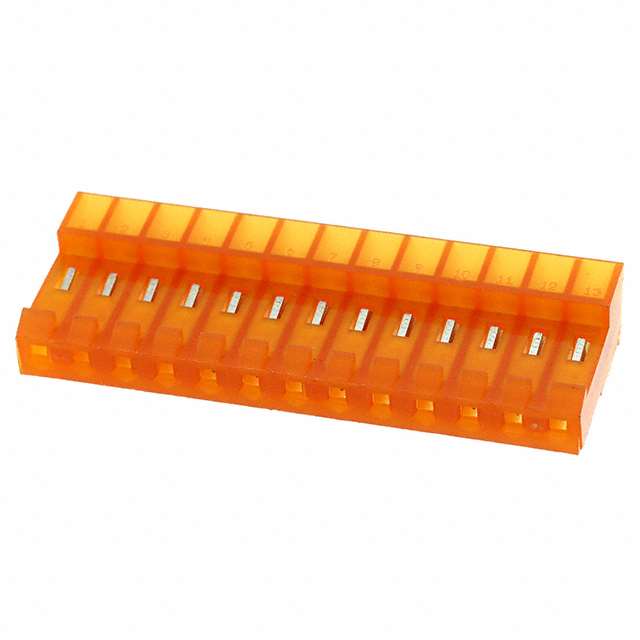

The TE Connectivity 1-640426-3 is a 13-position rectangular receptacle connector from the MTA-156 series, designed for IDC (Insulation Displacement Contact) termination with 18 AWG discrete wire. This connector features a tin contact finish, closed-end design, and free-hanging in-line mounting configuration with locking ramp fastening.

The 1-640426-3 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure continued availability for maintenance, repair, and new production applications where this connector type is specified.

Substiute Parts

1-640426-3

TE Connectivity AMP ConnectorsIn Stock: 8221-640426-3 Datasheet

Current PartRFQ

4-640426-3

TE Connectivity AMP ConnectorsIn Stock: 11114-640426-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 1-640426-3 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Receptacle with female socket contacts
• Position Count & Pitch: 13 positions at 0.156" (3.96mm) pitch
• Termination Method: IDC cable termination for 18 AWG discrete wire
• Mechanical Interface: Free-hanging in-line mounting with locking ramp fastening
• Contact Material & Finish: Tin plating at 80.0µin (2.03µm) thickness
• Series Designation: MTA-156 series compatibility

The substitute part 4-640426-3 maintains identical electrical and mechanical specifications across all these parameters, differing only in product status (active versus obsolete) and packaging configuration (bulk versus original packaging).

Parameter Comparison

Engineering Selection Recommendations

The 4-640426-3 serves as the direct functional equivalent to the obsolete 1-640426-3. Both parts share identical electrical and mechanical specifications within the MTA-156 rectangular connector series.

Product Status Consideration: The 1-640426-3 is classified as obsolete, while the 4-640426-3 maintains active product status. For new designs and ongoing production applications, the 4-640426-3 is the appropriate selection to ensure long-term component availability and supply chain continuity.

Compliance Status: The 4-640426-3 achieves ROHS3 compliance, whereas the 1-640426-3 is RoHS non-compliant. Applications subject to RoHS regulatory requirements must utilize the 4-640426-3. Both parts maintain identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Packaging Difference: The 1-640426-3 is supplied in original manufacturer packaging, while the 4-640426-3 is supplied in bulk packaging. This distinction affects inventory management and handling procedures but does not alter connector functionality or electrical performance.

Frequently Asked Questions (FAQ)

Q: Are the 1-640426-3 and 4-640426-3 electrically interchangeable?

A: Yes. Both connectors maintain identical electrical specifications including 13-position configuration, 0.156" pitch, tin contact finish at 80.0µin thickness, and IDC termination for 18 AWG discrete wire. They are electrically and mechanically interchangeable.

Q: What is the primary reason to substitute the 1-640426-3 with the 4-640426-3?

A: The 1-640426-3 carries obsolete product status, creating supply availability risk. The 4-640426-3 is an active product with confirmed inventory and ongoing manufacturer support, ensuring reliable procurement for current and future applications.

Q: Does the 4-640426-3 meet RoHS requirements?

A: Yes. The 4-640426-3 is ROHS3 compliant. The original 1-640426-3 is RoHS non-compliant. Applications requiring RoHS compliance must use the 4-640426-3.

Q: How does packaging differ between these parts?

A: The 1-640426-3 is supplied in original manufacturer packaging, while the 4-640426-3 is supplied in bulk packaging. Both contain identical connectors; packaging affects only handling and storage procedures.

Q: Are there any mechanical compatibility issues when substituting the 4-640426-3 for the 1-640426-3?

A: No. Both connectors share identical mechanical specifications: free-hanging in-line mounting, locking ramp fastening, closed-end design, and orange color. They mount and interface identically in existing applications.

Q: What is the moisture sensitivity level for both parts?

A: Both the 1-640426-3 and 4-640426-3 carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.

Q: Can the 4-640426-3 be used in legacy systems designed for the 1-640426-3?

A: Yes. The 4-640426-3 is a direct substitute with identical electrical and mechanical characteristics. It functions identically in all applications originally specified for the 1-640426-3.
