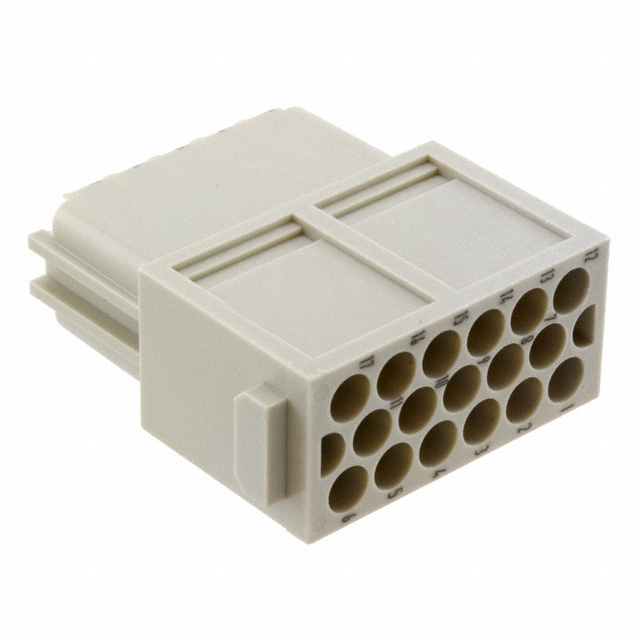

Phoenix Contact 1636486 Female Module 17 Position Crimp Connector

Part Overview

The Phoenix Contact 1636486 is a female module without contacts designed for 17-position crimp termination applications within the HEAVYCON® M series. This component functions as a connector housing assembly for heavy-duty industrial applications requiring reliable electrical connections in demanding environments.

The 1636486 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain system compatibility and ensure continued availability for new designs, repairs, and system upgrades where this connector type is specified.

Substiute Parts

1636486

Phoenix ContactIn Stock: 12491636486 Datasheet

Current PartRFQ

1414357

Phoenix ContactIn Stock: 15131414357 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1636486 is determined by the following critical parameters:

Core Compatibility Requirements:

• Connector Type: Module without Contacts
• Gender: Female
• Number of Positions: 17
• Termination Style: Crimp
• Contact Type: CK 1.6-ED
• Housing Material: Polycarbonate (PC)
• Operating Temperature Range: -40°C ~ 125°C
• Material Flammability Rating: UL94 V-0

The substitute part 1414357 maintains all core compatibility parameters. Variations in voltage rating, current rating, color designation, and product status do not prevent functional substitution when electrical specifications of the application permit.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414357 is the direct substitute for the obsolete 1636486. Both components share identical mechanical and electrical core specifications within the HEAVYCON® M series.

The 1414357 is classified as active product status, ensuring ongoing availability and supply chain continuity. Both parts maintain UL94 V-0 flammability certification and RoHS compliance, meeting current regulatory requirements.

The 1414357 operates at a lower voltage rating (160V versus 250V) and includes a specified current rating of 14A. Applications requiring the full 250V rating of the original part must evaluate whether the 160V specification of the substitute is acceptable for the intended circuit design.

Frequently Asked Questions (FAQ)

Q: Can the 1414357 directly replace the 1636486 in existing assemblies?

A: The 1414357 maintains identical mechanical fit, contact configuration, and termination compatibility. Substitution is mechanically and electrically feasible provided the application voltage requirement does not exceed 160V.

Q: What is the significance of the voltage rating difference?

A: The 1636486 is rated for 250V operation, while the 1414357 is rated for 160V. The voltage rating defines the maximum electrical potential the connector can safely withstand. Applications operating at or below 160V can use the 1414357 without restriction.

Q: Are there packaging differences between these parts?

A: The 1636486 packaging is not specified in available documentation. The 1414357 is supplied in bulk packaging. Confirm packaging requirements with your procurement specification.

Q: Why is the 1636486 obsolete?

A: Product obsolescence occurs when manufacturers discontinue production. The 1414357 represents the active equivalent within the same product family and series.

Q: Do both parts meet current compliance standards?

A: Both parts are RoHS compliant. The 1414357 carries ROHS3 designation, representing the current regulatory standard. Both maintain UL94 V-0 flammability certification.

Q: Is the contact type identical between both parts?

A: Yes. Both parts use CK 1.6-ED contact type, ensuring compatibility with existing contact assemblies and termination tooling.
