Rosenberger 162788 MCX Straight Jack PCB Coaxial Connector

Part Overview

The Rosenberger 162788 is an MCX connector jack designed for surface mount PCB applications. This female socket connector operates at 50 ohms impedance and is rated for frequencies up to 6 GHz. The connector features solder termination for both center contact and shield, with a snap-on fastening mechanism. The part is currently active in production with 1052 units in stock.

Equivalent and substitute parts are necessary when the primary part becomes unavailable, when alternative packaging formats are required, or when design specifications allow for compatible alternatives from different manufacturers. This reference provides parametric equivalents that maintain electrical and mechanical compatibility with the original Rosenberger 162788.

Substiute Parts

162788

RosenbergerIn Stock: 1155162788 Datasheet

Current PartRFQ

29K10H-40ML5

RosenbergerIn Stock: 162229K10H-40ML5 Datasheet

Parametric EquivalentRFQ

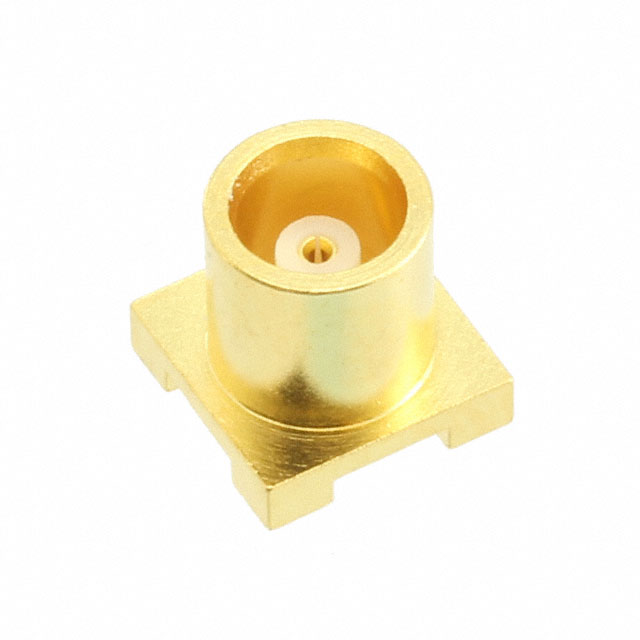

133-3711-202

Cinch Connectivity SolutionsIn Stock: 2515133-3711-202 Datasheet

Parametric EquivalentRFQ

2017.01.2510.003

IMS Connector SystemsIn Stock: 18122017.01.2510.003 Datasheet

Parametric EquivalentRFQ

82_MCX-S50-0-29/111_NM

Huber+Suhner, Inc.In Stock: 961082_MCX-S50-0-29/111_NM Datasheet

Parametric EquivalentRFQ

60612102111406

Würth ElektronikIn Stock: 124460612102111406 Datasheet

Parametric EquivalentRFQ

919-384J-51PT

Amphenol RFIn Stock: 1803919-384J-51PT Datasheet

Parametric EquivalentRFQ

966851-1

TE Connectivity AMP ConnectorsIn Stock: 15734966851-1 Datasheet

Parametric EquivalentRFQ

MCX-J-P-H-ST-SM1-TR

Samtec Inc.In Stock: 2141MCX-J-P-H-ST-SM1-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Rosenberger 162788 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: MCX
• Connector Type: Jack, Female Socket
• Impedance: 50 Ohms
• Mounting Type: Surface Mount
• Contact Termination: Solder
• Shield Termination: Solder
• Fastening Type: Snap-On
• Frequency Maximum: 6 GHz
• Number of Ports: 1

Compatible Variation Parameters:

• Dielectric Material: PTFE, LCP, or PFA/PTFE combinations are acceptable
• Center Contact Material: Beryllium Copper or Phosphor Bronze
• Operating Temperature Range: Must encompass or exceed -55°C to 155°C
• Voltage Rating: Must meet or exceed 335 V
• Mating Cycles: Must meet or exceed 500 cycles
• Packaging Format: Tape & Reel (TR) or Cut Tape (CT)
• Manufacturer: Any qualified supplier

All substitute parts listed maintain full electrical and mechanical compatibility with the original part within these parameters.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitutes (Full Compatibility):

The following parts are recommended as primary substitutes based on active product status, full ROHS3 compliance, and matching or exceeding all electrical specifications:

• Rosenberger 29K10H-40ML5: Active status, ROHS3 compliant, identical operating temperature and voltage ratings. Dielectric material differs (LCP vs. PTFE) but maintains electrical performance within specification.
• Cinch Connectivity Solutions 133-3711-202: Active status, ROHS3 compliant, exceeds operating temperature range (-65°C to 165°C), identical voltage rating, PTFE dielectric.
• Würth Elektronik 60612102111406: Active status, ROHS3 compliant, identical operating temperature and voltage ratings, PTFE dielectric, includes insertion loss specification (0.25 dB).
• Amphenol RF 919-384J-51PT: Active status, ROHS3 compliant, exceeds operating temperature range (-65°C to 165°C), PTFE dielectric.
• Samtec Inc. MCX-J-P-H-ST-SM1-TR: Active status, ROHS3 compliant, identical voltage rating, PTFE dielectric, operates to -65°C to 125°C.

Secondary Substitutes (Conditional Use):

• Huber+Suhner 82_MCX-S50-0-29/111_NM: Active status, ROHS3 compliant, but voltage rating (170 V) is below the original specification (335 V). Use only in applications where voltage requirements do not exceed 170 V. Available in Cut Tape packaging.
• IMS Connector Systems 2017.01.2510.003: Active status, but voltage rating (250 V) is below the original specification (335 V) and operating temperature maximum is limited to 125°C. Use only in applications where these reduced specifications are acceptable.

Not Recommended:

• TE Connectivity 966851-1: Product status is obsolete. While electrical specifications are compatible, obsolete status indicates discontinued production and potential supply chain limitations.

Frequently Asked Questions (FAQ)

Q: Can I substitute the Rosenberger 162788 with any MCX connector jack?

A: No. Substitution requires matching specific parameters: 50 ohm impedance, female socket jack configuration, surface mount solder termination, snap-on fastening, and 6 GHz frequency rating. The connector style, type, and termination method must be identical.

Q: What is the difference between PTFE and LCP dielectric materials in these connectors?

A: Both PTFE and LCP are acceptable dielectric materials for MCX connectors operating at 6 GHz. PTFE (polytetrafluoroethylene) is the traditional material, while LCP (liquid crystal polymer) offers similar electrical performance. The choice depends on application-specific requirements not specified in this reference.

Q: Why do some substitute parts have lower voltage ratings?

A: The Huber+Suhner 82_MCX-S50-0-29/111_NM (170 V) and IMS Connector Systems 2017.01.2510.003 (250 V) have reduced voltage ratings compared to the original 335 V specification. These parts are suitable only for applications where the actual operating voltage does not exceed their rated values. Verify application requirements before selection.

Q: What is the significance of product status (Active vs. Obsolete)?

A: Active status indicates the part is currently in production and available from the manufacturer. Obsolete status indicates production has been discontinued. The TE Connectivity 966851-1 is obsolete, meaning future availability cannot be guaranteed. Active parts are preferred for new designs and long-term supply assurance.

Q: Does packaging format affect electrical performance?

A: No. Tape & Reel (TR) and Cut Tape (CT) packaging formats do not affect electrical or mechanical performance. The choice depends on assembly process requirements and quantity needs. Tape & Reel is standard for automated assembly, while Cut Tape is used for smaller quantities or manual assembly.

Q: Are all substitute parts ROHS3 compliant?

A: Most substitute parts are ROHS3 compliant. The IMS Connector Systems 2017.01.2510.003 does not specify RoHS status in the provided data. Verify compliance requirements for your specific application before selection.

Q: Can I use the TE Connectivity 966851-1 despite its obsolete status?

A: The TE Connectivity 966851-1 meets all electrical and mechanical specifications and is currently in stock (15,701 units). However, obsolete status indicates no future production. Use this part only if immediate availability is critical and long-term supply is not required.

Q: What does Moisture Sensitivity Level (MSL) 1 mean?

A: MSL 1 indicates unlimited shelf life without moisture control requirements. All listed parts have MSL 1 rating, meaning they can be stored without special humidity or temperature controls.

Q: How do I verify compatibility before ordering a substitute part?

A: Confirm that the substitute part matches all mandatory parameters: MCX connector style, jack female socket type, 50 ohm impedance, surface mount solder termination, snap-on fastening, and 6 GHz frequency rating. Verify that operating temperature range and voltage rating meet or exceed your application requirements.
