Weidmüller 1624920000 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Weidmüller 1624920000 is a 2-position terminal block header with male pins, featuring a shrouded 4-side design and 0.300" (7.62mm) vertical pitch for through-hole mounting. This component is part of the Omnimate SL series and maintains Active product status. Alternative equivalent parts may be required due to inventory availability, regional sourcing constraints, or specific application requirements where substitute specifications align with design parameters.

Key Parameters

Parameter	Value
Number of Positions	2
Pitch	0.300" (7.62mm)
Header Orientation	Vertical
Type	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole
Termination Style	Solder
Current Rating (UL)	15 A
Voltage Rating (UL)	300 V
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Insulation Height	0.472" (12.00mm)
RoHS Status	RoHS Compliant
MSL Rating	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 1624920000 is determined by strict alignment of the following critical parameters:

Electrical Compatibility: Current rating (UL) of 15 A minimum and voltage rating (UL) of 300 V minimum
Mechanical Compatibility: 2-position configuration, 0.300" (7.62mm) pitch, vertical orientation, shrouded 4-side design, through-hole mounting
Material & Contact Specifications: Copper alloy contacts with tin mating finish, UL94 V-0 flammability rating
Physical Dimensions: Insulation height of 0.472" (12.00mm)
Regulatory Compliance: RoHS compliance status and MSL rating of 1

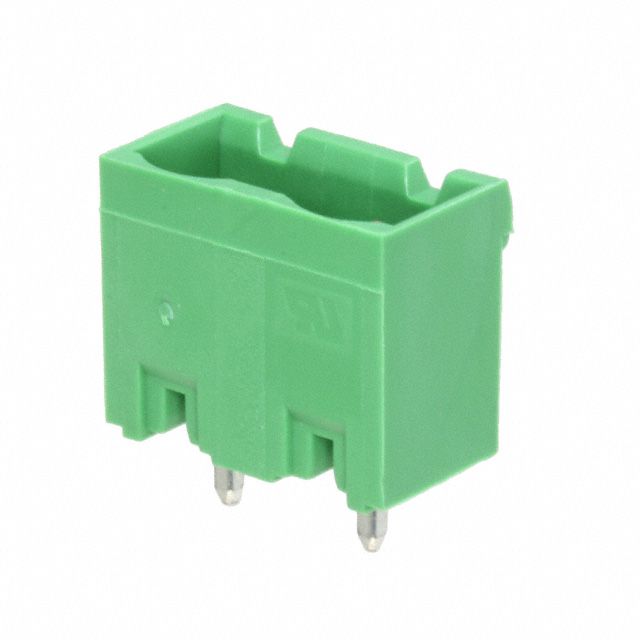

The TE Connectivity AMP Connectors part number 796980-2 meets all substitution criteria within these defined parameters.

Parameter Comparison

Parameter	Weidmüller 1624920000	TE Connectivity 796980-2	Match Status
Manufacturer	Weidmüller	TE Connectivity AMP Connectors	Different Manufacturer
Number of Positions	2	2	Match
Pitch	0.300" (7.62mm)	0.300" (7.62mm)	Match
Header Orientation	Vertical	Vertical	Match
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Match
Mounting Type	Through Hole	Through Hole	Match
Termination Style	Solder	Solder	Match
Current Rating (UL)	15 A	15 A	Match
Voltage Rating (UL)	300 V	300 V	Match
Material Flammability Rating	UL94 V-0	UL94 V-0	Match
Contact Material	Copper Alloy	Copper Alloy	Match
Contact Mating Finish	Tin	Tin	Match
Insulation Height	0.472" (12.00mm)	0.472" (12.00mm)	Match
Operating Temperature Range	-20°C ~ 100°C	-40°C ~ 110°C	TE Connectivity has wider range
Housing Material	Polybutylene Terephthalate (PBT)	Polyamide (PA66), Nylon 6/6	Different Material
Contact Tail Length	0.177" (4.50mm)	0.138" (4.60mm)	Different Length
RoHS Status	RoHS Compliant	ROHS3 Compliant	Both Compliant
MSL Rating	1 (Unlimited)	1 (Unlimited)	Match
Product Status	Active	Active	Match

Engineering Selection Recommendations

Both the Weidmüller 1624920000 and TE Connectivity 796980-2 maintain Active product status and meet all critical electrical and mechanical substitution criteria. Selection between these parts should be based on:

Weidmüller 1624920000: Select when PBT housing material is specified, contact tail length of 0.177" (4.50mm) is required, or operating temperature range of -20°C to 100°C is sufficient. RoHS Compliant certification applies.

TE Connectivity 796980-2: Select when PA66/Nylon 6/6 housing material is acceptable, contact tail length of 0.138" (4.60mm) is compatible with PCB layout, or extended operating temperature range of -40°C to 110°C is required. ROHS3 Compliant certification applies.

Both parts carry identical electrical ratings (15 A UL, 300 V UL), UL94 V-0 flammability rating, and MSL 1 moisture sensitivity level. Mechanical compatibility is confirmed for 2-position, 0.300" (7.62mm) pitch, vertical through-hole applications with shrouded 4-side design.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 796980-2 be used as a direct replacement for Weidmüller 1624920000?

A: Yes, within the constraints of contact tail length and housing material differences. The TE Connectivity part has a shorter contact tail (0.138" vs 0.177") and different housing material (PA66 vs PBT). Verify PCB pad spacing and mechanical clearance requirements before substitution.

Q: What are the key differences between these two parts?

A: The primary differences are contact tail length (0.138" for TE Connectivity versus 0.177" for Weidmüller), housing material (PA66/Nylon 6/6 versus PBT), and operating temperature range (-40°C to 110°C versus -20°C to 100°C). All electrical ratings, pitch, position count, and flammability ratings are identical.

Q: Are both parts RoHS compliant?

A: Yes. Weidmüller 1624920000 is RoHS Compliant, and TE Connectivity 796980-2 is ROHS3 Compliant. Both meet RoHS requirements.

Q: What is the significance of the different housing materials?

A: Weidmüller uses Polybutylene Terephthalate (PBT) while TE Connectivity uses Polyamide (PA66/Nylon 6/6). Both materials meet UL94 V-0 flammability requirements. Material selection may affect mechanical properties, chemical resistance, and thermal characteristics in specific applications.

Q: Does the contact tail length difference affect electrical performance?

A: No. The contact tail length difference (0.138" versus 0.177") does not affect electrical performance. However, it impacts PCB pad spacing and through-hole depth requirements. Verify compatibility with your PCB design before substitution.

Q: Are both parts suitable for 15 A at 300 V applications?

A: Yes. Both parts are rated for 15 A (UL) and 300 V (UL), making them electrically equivalent for this specification.

Q: What is MSL 1 rating?

A: MSL (Moisture Sensitivity Level) 1 indicates unlimited shelf life with no special moisture control requirements during storage or handling. Both parts carry this rating.
