Weidmüller 1624370000 Terminal Block Header - Equivalent & Substitute Parts

Part Overview

The Weidmüller 1624370000 is a 2-position terminal block header with male pins, shrouded design, and 0.300" (7.62mm) pitch in 90° right-angle through-hole configuration. This component is part of the Omnimate SL series and maintains active product status. Substitute parts may be required due to inventory constraints, regional availability, or end-of-life considerations for discontinued alternatives.

Key Parameters

Parameter	Value
Number of Positions	2
Pitch	0.300" (7.62mm)
Header Orientation	90°, Right Angle
Type	Header, Male Pins, Shrouded (4 Side)
Mounting Type	Through Hole
Termination Style	Solder
Current - UL	15 A
Voltage - UL	300 V
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Mating Finish	Tin
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the Weidmüller 1624370000 is determined by the following critical parameters:

Electrical Compatibility: Current rating (UL: 15 A minimum), voltage rating (UL: 300 V minimum), and contact material (Copper Alloy)
Mechanical Compatibility: 2-position configuration, 0.300" (7.62mm) pitch, 90° right-angle orientation, male pins with 4-side shrouding, through-hole solder termination
Material & Safety: UL94 V-0 flammability rating, tin contact mating finish
Regulatory Compliance: RoHS compliance status

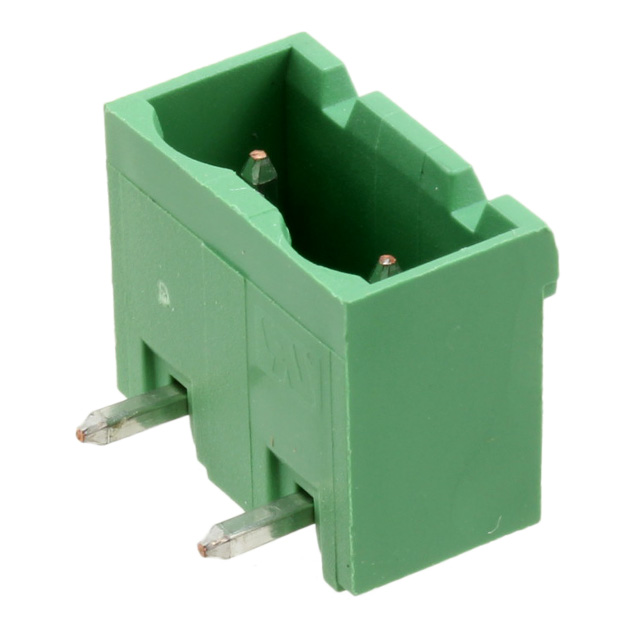

The TE Connectivity AMP Connectors 282966-2 meets all critical electrical and mechanical parameters required for direct substitution.

Parameter Comparison

Parameter	Weidmüller 1624370000	TE Connectivity 282966-2	Match Status
Manufacturer	Weidmüller	TE Connectivity AMP Connectors	Different
Number of Positions	2	2	Match
Pitch	0.300" (7.62mm)	0.300" (7.62mm)	Match
Header Orientation	90°, Right Angle	90°, Right Angle	Match
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Match
Mounting Type	Through Hole	Through Hole	Match
Termination Style	Solder	Solder	Match
Current - UL	15 A	15 A	Match
Voltage - UL	300 V	300 V	Match
Material Flammability Rating	UL94 V-0	UL94 V-0	Match
Contact Material	Copper Alloy	Copper Alloy	Match
Contact Mating Finish	Tin	Tin	Match
RoHS Status	RoHS Compliant	ROHS3 Compliant	Match
Product Status	Active	Discontinued at DiGi Electronics	Different
Housing Material	Polybutylene Terephthalate (PBT)	Polyamide (PA66), Nylon 6/6	Different
Operating Temperature	-50°C ~ 100°C	-40°C ~ 110°C	Partial Match
Contact Tail Length	0.126" (3.20mm)	0.138" (4.60mm)	Minor Difference
Insulation Height	0.335" (8.51mm)	0.329" (8.36mm)	Minor Difference

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 282966-2 is electrically and mechanically equivalent to the Weidmüller 1624370000 for applications requiring a 2-position, 0.300" pitch, 90° right-angle terminal block header with 15 A UL current rating and 300 V UL voltage rating.

Primary Consideration: The TE Connectivity 282966-2 is discontinued at DiGi Electronics. The Weidmüller 1624370000 maintains active product status and is the preferred selection for new designs and ongoing production requirements.

Material Difference: The substitute uses Polyamide (PA66) housing versus Polybutylene Terephthalate (PBT) in the primary part. Both materials meet UL94 V-0 flammability requirements. Housing material selection should be verified against specific application thermal and chemical exposure requirements.

Dimensional Variations: Contact tail length and insulation height show minor differences (0.012" and 0.006" respectively). These variations are within typical manufacturing tolerances for this connector class and do not affect electrical performance or standard PCB footprint compatibility.

Temperature Range: The TE Connectivity part supports -40°C to 110°C versus -50°C to 100°C for the Weidmüller part. Application operating temperature requirements should be confirmed within these ranges.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 282966-2 be used as a direct replacement for the Weidmüller 1624370000?

A: Yes, for applications within the specified electrical ratings (15 A UL, 300 V UL) and mechanical requirements (2-position, 0.300" pitch, 90° right-angle, through-hole solder termination). The substitute meets all critical compatibility parameters. However, the Weidmüller part is recommended for new designs due to active product status.

Q: What are the key differences between these two parts?

A: The primary differences are manufacturer, housing material (PBT versus PA66), operating temperature range (-50°C to 100°C versus -40°C to 110°C), and minor dimensional variations in contact tail length and insulation height. Electrical ratings and mechanical configuration are identical.

Q: Are there any PCB footprint compatibility concerns?

A: No. The 0.300" (7.62mm) pitch, through-hole solder termination, and 90° right-angle orientation are identical. Minor differences in contact tail length (0.012") and insulation height (0.006") do not affect standard PCB footprint compatibility.

Q: Which part should be selected for new product designs?

A: The Weidmüller 1624370000 is the recommended choice for new designs, as it maintains active product status. The TE Connectivity 282966-2 is discontinued and should be used only when inventory constraints or specific application requirements necessitate substitution.

Q: Does the housing material difference affect performance?

A: Both PBT and PA66 materials meet UL94 V-0 flammability requirements. Material selection should be verified against specific application requirements for thermal stability, chemical resistance, and mechanical stress conditions.
