Phoenix Contact 1618261 Equivalent & Substitute Parts

Part Overview

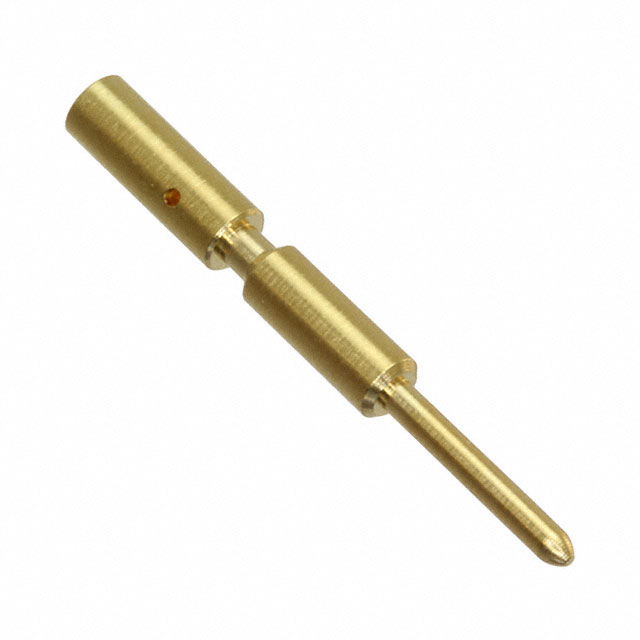

The Phoenix Contact 1618261 is a circular connector contact pin with 1.0mm size, designed for signal applications in the ST series. This component features crimp termination with gold plating on a copper zinc alloy base. The part is classified as obsolete, which necessitates identification of active equivalent components to maintain supply chain continuity and ensure long-term availability for new designs and field replacements.

Substiute Parts

1618261

Phoenix ContactIn Stock: 10001618261 Datasheet

Current PartRFQ

1618458

Phoenix ContactIn Stock: 13921618458 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1618458 qualifies as a direct substitute based on the following critical parameters:

• Contact Size: 1.0mm (identical)
• Contact Type: Pin (identical)
• Contact Termination: Crimp (identical)
• Series: ST (identical)
• Wire Gauge Range: 0.25 ~ 1.0mm² (encompasses the original 0.5 ~ 1.0mm² range)
• MSL Rating: 1 (Unlimited) (identical)
• ECCN Classification: EAR99 (identical)
• HTSUS Code: 8536.90.4000 (identical)

The 1618458 is an active product with improved compliance status (ROHS3 Compliant and REACH Affected designation), providing enhanced regulatory alignment for current manufacturing environments.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1618458 is the direct equivalent for applications currently using the 1618261. Selection is based on:

• Identical mechanical and electrical interface specifications (contact size, termination method, series compatibility)
• Active product status ensuring ongoing availability and supply chain support
• Enhanced regulatory compliance (ROHS3 Compliant with REACH Affected status)
• Expanded wire gauge compatibility (0.25 ~ 1.0mm²) providing broader application flexibility
• Identical MSL and export classification parameters

The transition from 1618261 to 1618458 presents no functional or compatibility constraints for existing circuit designs.

Frequently Asked Questions (FAQ)

Q: Can the 1618458 be used as a direct replacement for the 1618261 in existing assemblies?

A: Yes. Both components share identical contact size (1.0mm), termination method (crimp), series designation (ST), and signal pin configuration. The 1618458 is mechanically and electrically interchangeable.

Q: What is the significance of the expanded wire gauge range in the 1618458?

A: The 1618458 supports 0.25 ~ 1.0mm² wire gauges compared to the original 0.5 ~ 1.0mm² range. This expanded range provides compatibility with a broader selection of wire sizes without affecting applications using the original 0.5 ~ 1.0mm² specification.

Q: Why is the 1618261 listed as obsolete?

A: Product obsolescence reflects Phoenix Contact's lifecycle management. The 1618458 represents the current active equivalent within the ST series pin contact portfolio.

Q: Are there packaging differences between these components?

A: The 1618261 packaging specification is not provided. The 1618458 is supplied in bulk packaging, which is standard for individual contact pins in this category.

Q: Do compliance certifications differ between the two parts?

A: The 1618261 carries RoHS Compliant status. The 1618458 carries ROHS3 Compliant status with REACH Affected designation, reflecting current regulatory requirements. Both maintain identical MSL ratings and export classifications.
