Phoenix Contact 1605005 Equivalent & Substitute Parts

Part Overview

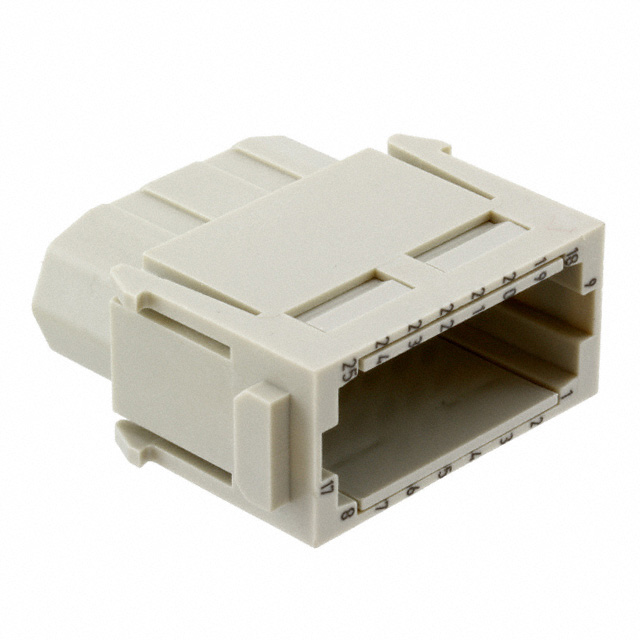

The Phoenix Contact 1605005 is a female module without contacts for heavy duty connectors, part of the HEAVYCON® M series. This 25-position crimp termination component is designed for applications requiring robust electrical connections with a 50V voltage rating and 5A current capacity. The part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations.

Substiute Parts

1605005

Phoenix ContactIn Stock: 12431605005 Datasheet

Current PartRFQ

1414375

Phoenix ContactIn Stock: 11601414375 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1605005 is determined by the following critical parameters:

Core Compatibility Parameters:

• Connector type: Module without contacts
• Gender: Female
• Number of positions: 25
• Termination style: Crimp
• Voltage rating: 50V minimum
• Operating temperature range: -40°C to 125°C
• Housing material: Polycarbonate (PC)
• Material flammability rating: UL94 V-0

The substitute part Phoenix Contact 1414375 maintains compatibility across all core parameters. Variations in current rating (4A versus 5A) and contact type designation reflect design evolution within the HEAVYCON® M series while preserving mechanical and electrical interchangeability for the module housing itself.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414375 is the designated substitute for the obsolete 1605005. Both components share identical mechanical and electrical specifications across all critical parameters: 25-position female crimp module configuration, 50V voltage rating, identical operating temperature range, and UL94 V-0 flammability compliance.

The 1414375 offers the advantage of active product status, ensuring continued availability and supply chain reliability. The component carries ROHS3 compliance, representing current regulatory alignment. The current rating differential (4A versus 5A) reflects design iteration within the HEAVYCON® M series; applications operating at or below 4A will experience full compatibility.

Both components maintain identical housing material specifications and moisture sensitivity ratings, supporting direct mechanical interchange in existing connector assemblies.

Frequently Asked Questions (FAQ)

Q: Can the 1414375 directly replace the 1605005 in existing assemblies?

A: Yes. Both components are 25-position female crimp modules within the HEAVYCON® M series with identical mechanical dimensions, housing material, and electrical ratings at 50V. Direct mechanical substitution is supported.

Q: What is the significance of the current rating difference (5A versus 4A)?

A: The 1605005 is rated for 5A maximum current, while the 1414375 is rated for 4A. Applications designed for operation at 4A or below will function identically with either component. Applications requiring sustained current above 4A should retain the original 1605005 specification or consult Phoenix Contact for alternative solutions.

Q: Why is the 1605005 listed as obsolete?

A: Product obsolescence reflects Phoenix Contact's lifecycle management. The 1414375 represents the current active equivalent within the HEAVYCON® M series, offering improved compliance status and continued manufacturing support.

Q: Are there packaging differences between these components?

A: The 1605005 is supplied in standard packaging, while the 1414375 is supplied in bulk packaging. Both are suitable for production integration; packaging selection depends on procurement and inventory management requirements.

Q: Do both components meet current regulatory requirements?

A: Both components are RoHS compliant. The 1414375 carries ROHS3 certification, representing alignment with current regulatory standards. Both maintain UL94 V-0 flammability ratings and unlimited moisture sensitivity level (MSL 1).
