Phoenix Contact 1605002 Heavy Duty Connector Module - Equivalent & Substitute Parts

Part Overview

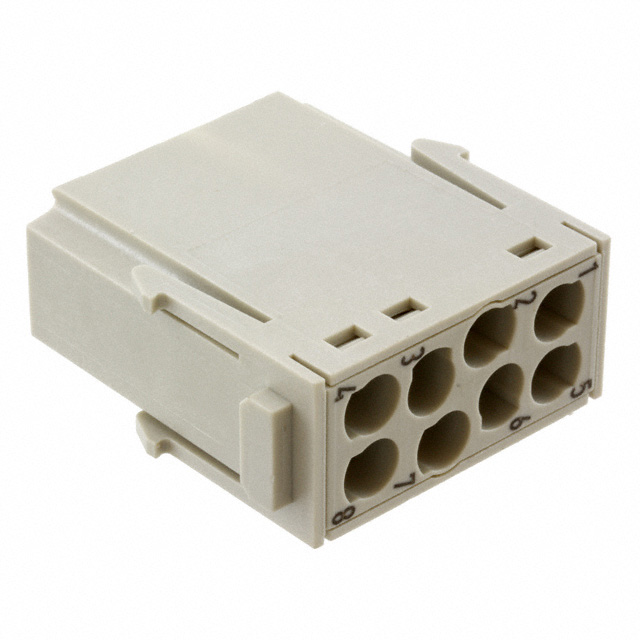

The Phoenix Contact 1605002 is a male module without contacts for the HEAVYCON® M series heavy duty connector system. This component is designed for 8-position crimp termination applications with a 600V voltage rating and 16A current capacity. The part is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system maintenance and new design implementations. The HEAVYCON® M series provides robust connectivity solutions for industrial applications requiring reliable heavy duty connector modules.

Substiute Parts

1605002

Phoenix ContactIn Stock: 11471605002 Datasheet

Current PartRFQ

1414370

Phoenix ContactIn Stock: 10251414370 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The Phoenix Contact 1414370 qualifies as a direct substitute for the 1605002 based on the following critical parameters that determine functional compatibility:

Core Compatibility Parameters:

• Connector Type: Both are module without contacts
• Gender: Both are male modules
• Number of Positions: Both accommodate 8 positions
• Termination Style: Both use crimp termination
• Contact Type: Both use CK 2.5-ED contacts
• Operating Temperature Range: Both operate across -40°C to 125°C
• Housing Material: Both use Polycarbonate (PC)
• Material Flammability Rating: Both meet UL94 V-0
• Series: Both belong to HEAVYCON® M series

The 1414370 represents an active product status alternative to the obsolete 1605002, maintaining mechanical and electrical compatibility while offering enhanced electrical performance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1414370 is the appropriate substitute for the obsolete 1605002 based on product lifecycle and compliance status. The 1414370 maintains active product status within the HEAVYCON® M series, ensuring continued manufacturer support and availability. Both components meet UL94 V-0 flammability requirements and maintain unlimited moisture sensitivity classification.

The 1414370 provides enhanced current handling capacity at 20A compared to the 1605002 at 16A, while operating at a reduced voltage rating of 400V versus 600V. The substitution is mechanically and electrically compatible for applications operating within the 400V and 20A envelope. The 1414370 carries ROHS3 compliance, representing current regulatory alignment.

Frequently Asked Questions (FAQ)

Q: Can the 1414370 directly replace the 1605002 in existing assemblies?

A: The 1414370 is mechanically and electrically compatible with the 1605002 for applications operating within 400V and 20A specifications. Both components share identical connector type, gender, position count, termination style, contact type, temperature range, housing material, and flammability rating within the HEAVYCON® M series.

Q: What are the key differences between these two modules?

A: The primary differences are voltage rating (600V for 1605002 versus 400V for 1414370), current rating (16A for 1605002 versus 20A for 1414370), product status (obsolete versus active), RoHS compliance generation (RoHS Compliant versus ROHS3 Compliant), and color specification (unspecified versus gray).

Q: Why is the 1605002 listed as obsolete?

A: The 1605002 has reached end-of-life status within Phoenix Contact's product portfolio. The 1414370 represents the active alternative within the HEAVYCON® M series for 8-position male crimp modules.

Q: Are there packaging differences between these parts?

A: The 1605002 packaging is unspecified, while the 1414370 is supplied in bulk packaging.

Q: What compliance certifications apply to both parts?

A: Both components meet UL94 V-0 material flammability requirements and carry unlimited moisture sensitivity classification (MSL 1). The 1414370 carries current ROHS3 compliance, while the 1605002 carries RoHS compliance.

Q: Can the 1414370 be used in applications requiring 600V operation?

A: No. The 1414370 is rated for 400V maximum. Applications requiring 600V operation must use components rated for that voltage specification.
