TE Connectivity 160341-2 Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 160341-2 is a non-insulated ring terminal connector designed for circular crimp termination on 16-20 AWG wire. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing procurement and design applications. The 160341-2 features brass construction with tin contact finish, suitable for free-hanging in-line mounting configurations. Due to its obsolete status, substitute parts with compatible electrical and mechanical parameters are required for system continuity and component availability.

Substiute Parts

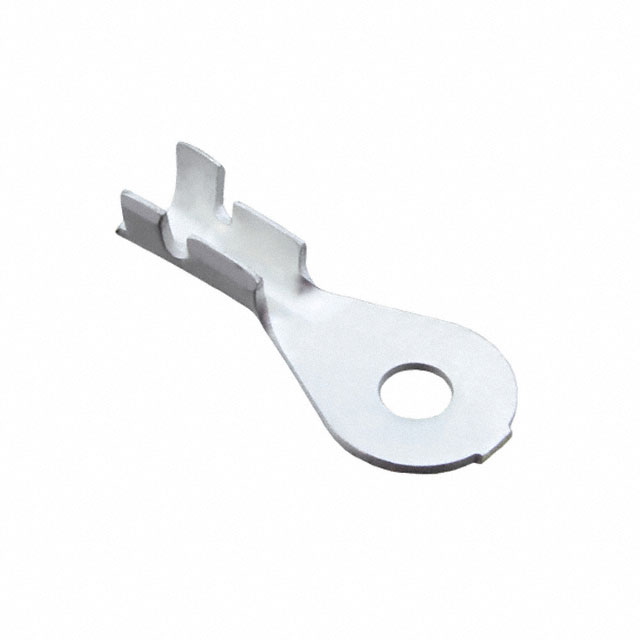

160341-2

TE Connectivity AMP ConnectorsIn Stock: 948160341-2 Datasheet

Current PartRFQ

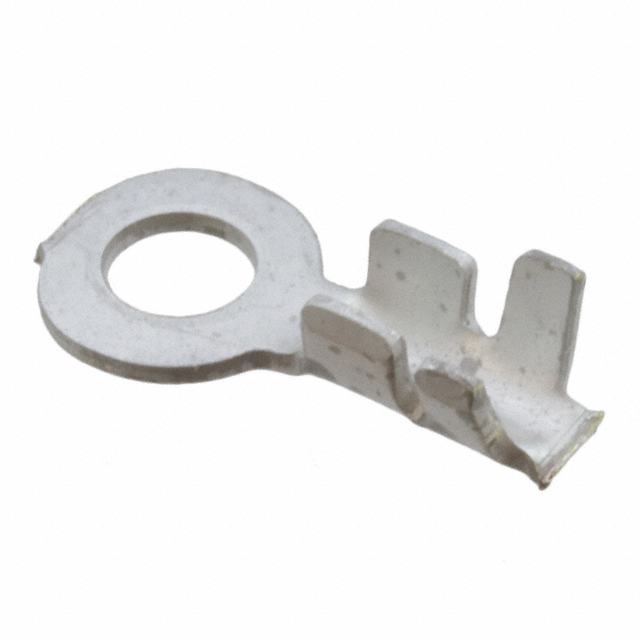

160344-2

TE Connectivity AMP ConnectorsIn Stock: 379009160344-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 160341-2 is based on the following critical parameters that determine functional compatibility:

Wire Gauge Compatibility: The 160341-2 accommodates 16-20 AWG wire. Substitute parts must support wire gauges within or overlapping this range to ensure proper crimp contact and electrical continuity.

Terminal Type and Geometry: Both the main part and substitutes must feature circular ring terminal geometry with crimp termination to maintain mechanical and electrical interface consistency.

Contact Material and Finish: Brass construction with tin finish is the baseline specification. Substitute parts must maintain identical contact material and finish to ensure corrosion resistance and electrical performance equivalence.

Insulation Classification: The 160341-2 is non-insulated. Substitute parts must maintain non-insulated construction to preserve the original design intent and application requirements.

Mounting Configuration: Free-hanging in-line mounting is the specified mounting type. Substitutes must support identical mounting methodology.

Compliance and Certifications: RoHS3 compliance and MSL 1 rating are mandatory for substitute parts to meet regulatory and environmental requirements.

The TE Connectivity 160344-2 qualifies as a substitute based on overlapping wire gauge range (15-20 AWG), identical terminal type (circular), matching contact material and finish (brass/tin), non-insulated construction, and equivalent compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The 160341-2 is classified as obsolete, while the 160344-2 maintains active product status with substantial inventory availability (378,978 pieces). Active status ensures continued manufacturing support, quality assurance, and supply chain reliability.

Compliance Alignment: Both parts meet RoHS compliance requirements and carry MSL 1 ratings, confirming equivalent environmental and moisture sensitivity performance. The 160344-2 holds RoHS Compliant certification while the 160341-2 specifies ROHS3 Compliant status, both satisfying current regulatory frameworks.

Wire Gauge Overlap: The 160344-2 supports 15-20 AWG wire, encompassing the full 16-20 AWG range of the 160341-2. This overlap ensures electrical compatibility for applications utilizing 16-20 AWG conductors.

Mechanical Geometry Differences: The 160344-2 exhibits reduced overall dimensions (0.461" length versus 0.791" length; 0.244" width versus 0.342" width) and incorporates an M3 stud specification. These dimensional differences reflect design optimization while maintaining functional equivalence for circular ring terminal applications.

Material and Finish Consistency: Identical brass construction with tin contact finish ensures equivalent corrosion resistance, electrical conductivity, and long-term reliability performance.

Frequently Asked Questions (FAQ)

Q: Can the 160344-2 directly replace the 160341-2 in existing designs?

A: The 160344-2 qualifies as a functional substitute based on matching terminal type (circular), identical contact material and finish (brass/tin), overlapping wire gauge range (15-20 AWG includes 16-20 AWG), and equivalent compliance certifications. However, the 160344-2 incorporates an M3 stud specification and exhibits reduced overall dimensions. Physical space constraints and stud size requirements in the application must be evaluated before substitution.

Q: What is the significance of the M3 stud specification on the 160344-2?

A: The M3 stud represents a metric 3mm threaded connection point. The 160341-2 does not specify a stud size, indicating a different mounting interface. Applications requiring specific stud sizes must confirm compatibility with the M3 specification before implementing the 160344-2 as a substitute.

Q: Are there wire gauge limitations when substituting the 160341-2 with the 160344-2?

A: The 160344-2 supports 15-20 AWG wire, which encompasses the full 16-20 AWG specification of the 160341-2. Applications utilizing 16-20 AWG conductors fall within the compatible range. Applications requiring 15 AWG wire can utilize the 160344-2 but not the original 160341-2.

Q: How do the dimensional differences between these parts affect substitution?

A: The 160344-2 is significantly smaller in overall length (0.461" versus 0.791") and width (0.244" versus 0.342"). These dimensional reductions may affect fit in space-constrained applications or assemblies designed specifically for the 160341-2 geometry. Physical layout verification is necessary before substitution.

Q: What packaging format is available for the 160344-2?

A: The 160344-2 is supplied in Cut Tape (CT) packaging, suitable for automated assembly processes and component handling. The 160341-2 packaging format is not specified in the available data.

Q: Do both parts meet current regulatory requirements?

A: Yes. The 160341-2 holds ROHS3 Compliant certification, and the 160344-2 holds RoHS Compliant certification. Both certifications satisfy current regulatory frameworks. Both parts carry MSL 1 (Unlimited) ratings, indicating no moisture sensitivity restrictions.

Q: What is the inventory status for these parts?

A: The 160341-2 is obsolete with 872 pieces available as new original stock. The 160344-2 is active with 378,978 pieces in inventory, providing superior long-term availability and supply chain continuity.
