TE Connectivity 1601068-1 Magnetic Connector Terminal Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1601068-1 is an IDC magnetic connector terminal designed for wire gauges 18-34 AWG with quick connect termination. This component is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system integration. The terminal features a 0.187-inch quick connect interface and operates within the Siameze connector series. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct functional replacement without circuit redesign or system modification.

Substiute Parts

1601068-1

TE Connectivity AMP ConnectorsIn Stock: 8471601068-1 Datasheet

Current PartRFQ

1601013-1

TE Connectivity AMP ConnectorsIn Stock: 7851601013-1 Datasheet

SimilarRFQ

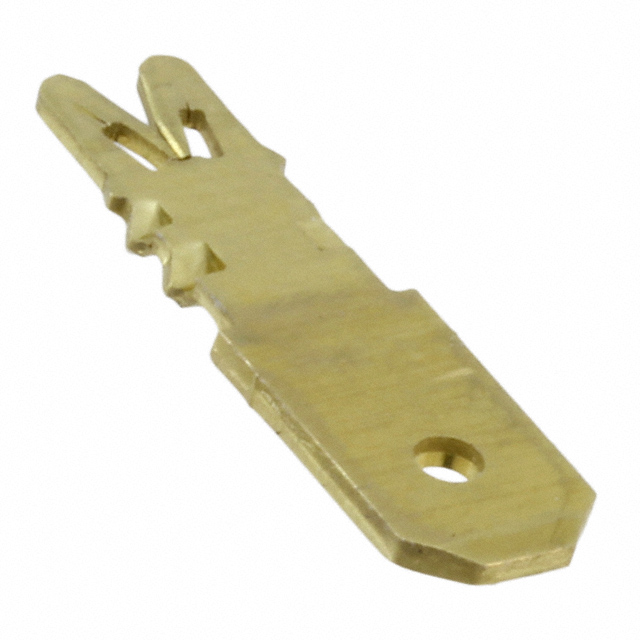

4-1601035-1

TE Connectivity AMP ConnectorsIn Stock: 46944-1601035-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 1601068-1 are qualified based on the following critical parameters that determine functional equivalence:

Electrical Compatibility Parameters:

• Wire gauge range: 18-34 AWG
• Termination interface: Quick Connect (QC 0.187)
• Terminal type: IDC Terminal
• Series designation: Siameze

Mechanical Compatibility Parameters:

• Connector style: Siameze
• Contact interface: 0.187-inch quick connect specification

Regulatory & Compliance Parameters:

• RoHS compliance status
• Moisture sensitivity level: MSL 1
• ECCN and HTSUS classifications

All substitute parts listed maintain identical specifications across these parameters. Packaging format and product status (active versus obsolete) do not affect electrical or mechanical substitutability but influence procurement availability and lead time considerations.

Parameter Comparison

Engineering Selection Recommendations

1601013-1 Selection Criteria: The 1601013-1 maintains full electrical and mechanical compatibility with the 1601068-1. This part is active in production status and carries RoHS compliance certification. Packaging is supplied in Tape & Reel format, suitable for automated assembly processes. Current inventory availability is 742 pieces.

4-1601035-1 Selection Criteria: The 4-1601035-1 provides equivalent functionality with ROHS3 compliance and REACH unaffected status. This part is active in production and supplied in bulk packaging format. Current inventory availability is 4634 pieces, providing higher stock levels for sustained procurement requirements.

Compliance Considerations: Both substitute parts satisfy RoHS requirements. The 1601013-1 carries standard RoHS compliance, while 4-1601035-1 carries ROHS3 compliance. Both parts maintain MSL 1 rating and identical ECCN/HTSUS classifications. Selection between substitutes should be based on packaging requirements and inventory availability rather than electrical performance, as all parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can 1601013-1 and 4-1601035-1 be used interchangeably with 1601068-1?

A: Yes. Both substitute parts maintain identical wire gauge (18-34 AWG), termination method (Quick Connect 0.187), terminal type (IDC), and series designation (Siameze). Electrical and mechanical compatibility is complete.

Q: What is the difference between the substitute parts?

A: The primary differences are packaging format and inventory levels. The 1601013-1 is supplied in Tape & Reel packaging suitable for automated assembly, while 4-1601035-1 is supplied in bulk packaging. Both are active production parts with equivalent electrical specifications.

Q: Does RoHS compliance differ between the substitutes?

A: The 1601013-1 carries standard RoHS compliance, while 4-1601035-1 carries ROHS3 compliance. Both satisfy RoHS requirements. Selection should be based on specific regulatory requirements for your application.

Q: Are there packaging considerations for system integration?

A: Yes. The 1601013-1 Tape & Reel packaging is optimized for high-volume automated assembly operations. The 4-1601035-1 bulk packaging is suitable for manual assembly or lower-volume applications. Packaging selection does not affect terminal performance.

Q: What is the MSL rating for these terminals?

A: All three parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions during storage or handling.

Q: Can I mix substitute parts in the same assembly?

A: Yes. Since both substitutes maintain identical electrical and mechanical specifications, they can be used together in the same system without compatibility issues.
