TE Connectivity AMP Connectors 1601005-1 Equivalent & Substitute Parts

Part Overview

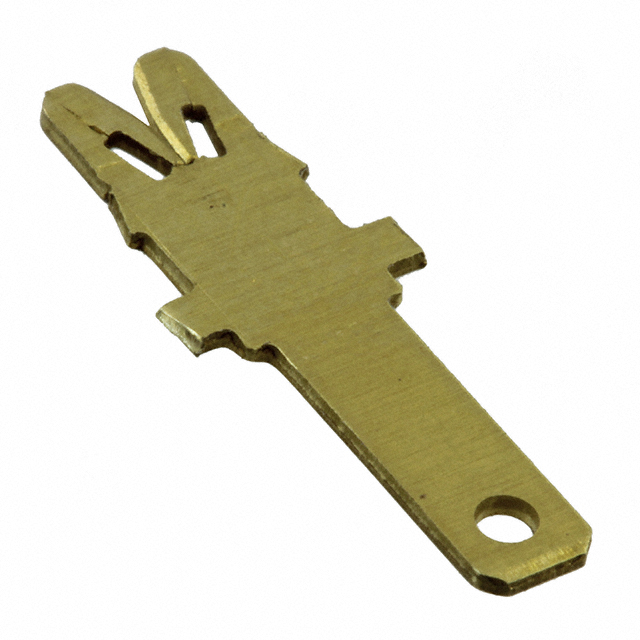

The TE Connectivity AMP Connectors 1601005-1 is a magnetic connector terminal designed for quick connect applications in the Siameze series. This component is classified as an IDC (Insulation Displacement Connector) terminal with a wire gauge range of 18-34 AWG and features a 0.110 quick connect interface. The part is currently listed as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity and support ongoing applications requiring this terminal type and electrical specification.

Substiute Parts

1601005-1

TE Connectivity AMP ConnectorsIn Stock: 9321601005-1 Datasheet

Current PartRFQ

1601005-2

TE Connectivity AMP ConnectorsIn Stock: 10271601005-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1601005-1 terminal is determined by strict equivalence across the following critical parameters:

Electrical Compatibility Parameters:

• Wire gauge range: 18-34 AWG
• Termination method: Quick Connect
• Quick connect interface specification: 0.110

Mechanical Compatibility Parameters:

• Terminal type: IDC Terminal
• Series designation: Siameze
• Connector style: Siameze

Regulatory & Compliance Parameters:

• RoHS3 Compliance
• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN classification: EAR99
• HTSUS code: 8536.90.4000

The substitute part 1601005-2 maintains identical electrical and mechanical specifications while differing only in product status (active versus obsolete) and packaging configuration (Tape & Reel versus unspecified). This substitution preserves all functional and compliance requirements for direct component replacement.

Parameter Comparison

Engineering Selection Recommendations

The 1601005-2 terminal serves as the direct active equivalent for the obsolete 1601005-1. Selection of the 1601005-2 is supported by the following engineering criteria:

Functional Equivalence: Both parts maintain identical electrical specifications (18-34 AWG wire gauge, 0.110 quick connect interface) and mechanical design (IDC terminal, Siameze series). No functional degradation or performance variation occurs with substitution.

Regulatory Compliance: The 1601005-2 maintains full ROHS3 compliance, identical moisture sensitivity classification (MSL 1), and matching export control designations (EAR99, HTSUS 8536.90.4000). No compliance gaps exist between the main part and substitute.

Supply Chain Status: The 1601005-2 is classified as active with confirmed inventory availability (1002 pieces in stock), whereas the 1601005-1 is obsolete. Transition to the 1601005-2 ensures continued component availability and supply chain reliability.

Packaging Consideration: The 1601005-2 is supplied in Tape & Reel (TR) packaging, which is standard for high-volume terminal applications and provides improved handling and automated assembly compatibility compared to bulk packaging configurations.

Frequently Asked Questions (FAQ)

Q: Can the 1601005-2 be used as a direct replacement for the 1601005-1 in existing designs?

A: Yes. The 1601005-2 is electrically and mechanically identical to the 1601005-1 across all specified parameters. Wire gauge range (18-34 AWG), quick connect termination method (0.110 interface), terminal type (IDC), and series designation (Siameze) are identical. Direct substitution is supported without design modification.

Q: What is the difference between the 1601005-1 and 1601005-2?

A: The primary differences are product status and packaging. The 1601005-1 is obsolete with unspecified packaging, while the 1601005-2 is active and supplied in Tape & Reel (TR) format. All electrical, mechanical, and compliance specifications are identical.

Q: Does the Tape & Reel packaging of the 1601005-2 affect compatibility?

A: No. Tape & Reel packaging is a supply and handling format that does not affect the terminal's electrical or mechanical performance. The component itself remains identical to the bulk-packaged version.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts carry identical RoHS3 compliance status, Moisture Sensitivity Level 1 (Unlimited), ECCN classification (EAR99), and HTSUS code (8536.90.4000). No compliance gaps or restrictions apply to substitution.

Q: Why is the 1601005-1 listed as obsolete?

A: Obsolescence status indicates that the 1601005-1 is no longer in active production. The 1601005-2 represents the current active equivalent and is the recommended source for new procurement.

Q: What wire gauges are supported by the 1601005-2?

A: The 1601005-2 supports wire gauges from 18 AWG to 34 AWG, identical to the 1601005-1 specification.

Q: Is the 0.110 quick connect interface standardized across both parts?

A: Yes. Both the 1601005-1 and 1601005-2 feature the identical 0.110 quick connect interface specification, ensuring mechanical and electrical compatibility with mating connectors designed for this interface.
