Phoenix Contact 1585702 Heavy Duty Connector Module - Equivalent & Substitute Parts

Part Overview

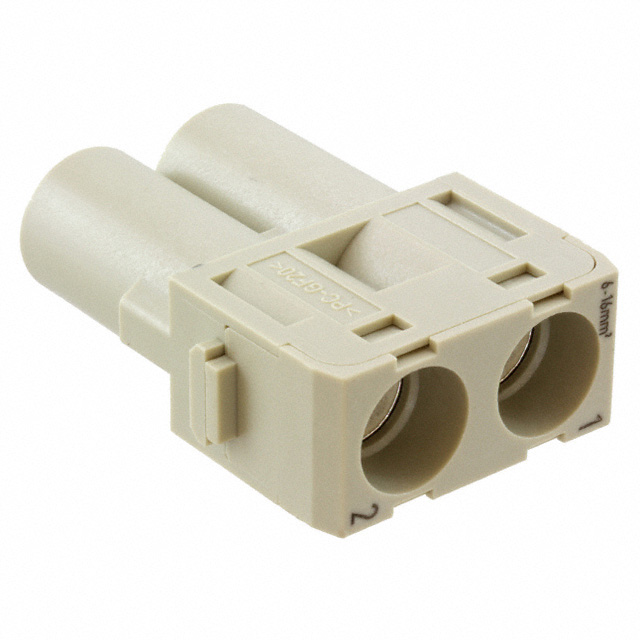

The Phoenix Contact 1585702 is a male module connector with 2 positions and screw termination, designed for heavy-duty applications within the HEAVYCON® M series. This component features a 600V voltage rating, 70A current capacity, and operates across a temperature range of -40°C to 125°C. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for system maintenance, repair, and new design implementations where this connector type is specified.

Substiute Parts

1585702

Phoenix ContactIn Stock: 10821585702 Datasheet

Current PartRFQ

1417297

Phoenix ContactIn Stock: 12881417297 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1585702 is determined by strict equivalence across the following critical parameters:

• Connector Type & Series: Module connector within HEAVYCON® M series
• Gender & Position Count: Male configuration with 2 positions
• Termination Method: Screw termination
• Current Rating: 70A capacity
• Operating Temperature Range: -40°C to 125°C
• Housing & Contact Materials: Polycarbonate housing with copper alloy contacts and silver finish
• Flammability Compliance: UL94 V-0 rating
• Environmental Compliance: RoHS compliance and MSL 1 rating

The substitute part Phoenix Contact 1417297 meets all these core substitution criteria. While it features an enhanced voltage rating of 1000V (compared to the original 600V) and active product status, these represent improvements that maintain full backward compatibility with applications designed for the 1585702.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1417297 is the qualified substitute for the obsolete 1585702 based on the following engineering criteria:

Product Status & Availability: The 1417297 maintains active product status with confirmed inventory availability (1209 pcs), whereas the 1585702 is obsolete. This ensures long-term supply chain continuity and support.

Compliance & Certification: Both parts maintain UL94 V-0 flammability compliance and MSL 1 moisture sensitivity ratings. The 1417297 achieves ROHS3 compliance, representing current regulatory alignment, while the original part meets RoHS compliance standards.

Electrical Performance: The 1417297 provides enhanced voltage rating (1000V versus 600V) while maintaining identical current capacity (70A) and operating temperature range (-40°C to 125°C). This enhancement ensures compatibility with existing 600V applications while providing margin for higher-voltage system designs.

Physical & Functional Compatibility: Both connectors share identical mechanical specifications—2-position male module configuration with screw termination, polycarbonate housing, copper alloy contacts with silver finish, and HEAVYCON® M series designation. This ensures direct mechanical and electrical interchangeability.

Frequently Asked Questions (FAQ)

Q: Can the 1417297 directly replace the 1585702 in existing applications?

A: Yes. The 1417297 maintains identical connector type, gender, position count, termination method, current rating, operating temperature range, housing material, contact material, and contact finish. The enhanced 1000V rating provides additional voltage margin without affecting compatibility with 600V-rated systems.

Q: What is the significance of the voltage rating difference between these parts?

A: The 1585702 is rated for 600V maximum, while the 1417297 is rated for 1000V maximum. In substitution, the higher voltage rating of the 1417297 represents an improvement that maintains full backward compatibility. Applications designed for 600V operation will function correctly with the 1417297.

Q: Are there differences in packaging or availability?

A: The 1585702 is obsolete with no current inventory. The 1417297 is an active product available in bulk packaging with 1209 pcs in stock, ensuring reliable procurement for both replacement and new design applications.

Q: How do the RoHS compliance levels differ?

A: The 1585702 meets RoHS compliance standards. The 1417297 achieves ROHS3 compliance, which represents the current regulatory requirement. Both parts are compliant with their respective applicable standards.

Q: Are the flammability and moisture sensitivity ratings equivalent?

A: Yes. Both parts maintain UL94 V-0 material flammability rating and MSL 1 (Unlimited) moisture sensitivity level, ensuring identical performance in thermal and environmental stress conditions.
