Phoenix Contact 1582229 Circular Connector Distributor - Equivalent & Substitute Parts

Part Overview

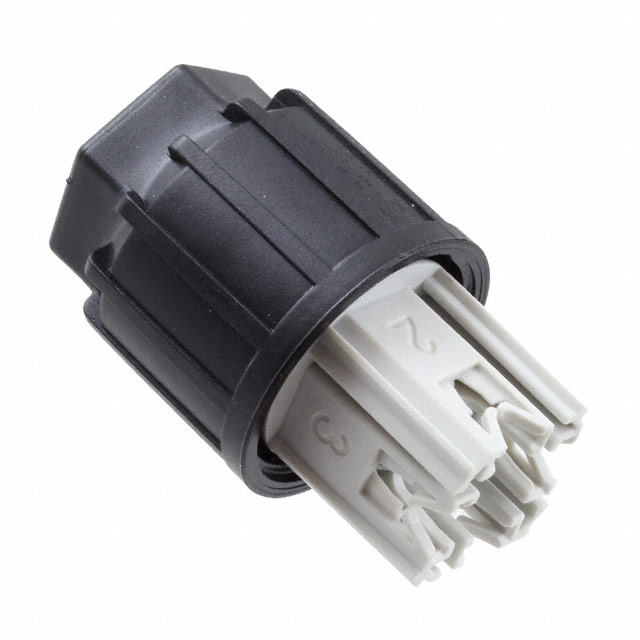

The Phoenix Contact 1582229 is a 4-position circular connector distributor with IDC termination, designed for free-hanging in-line mounting applications. This component features a polyamide shell with IP66/IP68/IP69K ingress protection rating and supports 20A current capacity across operating temperatures from -40°C to 100°C. The product is classified as obsolete, necessitating identification of active equivalent components to maintain supply chain continuity for existing installations and new designs requiring compatible functionality.

Substiute Parts

1582229

Phoenix ContactIn Stock: 8881582229 Datasheet

Current PartRFQ

1423994

Phoenix ContactIn Stock: 9361423994 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1582229 is determined by strict alignment across the following critical parameters:

Mandatory Matching Parameters:

• Connector Type: Distributor Nut
• Number of Positions: 4-position configuration
• Termination Method: IDC (Insulation Displacement Contact)
• Mounting Type: Free Hanging (In-Line)
• Current Rating: 20A minimum
• Operating Temperature Range: -40°C to 100°C minimum
• Cable Opening Range: 0.354" ~ 0.551" (9.00mm ~ 14.00mm)
• Ingress Protection: IP66/IP68/IP69K
• Shell Material: Polyamide (PA), Nylon
• Insert Material: Polyamide (PA), Nylon
• Flammability Rating: UL94 V-0

The Phoenix Contact 1423994 meets all mandatory parameters and qualifies as a direct substitute. The primary distinction is the addition of silver contact finish plating and keyed orientation in the substitute part, which represent functional enhancements rather than deviations from core specifications.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1423994 is the qualified substitute for the obsolete 1582229 based on the following engineering criteria:

Product Status Alignment: The 1423994 maintains active product status with current manufacturing support, ensuring long-term availability and supply chain reliability compared to the obsolete 1582229.

Compliance and Certifications: Both components maintain UL94 V-0 flammability certification and meet ingress protection requirements. The 1423994 carries ROHS3 compliance, representing current regulatory alignment, while the 1582229 carries RoHS compliance. Both components are suitable for applications requiring environmental protection standards.

Functional Equivalence: The 1423994 preserves all critical electrical and mechanical parameters: 4-position IDC termination, 20A current capacity, -40°C to 100°C operating range, and IP66/IP68/IP69K ingress protection. The cable opening range remains identical at 0.354" ~ 0.551" (9.00mm ~ 14.00mm).

Enhanced Features: The 1423994 introduces silver contact finish plating and keyed orientation, which provide improved contact reliability and polarization control without compromising backward compatibility with existing mechanical interfaces.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1423994 directly replace the 1582229 in existing installations?

A: Yes. The 1423994 maintains identical electrical ratings (20A), operating temperature range (-40°C to 100°C), IDC termination method, and cable opening specifications (0.354" ~ 0.551"). The free-hanging in-line mounting configuration and IP66/IP68/IP69K ingress protection are preserved, ensuring functional compatibility.

Q: What is the significance of the silver contact finish in the 1423994?

A: The silver contact finish on the 1423994 provides enhanced electrical conductivity and corrosion resistance at the mating interface compared to unspecified contact finishes on the 1582229. This represents a performance improvement that does not affect mechanical compatibility.

Q: Does the keyed orientation feature on the 1423994 affect installation?

A: The keyed orientation on the 1423994 provides polarization control to prevent incorrect mating. This feature enhances installation reliability and does not create incompatibility with existing cable assemblies designed for the 1582229, as keying is a unidirectional constraint that improves rather than restricts functionality.

Q: Are there any compliance differences between the two parts?

A: The 1423994 carries ROHS3 compliance, representing alignment with current regulatory standards, while the 1582229 carries RoHS compliance. Both meet UL94 V-0 flammability requirements. The 1423994 is the recommended choice for new designs and applications requiring current regulatory compliance.

Q: What packaging options are available for the 1423994?

A: The 1423994 is supplied in bulk packaging, suitable for production environments and high-volume applications. Confirm packaging requirements with your procurement team if specific packaging formats are required.

Q: Is the 1423994 suitable for the same environmental conditions as the 1582229?

A: Yes. Both components maintain IP66/IP68/IP69K ingress protection ratings and operate across the identical temperature range of -40°C to 100°C, ensuring equivalent performance in dust-tight, water-resistant, and waterproof applications.
