TE Connectivity AMP Connectors 1551962-3 Equivalent & Substitute Parts

Part Overview

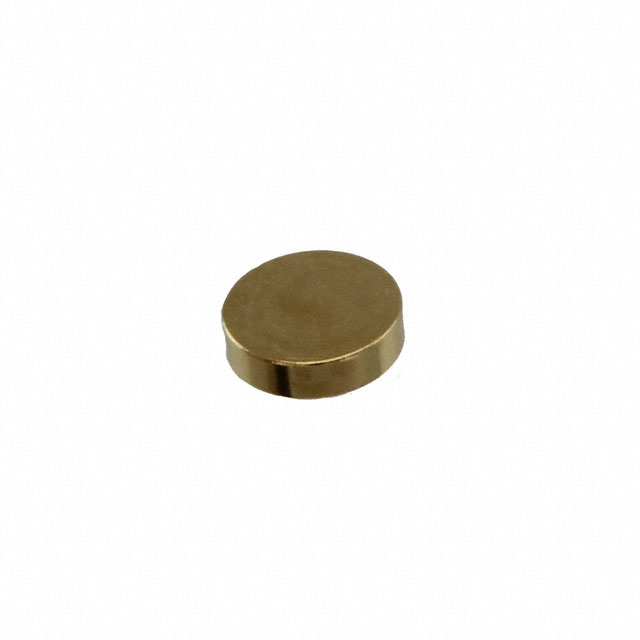

The TE Connectivity AMP Connectors 1551962-3 is a 1 Position Header Spacer Connector with gold surface mount termination, designed for surface mount applications. This component is classified as Obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure supply chain availability for new production and repair applications.

Substiute Parts

1551962-3

TE Connectivity AMP ConnectorsIn Stock: 10421551962-3 Datasheet

Current PartRFQ

1578-3-57-15-00-00-03-0

Mill-Max Manufacturing Corp.In Stock: 290451578-3-57-15-00-00-03-0 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 1578-3-57-15-00-00-03-0 from Mill-Max Manufacturing Corp. is identified as a functional equivalent based on the following critical parameters:

Substitution Criteria:

• Single Position Configuration: Both parts feature 1-position contact architecture
• Surface Mount Technology: Both components utilize surface mount mounting type
• Gold Contact Finish: Both parts employ gold plating for mating surfaces
• Solder Termination: Both components support solder-based termination methods
• Compliance Alignment: Both parts maintain ROHS3 compliance and MSL 1 (Unlimited) rating

The Mill-Max 1578-3-57-15-00-00-03-0 transitions from the obsolete TE Connectivity header spacer design to an active contact spring target configuration, maintaining functional compatibility within single-position, surface mount connector applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Mill-Max Manufacturing Corp. 1578-3-57-15-00-00-03-0

The Mill-Max 1578-3-57-15-00-00-03-0 is the designated substitute for the obsolete TE Connectivity 1551962-3. Selection of this active component is supported by the following factors:

• Product Status Transition: The substitute part maintains active production status, ensuring long-term supply availability and manufacturing support
• Regulatory Compliance: Both components satisfy ROHS3 compliance requirements, supporting environmental and regulatory mandates
• Moisture Sensitivity Alignment: Identical MSL 1 (Unlimited) classification permits direct substitution in moisture-sensitive device (MSD) handling protocols
• Surface Mount Compatibility: Shared surface mount mounting methodology ensures compatibility with existing PCB assembly processes and equipment
• Gold Contact Finish: Maintained gold plating specification ensures electrical performance and corrosion resistance equivalent to the original component

The transition from header spacer to contact spring target architecture represents a functional evolution within single-position, surface mount connector technology, with the substitute part providing enhanced active support and regulatory compliance status.

Frequently Asked Questions (FAQ)

Q: Why is the TE Connectivity 1551962-3 classified as obsolete?

A: The TE Connectivity 1551962-3 has reached end-of-life status within the manufacturer's product portfolio. Obsolete classification indicates discontinued production and limited availability of new inventory. The Mill-Max 1578-3-57-15-00-00-03-0 provides functional continuity for applications requiring single-position, surface mount gold-plated connectors.

Q: Are the TE Connectivity 1551962-3 and Mill-Max 1578-3-57-15-00-00-03-0 mechanically interchangeable?

A: Both components share identical mounting type (surface mount) and termination method (solder). Mechanical interchangeability is determined by PCB pad layout and footprint compatibility. The Mill-Max part features a circular pad layout dimension of 0.078" (1.98mm) diameter with 0.055" (1.40mm) height. PCB design review is required to confirm footprint alignment with existing layouts.

Q: What is the difference between a header spacer and a contact spring target?

A: The TE Connectivity 1551962-3 functions as a header spacer connector, providing structural positioning for single-position connections. The Mill-Max 1578-3-57-15-00-00-03-0 operates as a contact spring target, utilizing spring-loaded contact technology for reliable mating cycles. Both components achieve equivalent electrical and mechanical function within single-position, surface mount applications.

Q: Do both parts meet the same regulatory compliance standards?

A: Both components maintain ROHS3 compliance and MSL 1 (Unlimited) classification. The Mill-Max substitute provides enhanced regulatory status with REACH Unaffected designation, compared to the TE Connectivity original part's REACH Affected status. This represents an improvement in regulatory compliance profile.

Q: What is the operating temperature range for the substitute part?

A: The Mill-Max 1578-3-57-15-00-00-03-0 operates across the temperature range of -55°C to 125°C. This specification is provided for the substitute component; the original TE Connectivity part's operating temperature range was not specified in available documentation.

Q: Is the gold contact finish thickness specified for both parts?

A: The Mill-Max substitute specifies gold contact finish thickness of 10.0µin (0.25µm). The TE Connectivity original part does not provide contact finish thickness specification. The Mill-Max specification ensures consistent gold plating quality and corrosion resistance performance.

Q: What packaging format is available for the Mill-Max substitute?

A: The Mill-Max 1578-3-57-15-00-00-03-0 is supplied in Tape & Reel (TR) packaging format, suitable for automated surface mount assembly processes. This packaging format supports high-volume production environments and component handling efficiency.
