TE Connectivity AMP Connectors 1546518-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 1546518-5 is a 5 Position Terminal Block Header with male pins, shrouded on 2 sides, featuring 0.200" (5.08mm) pitch and 90° right angle orientation for through-hole mounting. This component is classified as obsolete, necessitating identification of active equivalent and substitute parts for ongoing design and procurement requirements. Substitute parts must maintain functional compatibility through matching electrical specifications, mechanical dimensions, and termination characteristics.

Key Parameters

Parameter	Value
Manufacturer Part Number	1546518-5
Manufacturer	TE Connectivity AMP Connectors
Category	Terminal Blocks
Number of Positions	5
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Type	Header, Male Pins, Shrouded (2 Side)
Mounting Type	Through Hole
Termination Style	Solder
Contact Mating Finish	Tin
Housing Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution of the 1546518-5 is determined by the following critical parameters:

Primary Matching Criteria:

Number of Positions: 5
Pitch: 0.200" (5.08mm) or 0.197" (5.00mm)
Header Orientation: 90°, Right Angle
Mounting Type: Through Hole
Termination Style: Solder
Shroud Configuration: 2 Side or 4 Side
Material Flammability Rating: UL94 V-0

Acceptable Variations:

Pitch tolerance: 0.197" (5.00mm) represents a 0.03mm deviation from the 0.200" (5.08mm) specification and is acceptable for mechanical and electrical compatibility
Shroud configuration: Parts with 4-side shrouding provide enhanced EMI shielding and are functionally compatible with 2-side shrouded applications
Contact material: Brass substitutes for Phosphor Bronze maintain electrical conductivity and mechanical performance
Housing material: Polybutylene Terephthalate (PBT) and Polyamide (PA46) provide equivalent mechanical and thermal properties to PA66

Substitute parts are grouped into two categories:

Exact Pitch Match (0.200" / 5.08mm): Molex 0395320005, Adam Tech EBQA-05-D, Amphenol PCD ELFH05210, Amphenol PCD ELFH05220
Near-Pitch Match (0.197" / 5.00mm): Molex 0395220005, Molex 0395226005, Amphenol PCD ELFH05110, Amphenol PCD ELFH05120, Amphenol PCD ELFH05130, Amphenol PCD ELFH05140

Parameter Comparison

Part Number	Manufacturer	Positions	Pitch	Shroud Type	Orientation	Mounting	Termination	Housing Material	Flammability	Status	RoHS
1546518-5	TE Connectivity AMP	5	0.200" (5.08mm)	2 Side	90°	Through Hole	Solder	PA66, Nylon 6/6	UL94 V-0	Obsolete	Not applicable
0395220005	Molex	5	0.197" (5.00mm)	2 Side	90°	Through Hole	Solder	PA66, Nylon 6/6	UL94 V-0	Active	ROHS3 Compliant
0395226005	Molex	5	0.197" (5.00mm)	4 Side	90°	Through Hole	Solder	PA66, Nylon 6/6	UL94 V-0	Active	ROHS3 Compliant
0395320005	Molex	5	0.200" (5.08mm)	2 Side	90°	Through Hole	Solder	PA66, Nylon 6/6	UL94 V-0	Active	ROHS3 Compliant
EBQA-05-D	Adam Tech	5	0.200" (5.08mm)	2 Side	90°	Through Hole	Solder	PA66, Nylon 6/6	UL94 V-0	Active	ROHS3 Compliant
ELFH05110	Amphenol PCD	5	0.197" (5.00mm)	4 Side	90°	Through Hole	Solder	PBT	UL94 V-0	Active	RoHS Compliant
ELFH05120	Amphenol PCD	5	0.197" (5.00mm)	2 Side	90°	Through Hole	Solder	PBT	UL94 V-0	Active	RoHS Compliant
ELFH05130	Amphenol PCD	5	0.197" (5.00mm)	4 Side	90°	Through Hole	Solder	PA46, Nylon 4/6	UL94 V-0	Active	RoHS Compliant
ELFH05140	Amphenol PCD	5	0.197" (5.00mm)	2 Side	90°	Through Hole	Solder	PA46, Nylon 4/6	UL94 V-0	Active	RoHS Compliant
ELFH05210	Amphenol PCD	5	0.200" (5.08mm)	4 Side	90°	Through Hole	Solder	PBT	UL94 V-0	Active	ROHS3 Compliant
ELFH05220	Amphenol PCD	5	0.200" (5.08mm)	2 Side	90°	Through Hole	Solder	PBT	UL94 V-0	Active	RoHS Compliant

Engineering Selection Recommendations

Primary Substitutes (Exact Pitch Match - 0.200" / 5.08mm):

The following parts provide direct substitution with identical pitch specifications:

Molex 0395320005: Active product status with ROHS3 compliance. Maintains 0.200" (5.08mm) pitch, 2-side shroud configuration, and PA66 housing material identical to the original part. Suitable for direct replacement in existing PCB layouts.
Adam Tech EBQA-05-D: Active product status with ROHS3 compliance. Maintains 0.200" (5.08mm) pitch and 2-side shroud configuration. Operates within -40°C to 105°C temperature range with 15 A UL current rating.
Amphenol PCD ELFH05220: Active product status with RoHS compliance. Maintains 0.200" (5.08mm) pitch and 2-side shroud configuration with PBT housing material. Operates within -40°C to 105°C temperature range with 15 A UL current rating.

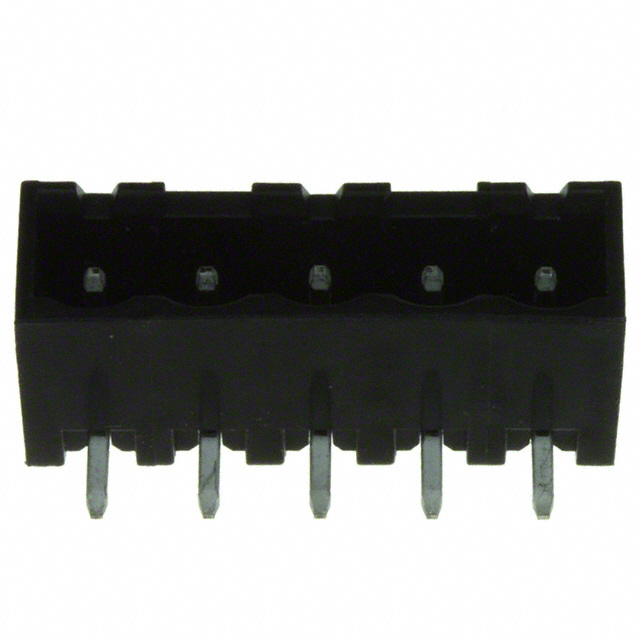

Amphenol PCD ELFH05210: Active product status with ROHS3 compliance. Maintains 0.200" (5.08mm) pitch with 4-side shroud configuration providing enhanced EMI shielding. PBT housing material with 15 A UL current rating.

Secondary Substitutes (Near-Pitch Match - 0.197" / 5.00mm):

The following parts provide functional substitution with 0.03mm pitch deviation:

Molex 0395220005: Active product status with ROHS3 compliance. 0.197" (5.00mm) pitch with 2-side shroud configuration and PA66 housing. Operates within -40°C to 105°C temperature range with 15 A UL current rating.
Molex 0395226005: Active product status with ROHS3 compliance and REACH Unaffected status. 0.197" (5.00mm) pitch with 4-side shroud configuration providing enhanced EMI shielding. PA66 housing with 15 A UL current rating.
Amphenol PCD ELFH05120: Active product status with RoHS compliance. 0.197" (5.00mm) pitch with 2-side shroud configuration. PBT housing material with 15 A UL current rating and -40°C to 105°C operating temperature range.
Amphenol PCD ELFH05140: Active product status with RoHS compliance. 0.197" (5.00mm) pitch with 2-side shroud configuration. PA46 housing material with 15 A UL current rating and -40°C to 105°C operating temperature range.
Amphenol PCD ELFH05110: Active product status with RoHS compliance. 0.197" (5.00mm) pitch with 4-side shroud configuration. PBT housing material with 15 A UL current rating and -40°C to 105°C operating temperature range.
Amphenol PCD ELFH05130: Active product status with RoHS compliance. 0.197" (5.00mm) pitch with 4-side shroud configuration. PA46 housing material with 15 A UL current rating and -40°C to 105°C operating temperature range.

Compliance Considerations:

All substitute parts maintain UL94 V-0 flammability rating and are RoHS compliant, addressing regulatory requirements for modern applications. The original part's "Not applicable" RoHS status reflects its obsolete classification; all active substitutes provide current compliance certifications.

Frequently Asked Questions (FAQ)

Q: Can I use a 0.197" (5.00mm) pitch part as a substitute for the 0.200" (5.08mm) pitch original?

A: Yes. The 0.03mm pitch difference is within acceptable mechanical tolerance for terminal block applications. Both pitch specifications are standard in the industry and provide equivalent electrical performance. PCB layout modifications are not required for this substitution.

Q: What is the difference between 2-side and 4-side shrouded terminal blocks?

A: 2-side shrouding provides lateral protection for the connector pins. 4-side shrouding extends protection on all sides, offering enhanced EMI shielding and mechanical robustness. Both configurations are electrically equivalent and mechanically compatible with standard terminal block receptacles.

Q: Are Molex, Adam Tech, and Amphenol PCD parts interchangeable with the original TE Connectivity part?

A: Yes, when matching the specified parameters. All substitute parts listed maintain identical position count, orientation, mounting type, termination style, and flammability rating. Electrical performance is equivalent across all listed substitutes.

Q: Does the housing material change affect performance?

A: No. Polyamide (PA66), Polybutylene Terephthalate (PBT), and Polyamide (PA46) provide equivalent mechanical strength, thermal stability, and electrical insulation properties for terminal block applications. Material selection does not impact electrical functionality or compatibility.

Q: What is the significance of RoHS compliance on these parts?

A: RoHS compliance indicates the part meets Restriction of Hazardous Substances regulations, restricting lead and other hazardous materials. All active substitute parts are RoHS compliant, meeting current regulatory requirements for electronics manufacturing and end-of-life disposal.

Q: Can I mix substitute parts from different manufacturers in the same application?

A: Yes. All listed substitute parts meet identical electrical and mechanical specifications. Mixing parts from different manufacturers does not affect performance, provided the pitch specification remains consistent within a single connector assembly.

Q: What is the current and voltage rating for these terminal blocks?

A: All active substitute parts are rated for 15 A at 300 V (UL specification). The original obsolete part does not specify these ratings in the provided data, but the substitute parts provide this electrical performance specification.

Q: How do I determine which substitute is best for my application?

A: Selection depends on three factors: (1) PCB pitch requirement—use exact 0.200" (5.08mm) match if possible; (2) EMI shielding need—select 4-side shroud if required; (3) operating environment—all parts operate -40°C to 105°C. For standard applications without EMI concerns, Molex 0395320005 or Amphenol PCD ELFH05220 provide direct replacement.

Q: Is the contact tail length difference significant?

A: Contact tail length varies between 0.138" (3.50mm) on the original and 0.150" to 0.157" (3.81mm to 4.00mm) on substitutes. These variations are within standard PCB through-hole tolerance and do not affect mechanical or electrical performance.
