TE Connectivity ALCOSWITCH 1-5435802-8 Equivalent & Substitute Parts

Part Overview

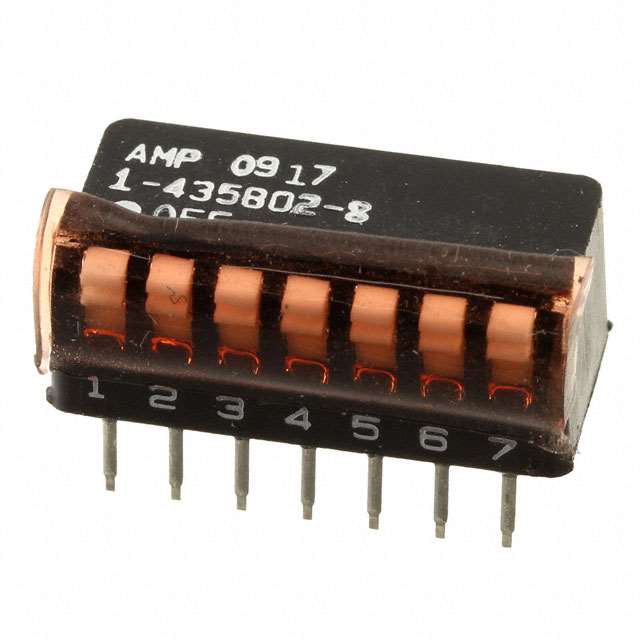

The TE Connectivity ALCOSWITCH 1-5435802-8 is a DIP switch with SPST circuit configuration, 7-position capacity, and piano actuator design. This component is classified as obsolete, necessitating identification of equivalent substitute parts for ongoing procurement and design requirements. The switch features through-hole mounting, sealed construction, and washable capability suitable for industrial applications.

Substiute Parts

1-5435802-8

TE Connectivity ALCOSWITCH SwitchesIn Stock: 9881-5435802-8 Datasheet

Current PartRFQ

5-5435166-2

TE Connectivity ALCOSWITCH SwitchesIn Stock: 8265-5435166-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-5435802-8 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Circuit Type: SPST
• Number of Positions: 7
• Mounting Type: Through Hole
• Actuator Level: Raised
• Washable Capability: Yes
• Series: 7000
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 5-5435166-2 maintains functional equivalence through identical circuit configuration, position count, mounting methodology, and environmental specifications. The primary distinction between the main part and substitute is the actuator type: the main part features a piano actuator, while the substitute employs a rocker actuator. Both actuator types operate within the same raised actuator level classification and deliver equivalent switching functionality within the 7000 series platform.

Parameter Comparison

Engineering Selection Recommendations

The 5-5435166-2 substitute part is classified as active product status, providing assured long-term availability and supply chain continuity compared to the obsolete 1-5435802-8. Both components maintain identical ROHS and export compliance classifications (EAR99, HTSUS 8536.50.9065), ensuring regulatory equivalence for applications requiring compliance documentation.

The primary design consideration for substitution involves actuator interface compatibility. The piano actuator of the main part differs mechanally from the rocker actuator of the substitute, requiring verification that the physical actuator geometry accommodates the intended user interface within the target application. Both actuator types deliver equivalent electrical switching performance within the 7-position SPST configuration.

The substitute part is supplied in tube packaging, whereas packaging specifications for the main part were not provided. Procurement planning should account for packaging format differences in inventory management and assembly processes.

Frequently Asked Questions (FAQ)

Q: Can the 5-5435166-2 directly replace the 1-5435802-8 in existing designs?

A: Electrical and environmental specifications are equivalent. The actuator type difference (rocker versus piano) requires mechanical compatibility assessment within the specific application enclosure or control panel design.

Q: What is the significance of the product status difference?

A: The main part 1-5435802-8 is obsolete, indicating discontinued manufacturing and limited remaining inventory. The substitute 5-5435166-2 is active product, ensuring ongoing availability and manufacturing support.

Q: Are compliance certifications identical between the two parts?

A: Both parts share identical ECCN (EAR99) and HTSUS (8536.50.9065) classifications. RoHS compliance differs in documentation status but does not affect functional equivalence for applications requiring ROHS3 compliance.

Q: Does the washable specification apply to both parts?

A: Yes. Both the 1-5435802-8 and 5-5435166-2 are washable, maintaining compatibility for applications requiring post-assembly cleaning processes.

Q: What packaging format is supplied for the substitute part?

A: The 5-5435166-2 is supplied in tube packaging. Confirm packaging requirements align with assembly and inventory management procedures before procurement.

Q: Are the through-hole mounting footprints identical?

A: Both parts feature through-hole mounting with raised actuator level classification within the 7000 series. Physical footprint compatibility requires verification against specific PCB design documentation.
