Phoenix Contact 1543553 Circular Connector T-Distributor M12 5-Position Equivalent & Substitute Parts

Part Overview

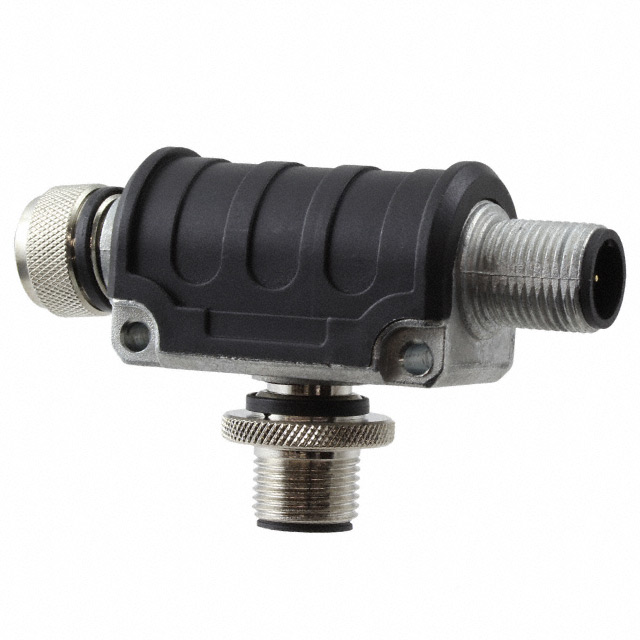

The Phoenix Contact 1543553 is a circular connector T-shaped distributor with M12 shell size and 5-position configuration. This component functions as an adapter converting male pins on one end to female sockets and male pins on the other end, enabling flexible network topology in industrial automation applications. The part is classified as obsolete, making identification of active equivalent models essential for procurement and system continuity.

Substiute Parts

1543553

Phoenix ContactIn Stock: 7421543553 Datasheet

Current PartRFQ

1424713

Phoenix ContactIn Stock: 9381424713 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the Phoenix Contact 1543553 is determined by the following critical parameters that must remain constant:

• Connector Style: Distributor T-Shaped configuration
• Shell Size: M12
• Number of Positions: 5 (both input and output)
• Mounting Type: Free Hanging (In-Line)
• Fastening Type: Threaded
• Orientation: B-coded
• Conversion Configuration: Male Pins to Female Sockets (1) and Male Pins (1)

The substitute part 1424713 maintains all these core parameters, enabling direct functional replacement. Variations in housing material, shielding, ingress protection rating, and electrical ratings are permissible within the scope of industrial connector substitution, provided the mechanical interface and pin configuration remain identical.

Parameter Comparison

Engineering Selection Recommendations

The Phoenix Contact 1424713 is the direct active equivalent for the obsolete 1543553 model. Both components share identical mechanical interfaces, pin configurations, and functional specifications within the SAC series M12 5-position T-distributor category.

The 1424713 maintains RoHS3 compliance, exceeding the RoHS compliance level of the original part. The substitute offers enhanced electrical ratings (48VAC/60VDC versus 30V) and extended upper operating temperature capability (85°C versus 80°C), making it suitable for applications requiring higher performance margins.

The transition from polyurethane to zinc die cast housing and the addition of shielding in the substitute part provide improved mechanical durability and electromagnetic interference rejection. The IP65 ingress protection rating of the substitute remains appropriate for industrial environments, though it represents a reduction from the IP67 specification of the original part.

Frequently Asked Questions (FAQ)

Q: Can the 1424713 directly replace the 1543553 in existing installations?

A: Yes. Both parts maintain identical M12 shell size, 5-position configuration, B-orientation, and free-hanging in-line mounting. The mechanical interface and pin assignment are fully compatible.

Q: What is the significance of the housing material change from polyurethane to zinc die cast?

A: Zinc die cast provides superior mechanical strength and thermal conductivity compared to polyurethane. This material change does not affect electrical compatibility but improves connector durability in industrial environments.

Q: Does the addition of shielding in the 1424713 affect compatibility?

A: No. Shielding is an enhancement that provides additional electromagnetic interference rejection. The shielded substitute is compatible with unshielded applications and offers improved signal integrity.

Q: Why does the substitute part have a lower IP rating (IP65 versus IP67)?

A: IP65 provides dust-tight and water-resistant protection suitable for industrial applications. IP67 adds temporary immersion capability. The IP65 rating of the substitute remains appropriate for standard industrial connector applications.

Q: Are there packaging differences between the main part and substitute?

A: The main part 1543553 is listed as obsolete with bulk packaging status unknown. The substitute 1424713 is available in bulk packaging with 863 pieces in current inventory, ensuring procurement availability.

Q: What compliance certifications apply to the substitute part?

A: The 1424713 holds ROHS3 compliance, REACH unaffected status, and EAR99 export classification, meeting current regulatory requirements for industrial component distribution.
