Phoenix Contact 1507793 Circular Connector T-Distributor Equivalent & Substitute Parts

Part Overview

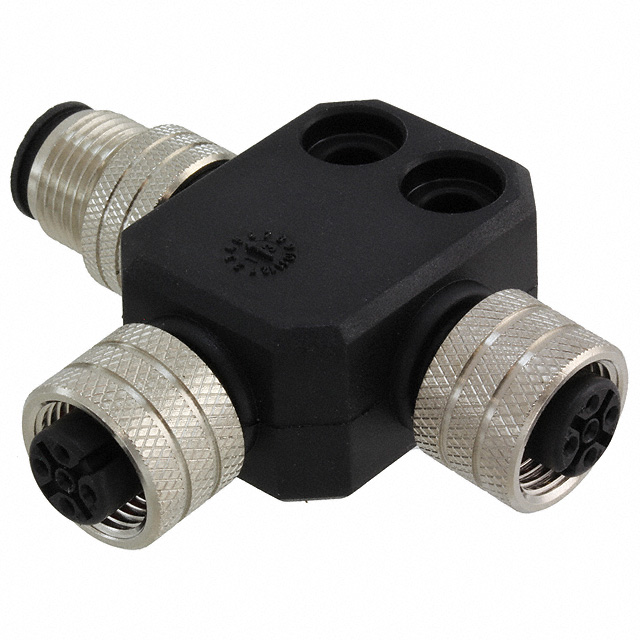

The Phoenix Contact 1507793 is a circular connector distributor with T-shaped configuration, designed for M12 5-position applications. This part features a 5/5 socket arrangement with dual female sockets and single male pin output, enabling signal distribution in industrial automation and fieldbus networks. The part is classified as obsolete, making identification of active equivalent models essential for ongoing system maintenance and new installations.

Substiute Parts

1507793

Phoenix ContactIn Stock: 9131507793 Datasheet

Current PartRFQ

1424712

Phoenix ContactIn Stock: 7661424712 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Phoenix Contact 1507793 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector style: Distributor T-Shaped configuration
• Shell size and insert: M12
• Position count: 5 positions
• Adapter end configuration: Female sockets (input) converting to female sockets and male pins (output)
• Mounting type: Free Hanging (In-Line)
• Orientation: A-coded
• Electrical ratings: Minimum 4A current capacity, minimum 60V voltage rating
• Ingress protection: IP65 or higher
• Material flammability: UL94 V-0
• RoHS compliance status

The substitute part 1424712 meets all mandatory parameters while offering enhanced specifications in housing material composition, fastening mechanism, and extended operating temperature range. The substitute maintains functional and electrical equivalence while providing active product status and current manufacturing availability.

Parameter Comparison

Engineering Selection Recommendations

For New Designs and Ongoing Procurement:

Phoenix Contact 1424712 is the recommended substitute for 1507793. Both parts maintain identical functional specifications for M12 5-position T-distributor applications. The substitute offers active product status with current manufacturing support, ensuring long-term availability and supply chain continuity.

Compliance Considerations:

Both parts satisfy UL94 V-0 flammability requirements and RoHS compliance standards. The substitute achieves ROHS3 compliance, representing current regulatory alignment. Both parts carry EAR99 ECCN classification and identical HTSUS codes, confirming equivalent trade and export status.

Material and Environmental Specifications:

The substitute employs PBT housing material in place of the original PUR composition. Both materials maintain IP65 or higher ingress protection ratings suitable for industrial fieldbus environments. The substitute extends the operating temperature ceiling to 85°C, providing enhanced thermal margin for demanding applications.

Fastening Mechanism:

The substitute transitions from threaded fastening to push-twist coupling. This represents a mechanical design evolution while maintaining equivalent connector reliability and mating force characteristics for M12 A-coded interfaces.

Frequently Asked Questions (FAQ)

Q: Can Phoenix Contact 1424712 directly replace 1507793 in existing installations?

A: Yes. Both parts maintain identical M12 5-position T-distributor configurations with matching female socket input and female socket/male pin output arrangements. Mechanical and electrical compatibility is confirmed across all critical parameters.

Q: What is the significance of the product status change from Obsolete to Active?

A: The substitute part maintains active manufacturing status, ensuring continued availability, technical support, and supply chain reliability. The original part's obsolete classification indicates discontinued production, making the active substitute essential for system maintenance and future procurement.

Q: Are there differences in electrical performance between these parts?

A: Both parts maintain 4A current rating and support 60V operation. The substitute specifies dual voltage compatibility (48VAC, 60VDC) compared to the original's 60V specification. Electrical performance remains equivalent for standard M12 fieldbus applications.

Q: How do the housing materials affect application suitability?

A: PUR and PBT materials both achieve UL94 V-0 flammability ratings and IP65+ ingress protection. Material selection does not affect connector functionality or environmental sealing performance for specified operating conditions.

Q: What is the impact of the fastening type change from Threaded to Push-Twist?

A: Both fastening mechanisms provide equivalent coupling reliability for M12 A-coded connectors. The push-twist design represents a manufacturing evolution while maintaining mating force and disconnection characteristics suitable for industrial applications.

Q: Are there packaging or inventory considerations for procurement?

A: The original part is available in 835 units with unspecified packaging. The substitute is available in 737 units with bulk packaging. Both represent new original stock with equivalent lead time and availability profiles.
