3M 150216-5002-TH Rectangular Connector Equivalent & Substitute Parts

Part Overview

The 3M 150216-5002-TH is a 16-position receptacle connector with 0.079" (2.00mm) pitch, designed for through-hole, right-angle board-to-board or cable applications. This connector features gold-plated mating contacts and tin-lead plated posts, operating across -55°C to 105°C with a 1A current rating at 500VDC. The part is classified as obsolete, making identification of suitable substitute components essential for ongoing design support and procurement continuity.

Substiute Parts

150216-5002-TH

3MIn Stock: 1051150216-5002-TH Datasheet

Current PartRFQ

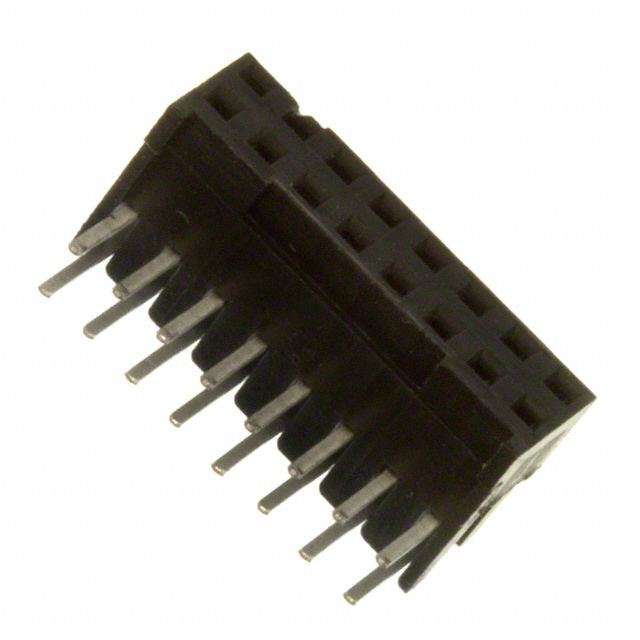

150216-5002-RB

3MIn Stock: 980150216-5002-RB Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 150216-5002-TH is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Number of positions (16)
• Pitch specification (0.079" / 2.00mm)
• Number of rows (2)
• Mounting configuration (Through Hole, Right Angle)
• Contact type (Female Socket)
• Electrical ratings (1A, 500VDC)
• Operating temperature range (-55°C ~ 105°C)
• Mating contact finish (Gold)
• Flammability rating (UL94 V-0)

The 3M 150216-5002-RB meets all substitution criteria. Differences in contact finish thickness and post plating material do not affect functional compatibility within the specified electrical and thermal parameters.

Parameter Comparison

Engineering Selection Recommendations

The 3M 150216-5002-RB is a direct functional substitute for the obsolete 150216-5002-TH. Both connectors share identical mechanical and electrical specifications across all critical parameters. The primary distinction is product status and regulatory compliance: the 150216-5002-RB is active production and RoHS compliant, whereas the 150216-5002-TH is obsolete and RoHS non-compliant.

For new designs or ongoing procurement where regulatory compliance is required, the 150216-5002-RB is the appropriate selection. The increased mating contact finish thickness (30.0µin versus 15.0µin) and tin post plating (versus tin-lead) in the substitute part provide enhanced durability and environmental compliance without affecting electrical performance within the specified operating parameters.

Frequently Asked Questions (FAQ)

Q: Can the 150216-5002-RB directly replace the 150216-5002-TH in existing assemblies?

A: Yes. Both connectors are mechanically and electrically equivalent across all functional parameters. The 16-position, 0.079" pitch configuration, through-hole right-angle mounting, and electrical ratings (1A, 500VDC) are identical. PCB footprints and mating interface dimensions are compatible.

Q: What is the significance of the different contact finish thicknesses?

A: The 150216-5002-RB features 30.0µin (0.76µm) gold plating on mating contacts compared to 15.0µin (0.38µm) on the 150216-5002-TH. This increased thickness provides extended contact life and improved resistance to wear and corrosion, with no impact on electrical performance or mechanical fit.

Q: Why does the post plating differ between these parts?

A: The 150216-5002-TH uses tin-lead plating on posts, while the 150216-5002-RB uses tin plating. This change reflects RoHS compliance requirements. Both finishes provide equivalent solderability and electrical performance for through-hole solder joint formation.

Q: Is the 150216-5002-RB suitable for applications requiring RoHS compliance?

A: Yes. The 150216-5002-RB is RoHS compliant. The 150216-5002-TH is RoHS non-compliant. For applications subject to RoHS regulations, the 150216-5002-RB is the required selection.

Q: Are there any thermal or environmental differences between these connectors?

A: No. Both connectors operate across the identical temperature range (-55°C ~ 105°C), maintain UL94 V-0 flammability rating, and have MSL 1 (Unlimited) moisture sensitivity classification. Environmental performance is equivalent.

Q: What is the inventory status for these parts?

A: The 150216-5002-TH (obsolete) has 984 pcs in stock. The 150216-5002-RB (active) has 876 pcs in stock. For long-term procurement planning, the active status of the 150216-5002-RB ensures continued availability.
