3M 150206-2000-TH Equivalent & Substitute Parts

Part Overview

The 3M 150206-2000-TH is a 6-position rectangular receptacle connector with 0.079" (2.00mm) pitch, designed for surface mount applications with gold-plated mating contacts. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications. The connector features push-pull fastening, solder termination, and operates across -55°C to 105°C with a 1A current rating at 500VDC.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	6
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Operating Temperature	-55°C ~ 105°C
Current Rating	1A
Voltage Rating	500VDC
Material Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution eligibility for the 3M 150206-2000-TH is determined by the following critical parameters:

6-position configuration with 0.079" (2.00mm) pitch and 2-row layout
Surface mount solder termination with push-pull fastening
Gold-plated mating contacts
Female socket contact type for receptacle applications
Operating temperature range compatibility
Current and voltage rating requirements
UL94 V-0 flammability compliance

Substitute parts must maintain these core electrical and mechanical specifications to ensure functional compatibility in board-to-board or cable connection applications.

Parameter Comparison

Parameter	150206-2000-TH (3M)	150206-2000-RB-WB (3M)	A3-6DA-2SV(71) (Hirose)	A3A-6DA-2SV(71) (Hirose)	M22-6340342 (Harwin)	NPPN032FFKS-RC (Sullins)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle, Bottom or Top Entry	Header
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	6	6	6	6	6	6
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2	2
Row Spacing - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Termination	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 85°C	-55°C ~ 85°C	-40°C ~ 105°C	-40°C ~ 105°C
Current Rating	1A	1A	1A	1A	2A	2A
Voltage Rating	500VDC	500VDC	200VAC	200VAC	500VAC	Not Specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Product Status	Obsolete	Active	Active	Active	Active	Active
RoHS Status	Not Specified	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

The 3M 150206-2000-RB-WB serves as the direct manufacturer equivalent, maintaining identical electrical specifications and operating temperature range while offering active product status and RoHS compliance. This part is the primary substitute for the obsolete 150206-2000-TH.

The Hirose A3-6DA-2SV(71) and A3A-6DA-2SV(71) are functionally compatible alternatives with identical pitch, position count, and core mechanical specifications. Both are ROHS3 compliant and active products. The A3A-6DA-2SV(71) includes a board guide feature. Operating temperature is limited to -55°C to 85°C, and voltage rating is 200VAC, which may require evaluation for applications requiring the full 500VDC specification of the original part.

The Harwin M22-6340342 offers higher current capacity (2A versus 1A) and supports bottom or top entry configuration. Operating temperature extends to 105°C, matching the original part. Voltage rating is 500VAC. ROHS3 compliance is confirmed.

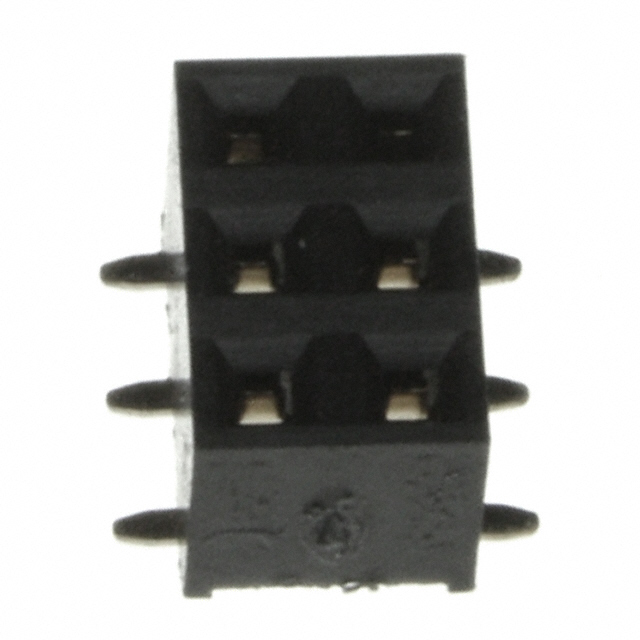

The Sullins NPPN032FFKS-RC is a header connector variant with identical pitch and position configuration. Current rating is 2A with gold post finish. Voltage rating is not specified. ROHS3 compliance is confirmed. Header connector type differs from the receptacle configuration of the original part, requiring mechanical compatibility verification.

All substitute parts maintain UL94 V-0 flammability rating and unlimited moisture sensitivity level (MSL 1).

Frequently Asked Questions (FAQ)

Q: Can the 3M 150206-2000-RB-WB directly replace the 150206-2000-TH?

A: Yes. The 150206-2000-RB-WB maintains identical electrical and mechanical specifications, including 6-position configuration, 0.079" pitch, surface mount solder termination, push-pull fastening, and -55°C to 105°C operating range. The primary difference is product status (active versus obsolete) and packaging format (Cut Tape & Digi-Reel versus standard).

Q: What are the key differences between 3M and Hirose alternatives?

A: The Hirose A3-6DA-2SV(71) and A3A-6DA-2SV(71) maintain pitch, position count, and core mechanical compatibility. Operating temperature is limited to -55°C to 85°C, and voltage rating is 200VAC instead of 500VDC. The A3A variant includes a board guide feature. Both are ROHS3 compliant and active products.

Q: Is the Harwin M22-6340342 suitable for high-current applications?

A: The M22-6340342 supports 2A current rating compared to 1A for the original part, providing higher current capacity. It maintains 500VAC voltage rating and -40°C to 105°C operating temperature. Bottom or top entry configuration offers mechanical flexibility.

Q: Why is the Sullins NPPN032FFKS-RC listed as a header connector?

A: The NPPN032FFKS-RC is a header connector variant rather than a receptacle. While it maintains identical pitch, position count, and surface mount solder termination, the connector type differs. Mechanical compatibility with existing mating receptacles must be verified before substitution.

Q: Are all substitute parts RoHS compliant?

A: Yes. All active substitute parts listed are ROHS3 compliant. The original 150206-2000-TH does not specify RoHS status due to its obsolete classification.

Q: What packaging formats are available for these substitutes?

A: The 3M 150206-2000-RB-WB is available in Cut Tape (CT) & Digi-Reel format. Hirose A3-6DA-2SV(71) and A3A-6DA-2SV(71) are supplied in Tube packaging. Harwin M22-6340342 and Sullins NPPN032FFKS-RC are also supplied in Tube packaging.
