Honeywell 14CE2-3K Snap Action Switch - Equivalent & Substitute Parts

Part Overview

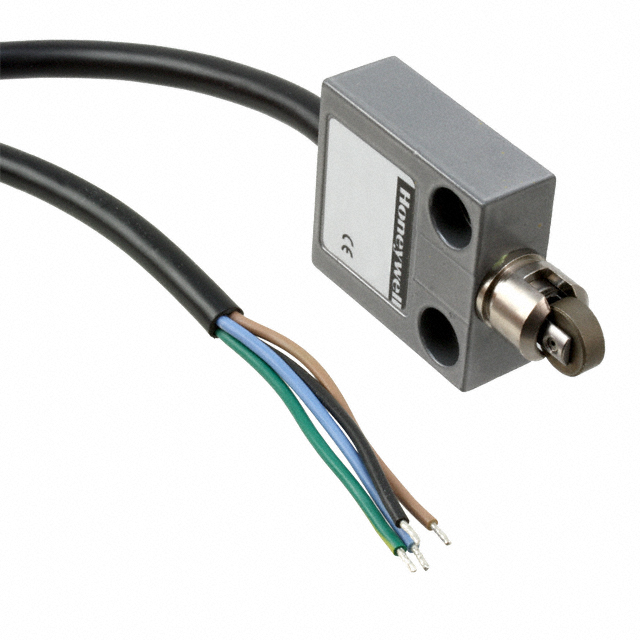

The Honeywell 14CE2-3K is a snap action switch with SPDT (Single Pole Double Throw) circuit configuration, rated for 5A at 250V AC. This chassis-mounted switch features a roller plunger actuator and is terminated with 3-meter cable leads. The part is classified as obsolete, making identification of equivalent and substitute components essential for system maintenance, repair, and redesign applications. Substitute parts must maintain functional equivalence across electrical ratings, mechanical actuation characteristics, and environmental protection specifications.

Substiute Parts

14CE2-3K

Honeywell Sensing and Control EMEAIn Stock: 115314CE2-3K Datasheet

Current PartRFQ

14CE2-3

Honeywell Sensing and Productivity SolutionsIn Stock: 194614CE2-3 Datasheet

DirectRFQ

D4C-1632

Omron Automation and SafetyIn Stock: 842D4C-1632 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following critical parameters:

Electrical Compatibility: Circuit type (SPDT), switch function (On-Momentary), AC current rating (5A minimum), and AC voltage rating (250V minimum) must be maintained or exceeded.

Mechanical Compatibility: Actuator type (roller plunger), mounting configuration (chassis mount), and cable lead termination (3-meter length) must be identical or functionally equivalent.

Environmental Protection: Ingress protection rating must meet or exceed IP65 (dust tight, water resistant).

Operating Conditions: Temperature range must encompass or exceed 0°C to 70°C. Mechanical life must meet or exceed 10,000,000 cycles.

Regulatory Compliance: RoHS compliance is mandatory. REACH status and ECCN classification are documented for procurement verification.

Two substitute parts meet these criteria: the Honeywell 14CE2-3 (direct manufacturer equivalent) and the Omron D4C-1632 (functionally equivalent alternative).

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: Honeywell 14CE2-3

The 14CE2-3 is the direct manufacturer equivalent and is classified as active product status. It maintains identical electrical ratings (5A, 250V AC), mechanical configuration (roller plunger, chassis mount, 3-meter cable leads), and operating temperature range (0°C to 70°C). The ingress protection rating is IP65, which meets the minimum environmental protection requirement. RoHS compliance is confirmed. This part is the preferred substitute for direct replacement in existing applications.

Alternative Substitute: Omron D4C-1632

The D4C-1632 provides functional equivalence with enhanced specifications. It maintains the required SPDT circuit, 5A AC rating at 250V, roller plunger actuation, and chassis mount configuration. The ingress protection rating is IP67 (waterproof), exceeding the IP65 minimum. Operating temperature range extends to -10°C, providing broader environmental coverage. ROHS3 compliance and REACH Unaffected status are documented. This part is suitable for applications requiring enhanced environmental protection or extended temperature operation.

Both substitutes are active products with confirmed RoHS compliance and EAR99 export classification, supporting long-term availability and regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can the 14CE2-3 directly replace the obsolete 14CE2-3K?

A: Yes. The 14CE2-3 maintains identical electrical ratings (5A, 250V AC), circuit configuration (SPDT), actuator type (roller plunger), mounting method (chassis mount), and cable lead termination (3 meters). Both operate across 0°C to 70°C and achieve 10,000,000 mechanical cycles. The primary difference is ingress protection rating: 14CE2-3K is IP66, while 14CE2-3 is IP65. Both ratings provide dust-tight, water-resistant protection suitable for standard industrial applications.

Q: What are the key differences between the Honeywell 14CE2-3 and Omron D4C-1632?

A: Both parts maintain electrical equivalence (5A, 250V AC, SPDT). Differences include: ingress protection (14CE2-3 is IP65; D4C-1632 is IP67), operating temperature range (14CE2-3 is 0°C to 70°C; D4C-1632 is -10°C to 70°C), and operating force (14CE2-3 is 1200gf; D4C-1632 is 1800gf). The D4C-1632 provides enhanced environmental protection and extended low-temperature operation.

Q: Are there DC voltage ratings for these substitutes?

A: The 14CE2-3K and 14CE2-3 are specified for AC operation only (250V AC). The D4C-1632 supports both AC (250V) and DC (30V, 4A) operation. If DC switching is required, the D4C-1632 is the appropriate selection.

Q: What is the significance of the packaging designation?

A: The 14CE2-3K is supplied in unspecified packaging (marked as "-"), while both substitutes are supplied in bulk packaging. Bulk packaging is standard for industrial component distribution and does not affect functional performance or compatibility.

Q: Are all three parts RoHS compliant?

A: Yes. The 14CE2-3K and 14CE2-3 are RoHS Compliant. The D4C-1632 is ROHS3 Compliant. All three parts meet current RoHS requirements and are suitable for applications subject to RoHS regulations.

Q: What is the mechanical life expectancy for these switches?

A: All three parts are rated for 10,000,000 mechanical cycles, providing equivalent durability across the product range.
