TE Connectivity 1-487952-6 FPC Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 1-487952-6 is a 16-position FPC (Flat Flexible) connector designed for surface mount, right-angle applications with 1.00mm pitch spacing. This connector features bottom-contact configuration, solder termination, and zero insertion force (ZIF) operation. The part is currently active in production with 951 pieces available in inventory.

Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector design, allowing direct replacement in applications where the core functional requirements remain unchanged.

Substiute Parts

1-487952-6

TE Connectivity AMP ConnectorsIn Stock: 9731-487952-6 Datasheet

Current PartRFQ

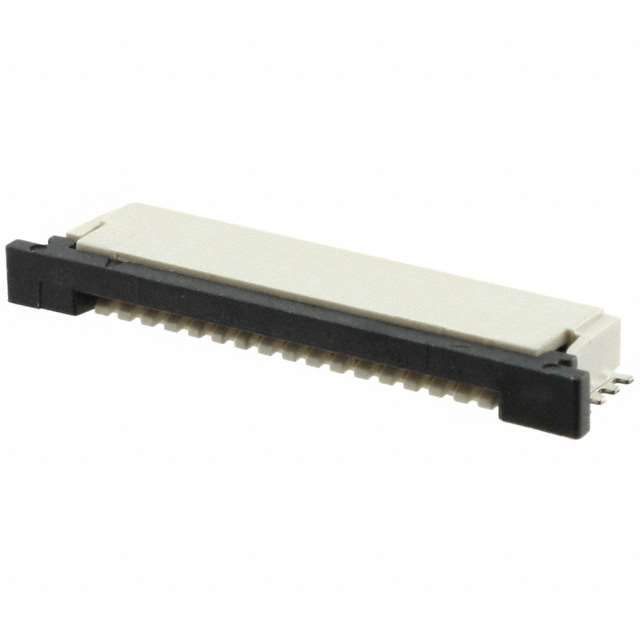

1-84952-6

TE Connectivity AMP ConnectorsIn Stock: 187551-84952-6 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between FPC connectors is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Voltage Rating: 200V
• Current Rating: 1A
• Contact Material: Phosphor Bronze with Tin finish

Mechanical Parameters:

• Number of Positions: 16
• Pitch: 0.039" (1.00mm)
• Mounting Type: Surface Mount, Right Angle
• Connector/Contact Type: Contacts, Bottom
• Height Above Board: 0.101" (2.56mm)
• Locking Feature: Slide Lock
• FFC, FCB Thickness: 0.30mm

Environmental Parameters:

• Operating Temperature Range: -40°C ~ 85°C
• Material Flammability Rating: UL94 V-0
• Termination: Solder

The substitute part 1-84952-6 maintains all critical electrical and mechanical parameters, enabling direct functional replacement in circuit designs.

Parameter Comparison

Engineering Selection Recommendations

1-487952-6 (Main Part):

• Product Status: Active
• RoHS Status: Non-compliant
• REACH Status: Vendor Undefined
• Suitable for applications without RoHS or REACH compliance requirements

1-84952-6 (Substitute Part):

• Product Status: Active
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Unaffected
• Suitable for applications requiring RoHS3 compliance and REACH compliance
• Higher inventory availability (18702 pieces)
• Lower contact finish thickness (78.7µin vs. 150.0µin)

Both parts maintain identical electrical and mechanical specifications. Selection between these parts depends on regulatory compliance requirements and inventory availability. The substitute part 1-84952-6 provides enhanced compliance status for applications subject to RoHS3 and REACH regulations.

Frequently Asked Questions (FAQ)

Q: Can 1-84952-6 directly replace 1-487952-6 in existing designs?

A: Yes. Both connectors maintain identical electrical and mechanical parameters including 16 positions, 1.00mm pitch, surface mount right-angle configuration, 200V voltage rating, 1A current rating, and operating temperature range of -40°C to 85°C. The connectors are functionally equivalent for circuit design purposes.

Q: What is the difference in RoHS compliance between these parts?

A: The main part 1-487952-6 is RoHS non-compliant. The substitute part 1-84952-6 is ROHS3 compliant. Applications subject to RoHS3 regulations must use 1-84952-6.

Q: Are there differences in contact finish specifications?

A: Yes. The main part 1-487952-6 has a contact finish thickness of 150.0µin (3.81µm), while the substitute part 1-84952-6 has a contact finish thickness of 78.7µin (2.00µm). Both use Tin finish on Phosphor Bronze contacts and meet the specified electrical performance requirements.

Q: Which part should be selected for new designs?

A: For new designs, 1-84952-6 is recommended due to ROHS3 compliance and REACH compliance status, ensuring compatibility with current regulatory requirements. The higher inventory availability also supports production scheduling.

Q: Are the packaging specifications identical?

A: Yes. Both parts are supplied in Tape & Reel (TR) packaging format.

Q: What is the significance of the actuator material difference?

A: The substitute part 1-84952-6 specifies Polyamide (PA), Nylon, Glass Filled actuator material, while the main part does not specify this parameter. This material composition supports the enhanced compliance certifications of the substitute part.

Q: Do both parts support zero insertion force (ZIF) operation?

A: Yes. Both connectors feature Zero Insertion Force (ZIF) operation with slide lock mechanism, enabling tool-free mating and demating.
