TE Connectivity AMP Connectors 148384-5 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 148384-5 is a 32-position DIN receptacle connector for backplane applications. This component features female sockets with gold or gold-palladium contact finish, designed for through-hole PCB mounting using press-fit termination. The connector is part of the Eurocard series and operates across a temperature range of -55°C to 125°C.

The 148384-5 is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support legacy system maintenance and new production requirements.

Substiute Parts

148384-5

TE Connectivity AMP ConnectorsIn Stock: 1693148384-5 Datasheet

Current PartRFQ

5148384-5

TE Connectivity AMP ConnectorsIn Stock: 9135148384-5 Datasheet

DirectRFQ

208484024003025

KYOCERA AVXIn Stock: 1053208484024003025 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 148384-5 are identified based on strict electrical and mechanical parameter alignment. The following criteria determine substitution eligibility:

Critical Matching Parameters:

• Connector type: Receptacle, Female Sockets
• Number of positions: 32 (24 + 8 Power)
• Number of positions loaded: 24
• Pitch: 0.100" (2.54mm)
• Number of rows: 3
• Style: M
• Level, Class: 2
• Mounting type: Through Hole
• Termination: Press-Fit
• Contact finish: Gold (or Gold-Palladium)
• Operating temperature range: Minimum -55°C, Maximum 125°C or greater
• Material flammability rating: UL94 V-0
• Moisture sensitivity level: 1 (Unlimited)

All substitute parts listed meet these critical parameters and are therefore electrically and mechanically compatible with the 148384-5 for backplane connector applications.

Parameter Comparison

Engineering Selection Recommendations

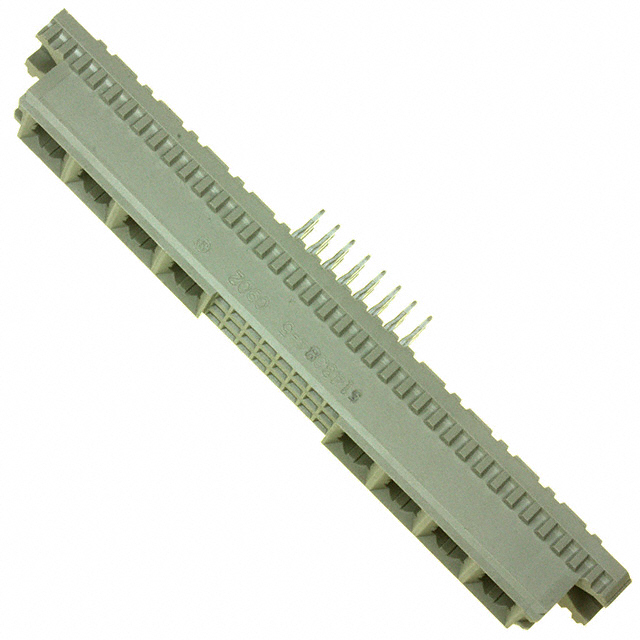

5148384-5 (Direct Substitute - TE Connectivity AMP Connectors)

The 5148384-5 is the primary direct substitute for the obsolete 148384-5. Both components are manufactured by TE Connectivity AMP Connectors within the Eurocard series and share identical electrical and mechanical specifications. The 5148384-5 maintains active product status, ensuring ongoing availability and supply chain support. This part achieves RoHS compliance and carries an active inventory position of 821 units. The 5148384-5 is the recommended choice for applications requiring continuity with the original 148384-5 design while benefiting from current manufacturing standards and regulatory compliance.

208484024003025 (Similar Substitute - KYOCERA AVX)

The 208484024003025 from KYOCERA AVX serves as an alternative substitute when cross-manufacturer sourcing is required. This component meets all critical electrical and mechanical parameters and maintains active product status. The 208484024003025 provides an extended operating temperature range of -65°C to 125°C, exceeding the original specification. This part achieves ROHS3 compliance and carries REACH unaffected status. The 208484024003025 is suitable for applications where multi-source qualification or alternative supplier relationships are established.

Frequently Asked Questions (FAQ)

Q: Can the 5148384-5 be used as a direct replacement for the 148384-5?

A: Yes. The 5148384-5 is electrically and mechanically compatible with the 148384-5. Both components share identical connector type, position count, pitch, row configuration, mounting type, termination method, and operating temperature range. The 5148384-5 maintains active product status and is the recommended substitute.

Q: What is the difference between the 148384-5 and 5148384-5 contact finish specifications?

A: The 148384-5 specifies gold or gold-palladium contact finish, while the 5148384-5 specifies gold contact finish. Both finishes meet the electrical and mechanical requirements for backplane connector applications. The gold finish of the 5148384-5 is compatible with the original design requirements.

Q: Is the 208484024003025 from KYOCERA AVX compatible with the 148384-5?

A: Yes. The 208484024003025 meets all critical electrical and mechanical parameters required for substitution. The component shares identical connector type, position count, pitch, row configuration, mounting type, termination method, and flammability rating. The 208484024003025 provides an extended operating temperature range of -65°C to 125°C.

Q: What are the RoHS compliance differences between the substitute parts?

A: The 148384-5 is RoHS non-compliant. The 5148384-5 is RoHS compliant. The 208484024003025 is ROHS3 compliant. For applications requiring RoHS compliance, both the 5148384-5 and 208484024003025 are suitable substitutes.

Q: Are there any packaging differences between the substitute parts?

A: The 148384-5 packaging is not specified. The 5148384-5 is supplied in bulk packaging. The 208484024003025 packaging is not specified. Packaging differences do not affect electrical or mechanical compatibility.

Q: What is the current inventory status for substitute parts?

A: The 5148384-5 has 821 units in stock. The 208484024003025 has 1027 units in stock. Both parts maintain active product status with available inventory for immediate procurement.

Q: Can the 148384-5 be used in new designs, or should substitutes be specified?

A: The 148384-5 is classified as obsolete. For new designs, the 5148384-5 or 208484024003025 should be specified to ensure long-term supply chain support and compliance with current manufacturing standards.
