TE Connectivity AMP Connectors 1-480416-7 Equivalent & Substitute Parts

Part Overview

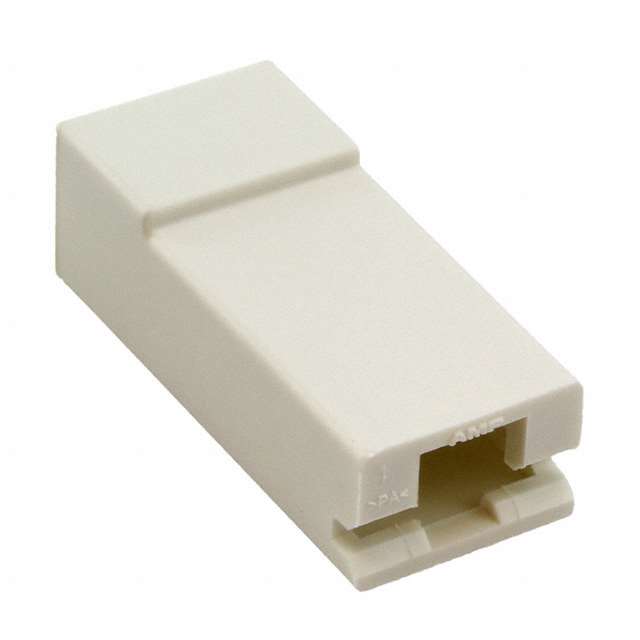

The TE Connectivity AMP Connectors 1-480416-7 is a 1 Position Housing Connector Female Receptacle in the Faston series, designed for 0.250" (6.35mm) Quick Connect/Disconnect applications. This connector features a natural polyamide (PA66) nylon 6/6 housing with free hanging in-line mounting capability.

The 1-480416-7 is classified as obsolete. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this connector housing.

Substiute Parts

1-480416-7

TE Connectivity AMP ConnectorsIn Stock: 10951-480416-7 Datasheet

Current PartRFQ

2-480416-5

TE Connectivity AMP ConnectorsIn Stock: 413342-480416-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-480416-7 is determined by strict equivalence across the following critical parameters:

Electrical & Mechanical Compatibility Parameters:

• Terminal Type: Quick Connect, Disconnect
• Gender: Female, Receptacle
• Terminal Size: 0.250" (6.35mm)
• Number of Positions: 1
• Mounting Type: Free Hanging (In-Line)

Material & Environmental Compliance Parameters:

• Housing Material: Polyamide (PA66), Nylon 6/6
• Color: Natural
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 2-480416-5 maintains identical specifications across all critical parameters, ensuring direct functional and mechanical compatibility. The primary distinction is product status: the 1-480416-7 is obsolete, while the 2-480416-5 is active with significantly higher inventory availability.

Parameter Comparison

Engineering Selection Recommendations

The 2-480416-5 is the direct equivalent substitute for the 1-480416-7. Both parts are manufactured by TE Connectivity AMP Connectors and maintain identical electrical, mechanical, and material specifications within the Faston series.

Selection Basis:

The 2-480416-5 is classified as an active product with substantially higher inventory availability (41,273 pieces versus 1,024 pieces). Both parts satisfy ROHS3 compliance and carry identical environmental ratings (MSL 1, Unlimited). The substitute part is suitable for direct replacement in all applications where the 1-480416-7 was originally specified.

The transition from the obsolete 1-480416-7 to the active 2-480416-5 ensures long-term supply chain continuity and supports ongoing procurement requirements without design modification.

Frequently Asked Questions (FAQ)

Q: Can the 2-480416-5 be used as a direct replacement for the 1-480416-7?

A: Yes. The 2-480416-5 is electrically and mechanically equivalent to the 1-480416-7. Both parts feature identical terminal type, gender, terminal size, number of positions, mounting type, material composition, and environmental ratings. Direct substitution is supported without design changes.

Q: What is the primary difference between these two parts?

A: The 1-480416-7 is classified as obsolete, while the 2-480416-5 is an active product. The 2-480416-5 offers significantly higher inventory availability and represents the current production equivalent within the Faston series.

Q: Are there packaging differences between the 1-480416-7 and 2-480416-5?

A: The 1-480416-7 packaging specification is not defined in the provided data. The 2-480416-5 is supplied in bulk packaging. Both parts are supplied as housings without contacts included.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the 1-480416-7 and 2-480416-5 are ROHS3 compliant with identical Moisture Sensitivity Level ratings (MSL 1, Unlimited). Both carry the same ECCN (EAR99) and HTSUS classification (8536.69.8000).

Q: What applications are these connectors suitable for?

A: These connectors are designed for use with 0.250" (6.35mm) Quick Connect/Disconnect applications. The female receptacle housing accommodates standard Faston quick-connect terminals in single-position configurations with free hanging in-line mounting.

Q: Are contacts included with these housing parts?

A: No. Both the 1-480416-7 and 2-480416-5 are supplied as housings only. Contacts are not included and must be sourced separately for complete connector assembly.
