TE Connectivity AMP Connectors 1-480416-1 Equivalent & Substitute Parts

Part Overview

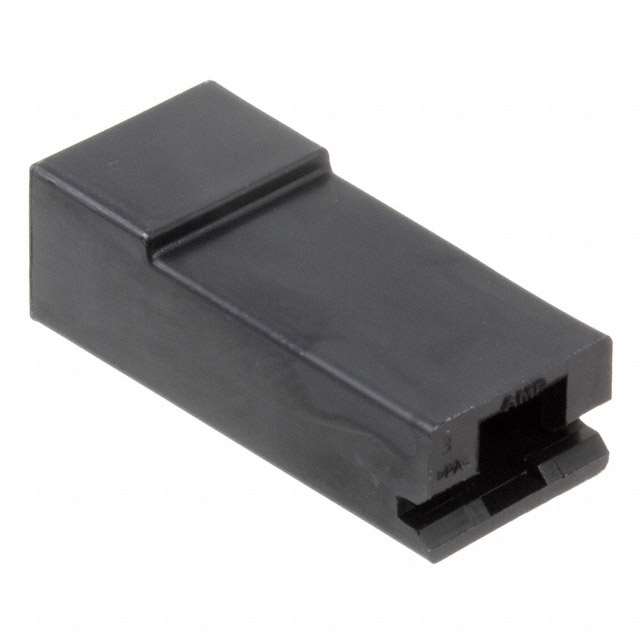

The TE Connectivity AMP Connectors 1-480416-1 is a 1 Position Housing Connector Female Receptacle in the Faston series, designed for 0.250" (6.35mm) Quick Connect/Disconnect applications. This connector features a black polyamide (PA66) nylon 6/6 housing and is classified as a free-hanging, in-line mounting terminal. The part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing maintenance, repair, and new design implementations where this connector type is specified.

Substiute Parts

1-480416-1

TE Connectivity AMP ConnectorsIn Stock: 8561-480416-1 Datasheet

Current PartRFQ

480416-2

TE Connectivity AMP ConnectorsIn Stock: 1045480416-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 1-480416-1 is determined by strict alignment of the following critical parameters:

Substitution Criteria:

• Terminal Type: Quick Connect, Disconnect
• Gender: Female, Receptacle
• Terminal Size: 0.250" (6.35mm)
• Number of Positions: 1
• Series Compatibility: Faston
• Material: Polyamide (PA66), Nylon 6/6
• Mounting Type: Free Hanging (In-Line)
• Color: Black
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 480416-2 shares the same base product number (480416) and maintains compatibility across all critical electrical and mechanical parameters. This part is manufactured by the same supplier and operates within the same environmental and performance specifications as the original component.

Parameter Comparison

Engineering Selection Recommendations

The 480416-2 serves as the direct functional equivalent to the obsolete 1-480416-1. Both components are manufactured by TE Connectivity AMP Connectors and maintain identical electrical and mechanical specifications for 0.250" (6.35mm) Faston Quick Connect/Disconnect applications.

Selection Basis:

The 480416-2 is classified as an active product, ensuring ongoing availability and supply chain continuity. Both parts maintain RoHS compliance and carry identical Moisture Sensitivity Level (MSL) ratings of 1 (Unlimited), indicating equivalent environmental performance characteristics. The substitute part is supplied in bulk packaging and shares the same ECCN classification (EAR99), confirming regulatory equivalence.

For applications currently specified with the 1-480416-1, the 480416-2 provides direct substitution without modification to connector interfaces, mating components, or system design parameters.

Frequently Asked Questions (FAQ)

Q: Can the 480416-2 directly replace the 1-480416-1 in existing applications?

A: Yes. Both components share identical terminal size (0.250" / 6.35mm), gender (Female Receptacle), position count (1), and mounting type (Free Hanging In-Line). The 480416-2 is manufactured by the same supplier and maintains all critical electrical and mechanical specifications required for direct substitution.

Q: What is the difference between the main part number and the substitute?

A: The 1-480416-1 is classified as obsolete, while the 480416-2 is an active product. Both share the same base product number (480416) and are functionally equivalent. The primary distinction is product status and supply availability.

Q: Are there packaging differences between these parts?

A: The 1-480416-1 packaging specification is not provided in the available data. The 480416-2 is supplied in bulk packaging. Packaging format does not affect electrical or mechanical compatibility.

Q: Do both parts meet the same compliance standards?

A: Both components carry RoHS Compliant status and share identical ECCN classifications (EAR99). Moisture Sensitivity Level ratings are identical at MSL 1 (Unlimited), confirming equivalent environmental performance.

Q: Are contacts included with these housing connectors?

A: No. Both the 1-480416-1 and 480416-2 are housing components supplied without contacts. Contacts must be sourced separately for 0.250" (6.35mm) Quick Connect applications.

Q: What is the current inventory status?

A: The 1-480416-1 has 836 pieces in stock (obsolete status). The 480416-2 has 1004 pieces in stock (active status). For new designs and ongoing applications, the 480416-2 is the recommended selection due to active product classification.
