TE Connectivity AMP Connectors 147278-8 Equivalent & Substitute Parts

Part Overview

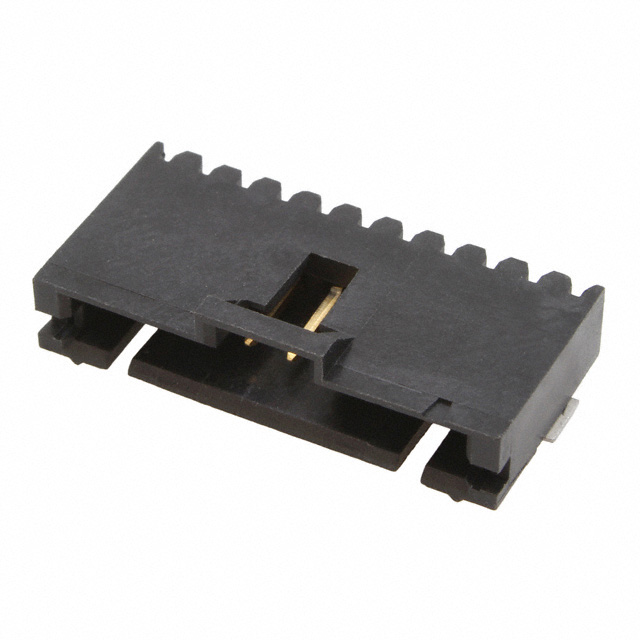

The TE Connectivity AMP Connectors 147278-8 is a rectangular connector header designed for surface mount applications. This shrouded, right-angle 9-position connector operates at 0.100" (2.54mm) pitch and is rated for 3A current. The part is classified as Active product status and serves applications in automotive, general purpose, medical, and telecommunications industries. Substitute parts are identified to address specific mounting type requirements, compliance variations, and inventory availability while maintaining core electrical and mechanical compatibility.

Substiute Parts

147278-8

TE Connectivity AMP ConnectorsIn Stock: 737147278-8 Datasheet

Current PartRFQ

5-103634-8

TE Connectivity AMP ConnectorsIn Stock: 135905-103634-8 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution between the main part 147278-8 and the identified substitute 5-103634-8 is based on the following core parameters that remain constant across both parts:

Matching Parameters (Substitution Basis):

• Connector Type: Header
• Contact Type: Male Pin
• Number of Positions: 9
• Number of Rows: 1
• Pitch - Mating: 0.100" (2.54mm)
• Shrouding: Shrouded - 4 Wall
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: 0.230" (5.84mm)
• Insulation Height: 0.200" (5.08mm)
• Contact Shape: Square
• Contact Material: Brass
• Insulation Material: Thermoplastic
• Operating Temperature: -65°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating: 3A
• Series: AMPMODU MTE
• Product Status: Active
• Applications: Automotive, General Purpose, Medical, Telecommunications

Differentiating Parameters:

• Mounting Type: Surface Mount, Right Angle (147278-8) versus Through Hole, Right Angle (5-103634-8)
• Contact Finish - Mating: Gold (147278-8) versus Tin (5-103634-8)
• Contact Finish Thickness - Mating: 15.0µin (147278-8) versus 100.0µin (5-103634-8)
• Contact Finish - Post: Tin-Lead (147278-8) versus Tin (5-103634-8)
• RoHS Status: RoHS non-compliant (147278-8) versus RoHS Compliant (5-103634-8)
• Features: Board Lock, Keying Slot, Solder Retention (147278-8) versus Keying Slot (5-103634-8)

Parameter Comparison

Engineering Selection Recommendations

Part 147278-8 (Surface Mount Configuration): Select this part for applications requiring surface mount assembly on printed circuit boards. This configuration is suitable for high-density PCB layouts where through-hole mounting is not feasible. The gold-plated mating contacts provide enhanced corrosion resistance. The RoHS non-compliant status indicates this part contains lead-based solder finish and is suitable for applications without RoHS restrictions.

Part 5-103634-8 (Through Hole Configuration): Select this part for applications requiring through-hole mounting on printed circuit boards. This configuration provides mechanical stability through post insertion into PCB vias. The RoHS Compliant status indicates lead-free composition, making this part suitable for applications subject to RoHS regulations. The tin-plated mating contacts meet standard through-hole connector specifications.

Compliance Considerations: The choice between these parts depends on regulatory requirements and assembly methodology. Applications requiring RoHS compliance must use part 5-103634-8. Applications with lead-based solder restrictions or environmental regulations must also use the RoHS-compliant substitute. Both parts maintain identical electrical performance, current rating, temperature range, and flammability certification.

Frequently Asked Questions (FAQ)

Q: Can part 5-103634-8 be used as a direct replacement for 147278-8 in surface mount applications?

A: No. Part 5-103634-8 is configured for through-hole mounting, while 147278-8 is designed for surface mount assembly. The mounting type difference requires different PCB design and assembly processes. Substitution is only valid when the application can accommodate through-hole mounting.

Q: What is the primary difference between these two connector parts?

A: The primary difference is the mounting type. Part 147278-8 uses surface mount technology with solder pads on the PCB surface. Part 5-103634-8 uses through-hole technology with leads inserted through PCB vias. Both parts share identical electrical specifications, pitch, position count, and shrouding design.

Q: Are the contact finishes interchangeable between these parts?

A: The contact finishes differ between the parts. Part 147278-8 features gold-plated mating contacts with tin-lead post finish. Part 5-103634-8 features tin-plated mating contacts with tin post finish. Both finishes are suitable for their respective mounting types and provide adequate electrical performance for the 3A current rating.

Q: Which part should be selected for RoHS-compliant applications?

A: Part 5-103634-8 is RoHS Compliant and must be used for applications subject to RoHS regulations. Part 147278-8 is RoHS non-compliant due to lead-based solder finish and is not suitable for RoHS-restricted applications.

Q: Do both parts operate within the same temperature range?

A: Yes. Both parts operate within the identical temperature range of -65°C to 105°C and maintain the same UL94 V-0 flammability rating, ensuring equivalent thermal performance across both mounting configurations.

Q: What is the packaging difference between these parts?

A: Part 147278-8 packaging is not specified in the provided data. Part 5-103634-8 is supplied in Tube packaging. Packaging differences do not affect electrical or mechanical compatibility; they relate only to order quantity and storage considerations.

Q: Can these parts be used interchangeably in medical applications?

A: Both parts are rated for medical applications. However, substitution depends on the specific PCB design and assembly method. Surface mount applications require part 147278-8, while through-hole applications require part 5-103634-8. The application's mounting methodology determines which part is appropriate.

Q: Are the mechanical dimensions identical between these parts?

A: The mating contact length (0.230" / 5.84mm) and insulation height (0.200" / 5.08mm) are identical. Part 5-103634-8 specifies a contact post length of 0.130" (3.30mm), which is not specified for part 147278-8. The mechanical compatibility depends on the specific PCB design and mounting requirements.
