Equivalent & Substitute Parts for TE Connectivity 1470364-5

Part Overview

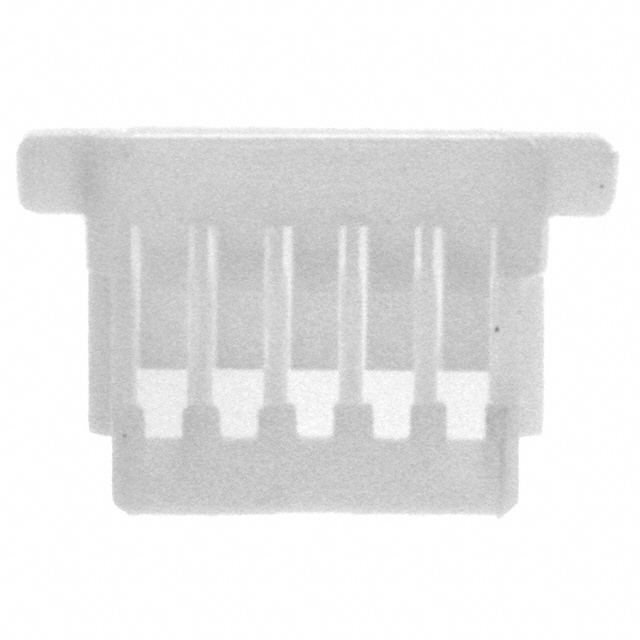

The TE Connectivity 1470364-5 is a 5-position rectangular connector receptacle housing with 1.00mm pitch, designed for high-performance interconnect applications. This component features a female socket contact type, free-hanging in-line mounting, and crimp termination. The part is designated as Last Time Buy, indicating discontinued production status. Identification of equivalent substitute parts is necessary to ensure design continuity and procurement availability for applications currently utilizing this connector housing.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	5
Pitch	0.039" (1.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 1470364-5 are qualified based on matching the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (5), pitch (1.00mm), number of rows (1), mounting type (free hanging in-line), and contact termination method (crimp). These parameters define the mechanical and electrical interface compatibility with mating components and assembly processes.

The identified substitute parts—JST SHR-05V-S and JST SHR-05V-S-B—satisfy all core substitution criteria. Both parts are 5-position receptacle housings with 1.00mm pitch, female socket contacts, and crimp termination in free-hanging in-line configuration. Differences in insulation material (PBT versus thermoplastic), color (natural versus white), and operating temperature range represent design variations within the same functional category but do not prevent substitution where mechanical and electrical interface requirements are met.

Parameter Comparison

Parameter	TE Connectivity 1470364-5	JST SHR-05V-S	JST SHR-05V-S-B
Manufacturer	TE Connectivity AMP Connectors	JST Sales America Inc.	JST Sales America Inc.
Connector Type	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	5	5	5
Pitch	0.039" (1.00mm)	0.039" (1.00mm)	0.039" (1.00mm)
Number of Rows	1	1	1
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Insulation Material	Thermoplastic	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Color	White	Natural	Natural
Operating Temperature	-55°C ~ 105°C	-25°C ~ 85°C	-25°C ~ 85°C
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS	8538.90.6000	8538.90.6000	8538.90.6000
Product Status	Last Time Buy	Active	Active

Engineering Selection Recommendations

The TE Connectivity 1470364-5 is designated Last Time Buy, indicating end-of-life status. Both JST substitute parts—SHR-05V-S and SHR-05V-S-B—are in Active product status with established supply availability.

For applications requiring extended operating temperature range (-55°C to 105°C), the TE Connectivity 1470364-5 provides superior thermal performance compared to the JST alternatives, which operate within -25°C to 85°C. Applications operating within the JST temperature range may proceed with substitution without thermal derating.

Both JST parts maintain RoHS3 compliance and MSL Level 1 (unlimited moisture sensitivity), ensuring regulatory and environmental compatibility. The JST SHR-05V-S and SHR-05V-S-B are functionally equivalent for mechanical and electrical interface purposes, with the primary distinction being insulation material composition (PBT versus thermoplastic) and housing color (natural versus white).

Frequently Asked Questions (FAQ)

Q: Can the JST SHR-05V-S or SHR-05V-S-B directly replace the TE Connectivity 1470364-5 in existing designs?

A: Yes, both JST parts satisfy the core substitution criteria: 5-position receptacle housing, 1.00mm pitch, female socket contacts, crimp termination, and free-hanging in-line mounting. Mechanical and electrical interface compatibility is maintained. Applications must verify operating temperature requirements fall within the JST range of -25°C to 85°C.

Q: What is the difference between JST SHR-05V-S and JST SHR-05V-S-B?

A: Both parts are functionally identical in electrical and mechanical specifications. The designation difference reflects internal JST product classification. Both feature PBT insulation material, natural color housing, and identical operating temperature range. Inventory availability and lead times may differ between the two part numbers.

Q: Are there any compliance or regulatory differences between the TE and JST parts?

A: All three parts are RoHS compliant (TE Connectivity is RoHS Compliant; JST parts are ROHS3 Compliant), MSL Level 1, and classified under ECCN EAR99 and HTSUS 8538.90.6000. The JST parts carry REACH Unaffected status, while TE Connectivity status is Vendor Undefined. No regulatory barriers exist for substitution.

Q: Does the color difference (white versus natural) affect functionality?

A: Color is a cosmetic parameter and does not affect electrical or mechanical performance. Selection between white (TE Connectivity) and natural (JST) housings depends on application aesthetics or assembly identification requirements only.

Q: What should be considered when substituting due to the TE part's Last Time Buy status?

A: The TE Connectivity 1470364-5 is end-of-life. Designs currently using this part should transition to JST SHR-05V-S or SHR-05V-S-B for long-term supply security. Both JST parts are in Active status with established manufacturing and distribution channels. Existing inventory of the TE part should be evaluated against project timelines and future production requirements.
